Lifting Capacity 6,210 lbs.
Crane Weight 4,765 lbs.
Max Lifting Height 28.54 ft.
Max Working Radius 26.9 ft.
MAEDA MC285C-2
Maeda MC285C-2 Mini Crawler Crane — Product Description
The Maeda MC285C-2 is a compact yet highly capable mini crawler crane engineered to deliver impressive lifting power in confined and restricted access environments. Built with a slim body profile and advanced stability systems, this crane excels where larger machines simply won’t fit — making it a top choice for specialty contractors, industrial maintenance, and construction professionals.
Despite its narrow transport width, the MC285C-2 offers a robust 2.82-ton maximum lifting capacity and a reach that lets you position loads with precision in tight spaces. Its 360° continuous rotation and programmable safety systems give operators confidence and control during complex picks, while multiple power options ensure the machine adapts to indoor or outdoor jobsite demands.
What It’s Ideal For
The MC285C-2 thrives in projects where access is limited and performance is required:
Interior construction and renovation lifts
Glass, curtain wall, and façade installation
Mechanical, HVAC, and equipment placement
Industrial facility maintenance
Confined exterior or courtyard jobs
Underground work with specialized rigging
Why Contractors Choose the MC285C-2
Slim body — fits through narrow doorways and between obstacles
2.82-ton lifting capacity with high stability and precision
360° continuous slew with remote control operation
Programmable moment limiter and safety interlocks
Multiple power options — including electric for low-emission environments
Robust boom system with optional searcher hook or auxiliary winch
Built for both power and accessibility, the Maeda MC285C-2 is a versatile crane that brings high performance into spaces where traditional equipment can’t operate — making it a go-to solution for challenging picks and confined lifting tasks.
-
Lifting & Performance
Maximum Rated Lifting Capacity: ~6,210 lbs @ ~4.5 ft radius
Searcher Hook Capacity (optional): ~1,870 lbs
Auxiliary Winch Capacity (optional): ~1,980 lbs
Rotation: 360° continuous
Reach & Height
Maximum Working Height (main boom): ~28.5 ft
Maximum Boom Tip Height (with searcher hook): ~31.8 ft
Maximum Working Radius: ~26.9 ft

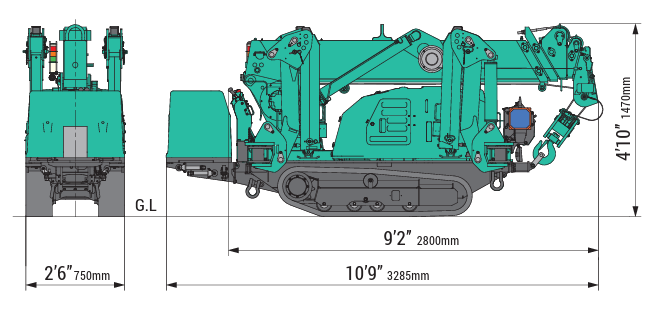

Dimensions & Footprint
Transport Width: ~2 ft 6 in (30 in)
Overall Length: ~9 ft 1 in – 10 ft 9 in (configuration dependent)
Overall Height: ~4 ft 10 in

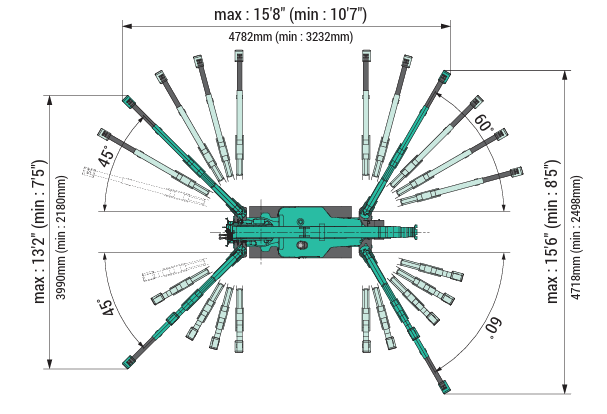

Outrigger Footprint (extended): ~15 ft 8 in × 15 ft 6 in × 13 ft 1 in
Weight
Operating Weight:
~4,390 lbs (diesel)
~4,765 lbs (diesel + electric)
Power & Control
Engine: Diesel industrial engine (Tier 4 compliant)
Dual Power Option: Electric motor available (208–230V)
Controls: Radio remote with digital load and capacity display
Safety Systems: Load moment limiter, tilt alarm, outrigger interlock, data logging
