The first question on an indoor lift is often whether the machine will fit through the door. Compare the crane's transport dimensions with the measured clear opening at the narrowest point on the route. The table below compares models and identifies the manufacturer sheets available for comparison. It is not a promise that a nominal door size admits a particular machine.

01The four doors that matter

Check each opening type along the route: a single interior door, a commercial door, a double-door pair and the loading-bay rollup. Nominal door dimensions do not equal clear openings. Stops, hinges, closers, mullions and the raised curtain can reduce clearance. Measure the actual opening and confirm whether any removable hardware can be taken out with the building's permission.

Machine	Width	Stowed height	Single door	Commercial door	Double doors	Rollup	Capacity	Power
Jekko MPK06.2	2′ 9″	4′ 10″	Measure	Measure	Measure	Measure	1,320 lb	Battery
Jekko SPX328EVO	2′ 5″	5′ 3″	Measure	Measure	Measure	Measure	5,950 lb	Battery
Maeda MC285C-2	2′ 6″	4′ 10″	Measure	Measure	Measure	Measure	6,210 lb	Confirm unit
Jekko SPX509.2	2′ 6″	-	Measure	Measure	Measure	Measure	1,950 lb derate rating	Battery
Jekko SPX532.2	2′ 6″	6′ 6″	Measure	Measure	Measure	Measure	5,950 lb	Battery
Jekko MPK10.2	3′ 2″	4′ 11″	Measure	Measure	Measure	Measure	2,160 lb	Battery
Jekko SPX527	43¼ in	77⅛ in	Measure	Measure	Measure	Measure	5,940 lb	Diesel
Jekko MPK20.2	3′ 11″	5′ 0″	Measure	Measure	Measure	Measure	4,400 lb	Battery
Jekko MPK50	46⅞ in	68½ in	Measure	Measure	Measure	Measure	11,000 lb	Battery
Jekko SPX650	3′ 4″	6′ 10″	Measure	Measure	Measure	Measure	11,020 lb	Battery CL-2
Maeda MC305	-	-	Measure	Measure	Measure	Measure	-	Confirm unit
Maeda MC405	-	-	Measure	Measure	Measure	Measure	-	Confirm unit
Broderson IC-35	-	6′ 6″	Measure	Measure	Measure	Measure	8,000 lb	Confirm unit
Broderson IC-40	5′ 4″	6′ 8″	Measure	Measure	Measure	Measure	9,000 lb	Confirm unit
Jekko SPX1280	4′ 9″	6′ 9″ (CL3)	Measure	Measure	Measure	Measure	17,637 lb	Battery CL3
Broderson IC-80	6′ 6″	7′ 3″	Measure	Measure	Measure	Measure	18,000 lb	Confirm unit

Dimensions are from the named manufacturer sheets listed below, in the stated transport or closed-track configuration. A dash means the figure is not established for the exact model here. Every opening cell requires measurement; no automatic pass is inferred from a nominal door size. Confirm the delivered unit, attachments, clearances and swept route with CLE. Capacity is a headline rating only, except the SPX509.2's owner-confirmed derate ceiling pending its own sheet.

Single interior doors

For a narrow single opening, start by comparing the SPX328EVO, Maeda MC285C-2 and SPX509.2 transport dimensions with the actual clear width and height. The MPK06.2 is another compact option, but its technical data prints a 2 ft 9 in width. Door hardware, the next turn, thresholds and the route's floor loading can rule out a machine that appears to fit at the first opening.

2′ 5″SPX328 CL width

5,950 lbSPX328EVO capacity

4′ 10″MC285C-2 height

Measure routeactual openings and turns

Commercial doors

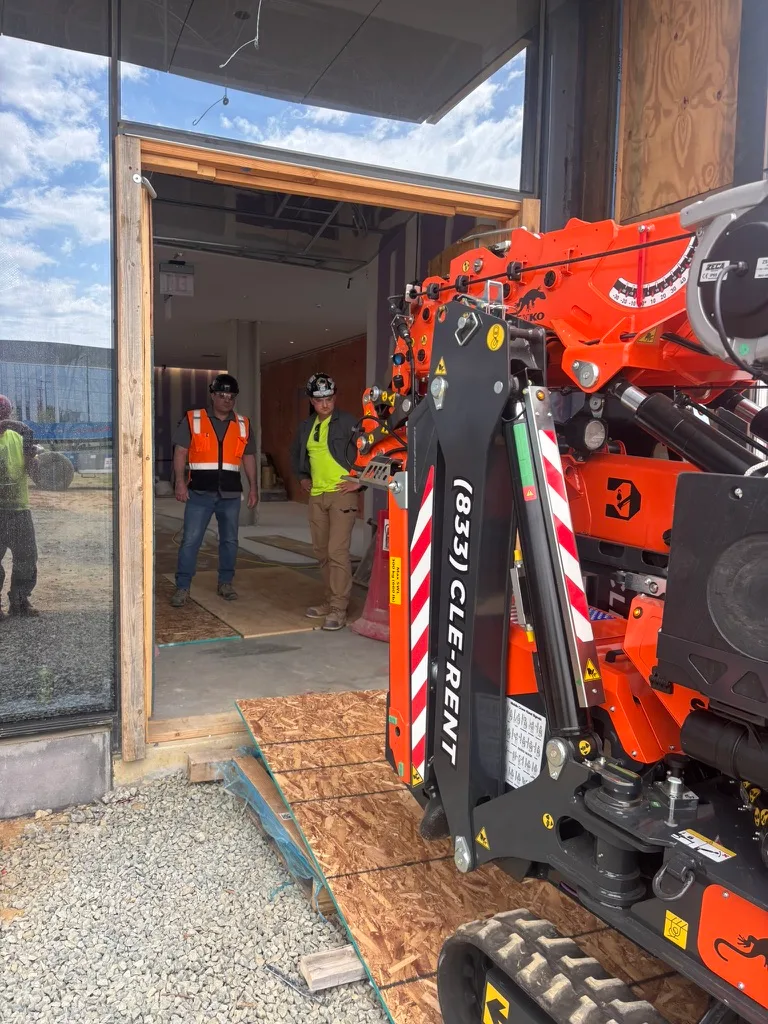

A commercial opening may admit more compact machines, but the label on the door is not a measurement. Compare the SPX509.2 and SPX532.2 with the frame, closer and approach. Confirm the available turning room and the power configuration needed for occupied indoor work; machine access and indoor suitability are separate checks.

Double-door openings

A double door with an approved removable mullion may open the route to the MPK10.2, SPX527, MPK20.2, MPK50 or SPX650. Their dimensions and operating requirements differ. The SPX650 CL-2 sheet prints 3 ft 4 in closed-track width and 6 ft 10 in height. Measure both axes and the approach rather than assuming a pair of doors admits every machine in this group.

Width is the first check, not the only one. A machine that fits the measured opening still has to make the turn beyond it and clear the closer overhead. Walk the whole route with the access checklist.

Loading-bay rollups

At a loading bay, compare the MC305, MC405, Broderson IC-35, IC-40, IC-80 and SPX1280 against the measured opening and turn into the aisle. Cab, boom rest, accessories and transport configuration affect the envelope. Confirm any unresolved model or configuration before using a dimension for access planning.

06What else has to clear

Height under the head and closer. Measure to the lowest obstruction and compare with the actual transport configuration, including boom rest, cab and accessories.
The threshold and ramp. Check the machine travel limits, approach geometry and load rating of any proposed ramp or dock plate.
The turn. Check the entire swept path, not just the width of each corridor; length and turning geometry matter.
The floor. Getting through the door onto a suspended slab is a structural question, not an access one. Bring the machine weight and pad reactions.
The elevator. Check the car dimensions, door opening and rated load with the elevator authority. Include the configured machine, people, attachments and all other carried loads.

Check the complete route

Measure the clear width between the door stops, the clear height under the head, and note the tightest point on the route. Put those numbers into the Fit Check tool for preliminary screening only. Its stored dimensions do not confirm access for the delivered unit. Check the exact machine's current manufacturer dimensions, configuration, required clearances and complete route with CLE before booking; a tool pass is not access approval. Send photos of the opening and approach with the quote request.

Not sure your door is wide enough?Send the door width, the height, and a photo of the route. We'll confirm which machine clears it, and what it lifts once it's inside.

Request a Quote See the Jekko mini cranes

KEEP READING

PLANNING TOOLFit Check: will it pass your narrowest opening?Read →LIFT PLANNINGJobsite access checklist for mini crane rentalsExplore →

Manufacturer sources and configuration notes

Jekko SPX328 CL 5950 lb TD REV3.2, 19 January 2026, p 6 (transport width, height and headline capacity); pp 13 and 32 (base and EVO-KIT stability selection).

Jekko SPX532.2 TD REV0.4, 24 September 2025, p 9 (CL-2 dimensions and headline capacity); p 16 (stability selection).

Jekko SPX650 TD REV2.0, 9 May 2025, p 9 (CL-2 dimensions and headline capacity); p 16 (stability selection). CLE unit variant and later revision remain to be confirmed.

Jekko SPX1280 TD Rev.8, 19 January 2023, p 5 (CL3 dimensions and headline capacity); p 9 (counterweight-dependent stability selection).

Jekko MPK06.2 TD REV4.0, 23 January 2026, p 6 (dimensions and headline capacity).

Jekko MPK10.2 TD REV2.0, 28 January 2026, p 6 (dimensions and 2,160 lb spec-line capacity).

Jekko MPK20.2 TD REV3.0, 18 February 2026, p 5 (dimensions and headline capacity).

Jekko SPX527CDH-2 TD Rev.1, 22 February 2018, p 4 (43¼ in width and 77⅛ in transport height); p 5 (5,940 lb static lifting capacity).

Jekko MPK50 TD Rev.5, 11 October 2016, p 5 (46⅞ in width and 68½ in height, printed beside metric dimensions); p 1 (11,000 lb capacity). No maximum reach is inferred.

SPX509.2: 1,950 lb owner-confirmed derate ceiling, pending its own technical data sheet from Fascan. Width 2 ft 6 in agrees between the related SPX509 Rev0.11, 13 October 2023, p 6, and SPX532.2 REV0.4, 24 September 2025, p 9. Height remains unconfirmed.

Maeda MC285C-2 Technical Data, copyright 2017, no numbered revision, p 1: 2 ft 6 in width, 4 ft 10 in height and 6,210 lb headline capacity. MC305 and MC405 figures are omitted: the fleet generations remain unconfirmed, and the held similarly named sheets describe C-5 machines.

Broderson IC-35-2A Form HC192 (11/92), p 3: 6 ft 6 in height and 8,000 lb chart maximum; overall width remains unconfirmed. IC-40-2C Form JC112C (11/12), p 1: 5 ft 4 in width, 6 ft 8 in height and 9,000 lb capacity. IC-80-G Form CD103G, July 2003, p 1: 6 ft 6 in width, 7 ft 3 in height and 18,000 lb capacity. Confirm each delivered crane series and configuration against its plate.
