Lift Plan Calculator
Plan with precision. Lift with confidence.PRELIMINARY PLANNING TOOL: NOT A CERTIFIED LIFT PLAN
01MACHINE & SETUP
UNITS
SELECT MACHINE
03LIFT GEOMETRY
Boom configuration · hydraulic jib
Main boom length (pivot to boom head)9 ft
Main boom angle45°
WORKING RADIUS 6 ftLIFT HEIGHT 10 ft
Cable drop (winch payout)2 ft / 262 ft rope
04LOAD
Load weight500 lb
Load width1 ft
Load height1 ft
05STRUCTURE / OBSTRUCTION
Adjacent structure
Structure distance14 ft
Structure height12 ft
Structure width8 ft
Ceiling / overhead limit
JEKKO SPX532
CRANE CONFIGURATION
MachineSPX532
Boom ConfigMain Boom Only
Working Radius6 ft
Lift Height10 ft
Load500 lb
Cable Drop2 ft
RATED CAPACITY @ 6 ft
5,950 lb9%
Gross Chart Capacity5,950 lb
Hook Block (4T-D8 block)− 70 lb
Rigging Deduction− 40 lb
Attachment Deduction− 0 lb
NET ALLOWABLE LOAD5,840 lb
Entered Load500 lb
REMAINING CAPACITY5,340 lb
UTILIZATION9%
Preliminary dimensional fit based on the inputs provided. Confirm all doorways, aisles, ceilings, floor-loading, and setup-area dimensions at the jobsite, and verify against CLE's rated load chart for this fleet unit, before delivery.▣ Save Plan
+Attachment & material handlingOPTIONAL · EXPAND
ON THE HOOK · ATTACHMENT & MATERIAL HANDLINGWhat's actually being lifted?A crane's chart isn't your material capacity. Pick how you'll handle the load: the engine deducts the attachment, adapter, rigging and hook block, then shows the material weight you can actually lift on JEKKO SPX532 · 6 ft radius (500 lb entered). Only equipment CLE can supply is listed.
WITHIN CAPACITY
Estimated material capacity remaining exceeds the load, subject to field verification.MATERIAL LEFT
5,840 lb
CHART @ RADIUS
5,950 lb
ATTACHMENT RATED
—
SUSPENDED LOADType A: below-the-hook (deducted from crane chart)
Material500 lb
Standard hook + rigging0 lb
Rigging40 lb
Hook block / assembly70 lb
Total suspended load610 lb
CAPACITY UTILIZATION9%
Governing · Crane capacity at 6 ft, after attachment + rigging + hook
Governed by the crane chart and your rigging. Enter the rigging weight.
HOW WILL YOU HANDLE IT?

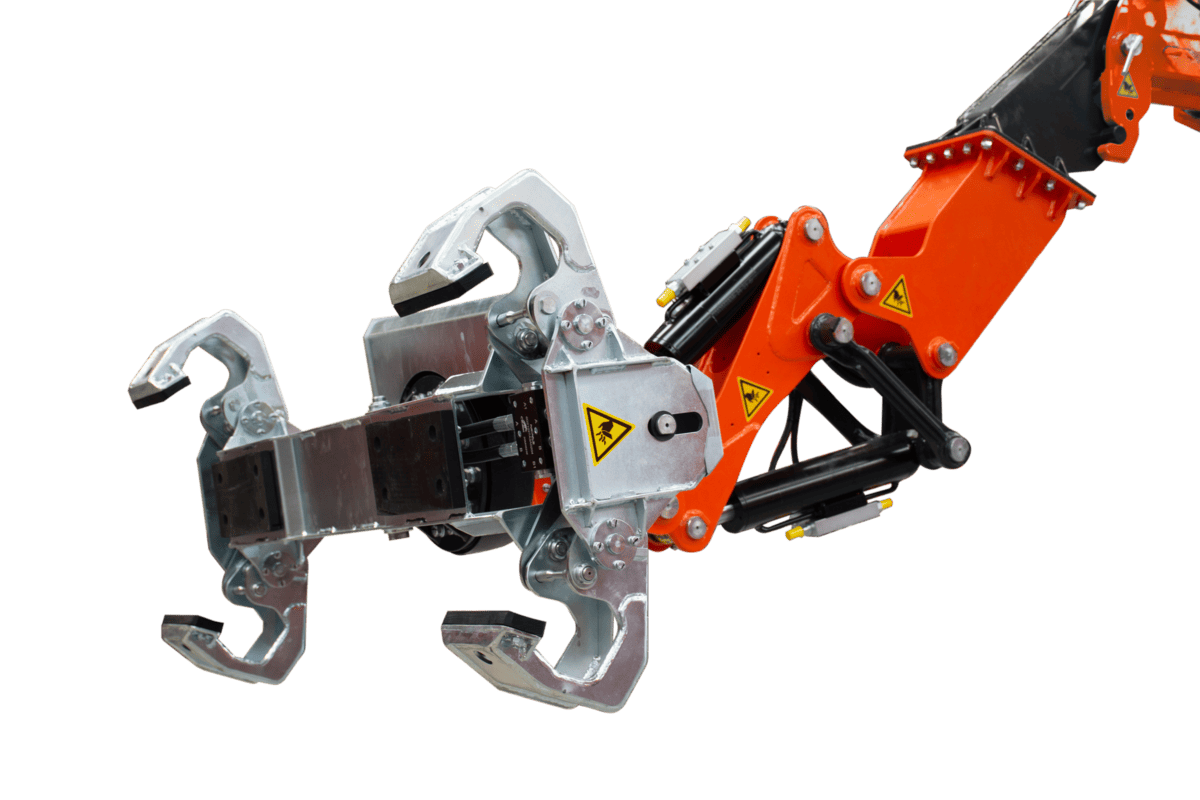

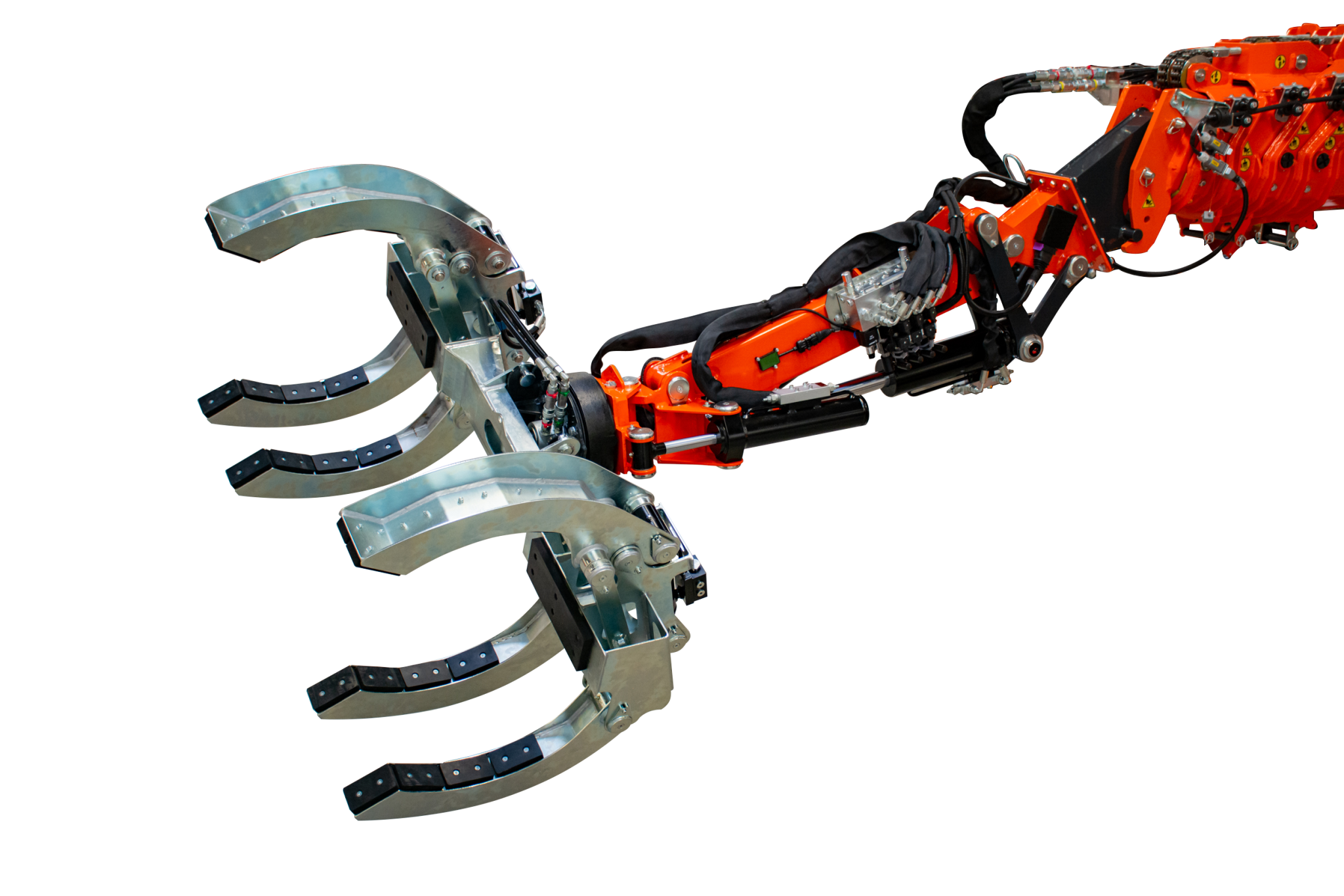

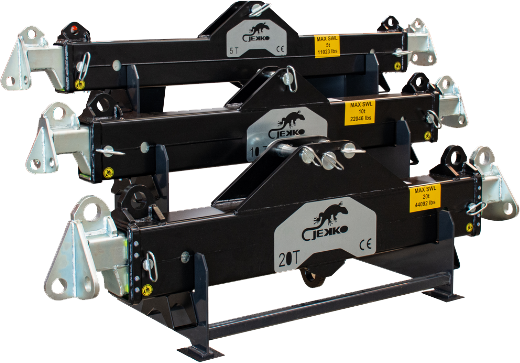

JEKKO ATTACHMENTS
RIGGING

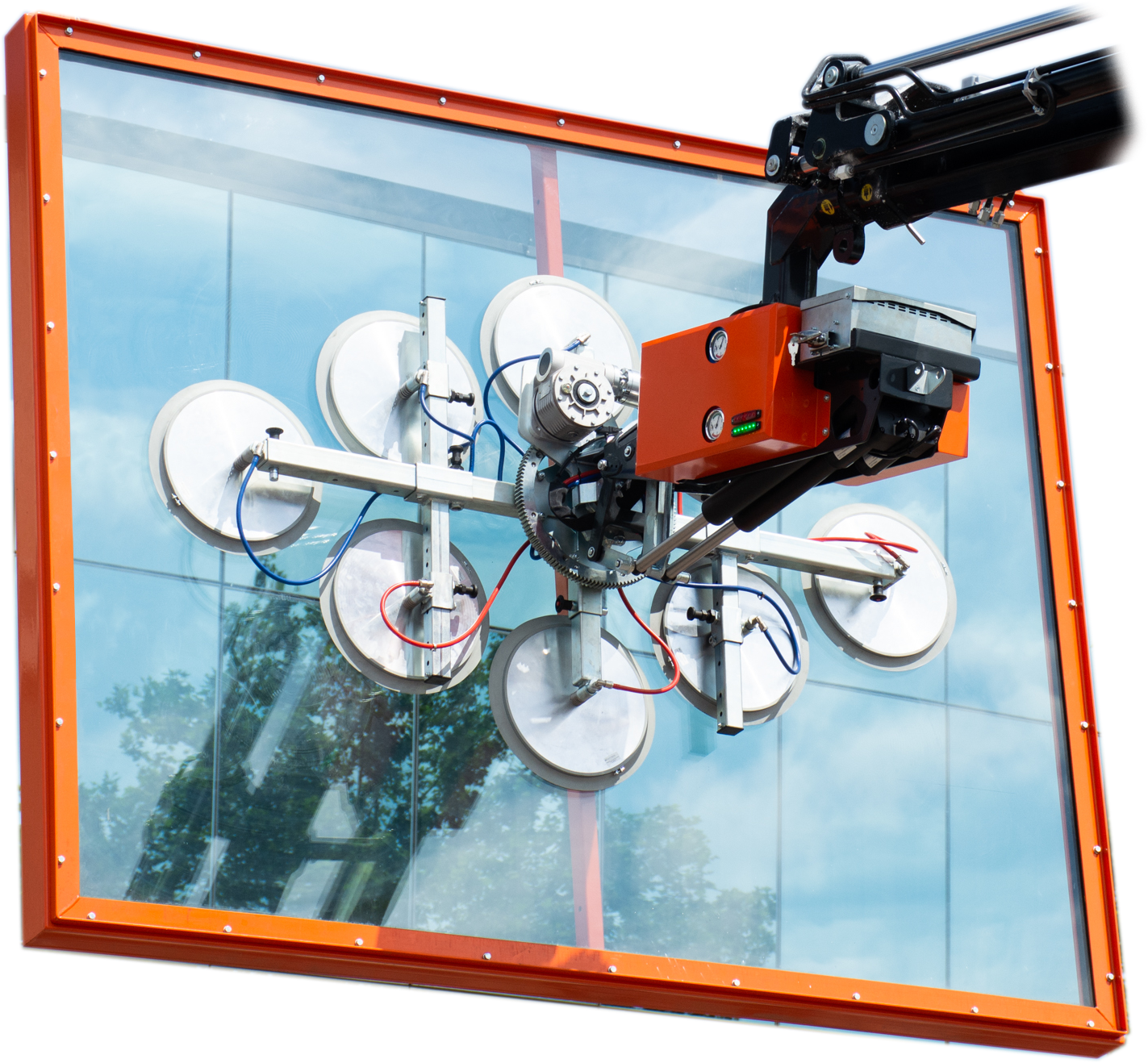

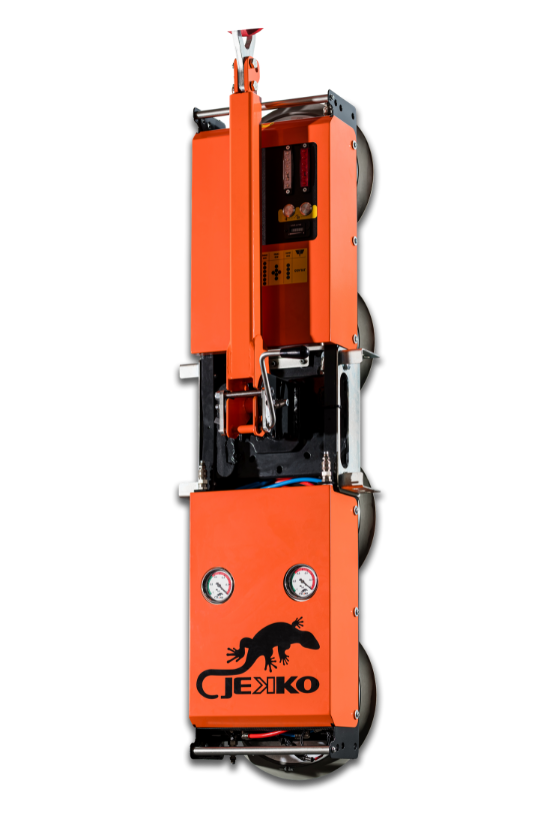

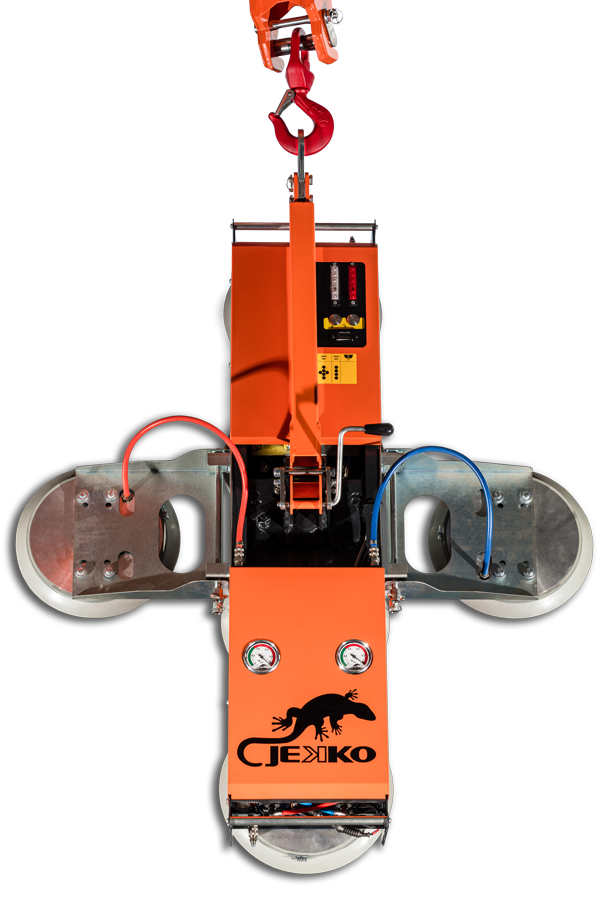

GLASS / PRESET DEVICES
CUSTOM
Not sure which machine fits your project?Send us your load weight, required radius, hook height, and jobsite photos. Our team will review the application and recommend the correct equipment.
(833) CLE-RENT · [email protected]
401 W. High Street, Pottstown, PA 19464
Lift Plan Screening Report
SPX532 · Main Boom Only · Standard hook + rigging
Jekko Load Charts: SPX532 · REV0.4 (24.09.2025), lower of chart sets C56 and C1
NO SCALE DRAWING WAS CAPTURED FOR THIS REPORT. GENERATE IT WITH THE TOOL'S PRINT / PDF BUTTON SO THE DRAWING IS INCLUDED.
Lift Configuration
OutriggersJ7
TracksStandard · 1090 mm
Main boom length (pivot to boom head)9 ft
Working radius6 ft
Lift height10 ft
Main boom angle45°
Cable drop2 ft
Load500 lb
Load size (width × height)1 ft × 1 ft
Rated Capacity Breakdown
Gross chart capacity5,950 lb
Hook block (4T-D8 block)− 70 lb
Rigging− 40 lb
Attachment− 0 lb
Net allowable load5,840 lb
Entered load500 lb
Remaining capacity5,340 lb
Utilization9%
GO
Lift is within all operating limits.
Fit Checks
Capacity✓ 5,840 lb net allowable vs 500 lb load
Reach & height✓ Within 7 ft radius / 39 ft height
Structure clearance✓ Structure clear of the lift path
Overhead / ceiling✓ Ceiling check off
Setup & stability✓ Outriggers set for the current configuration
Preliminary lift screening generated with the CLE Lift Plan Calculator from published manufacturer chart data. Chart interpolation, site conditions, rigging weights, and ground support are not verified by this tool. A certified lift plan and on-site verification by qualified personnel are required before any pick.
GENERATED BY THE CLE PLANNING TOOLS · CLEAMERICA.COM · PRELIMINARY PLANNING DOCUMENT - NOT A CERTIFIED LIFT PLAN · VERIFY WITH CLE BEFORE MOBILIZATION
