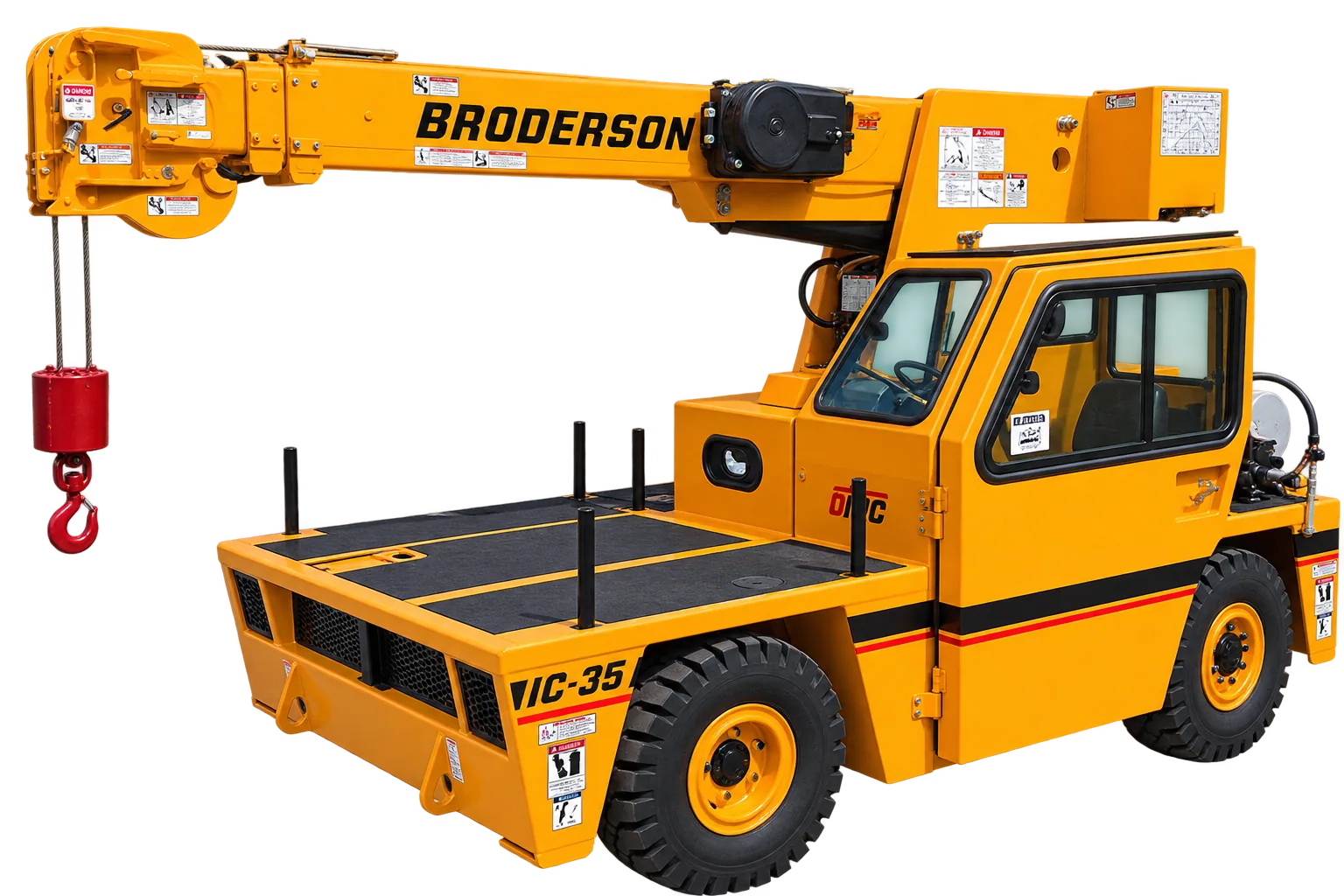

IC-35-2A
Diesel
- CAPACITY
- 8,000 lb
- MAX HEIGHT
- 33′ 6″
- MAX REACH
- 27′
- WEIGHT · POWER
- 7,100 lbs · Gas/Diesel
WIDTH · 5′ 0″
RENT + BUY · 3 MODELS · BRODERSON
Carry deck crane
rental + sales.
Broderson industrial cranes built for plant and warehouse work: pick a load, carry it across the floor, and set it, all with one machine. Low-profile decks clear plant doorways, and dual-fuel engines work indoors and out.
CAP TO 18,000 LBSHOOK HEIGHT TO 46′ 4″PICK & CARRYLOW-PROFILE · 4WS
The machinesEVERY PICK VERIFIED AGAINST THE LOAD CHART + SITE ACCESS
RENT OR BUY
Two ways to get the machine.
RENT · DAILY / WEEKLY / MONTHLYRent it
Plant shutdowns, rigging jobs, and short-term floor work. Bare rental, delivered and picked up from Pottstown, PA.
BUY · NEW + FLEET UNITSBuy it
Broderson units for permanent plant duty. Third-party financing available, and rental credit can apply toward purchase.
Need a crane on the plant floor?
Send the load weight, clearances, and dates; we verify the pick and quote delivery with the machine.
FAQ
Carry deck crane questions
Capacity vs. radius, pick-and-carry rules, deck loads, and indoor use.
What is a carry deck crane?+
A compact, self-propelled industrial crane with a rotating boom and a flat deck for moving materials around a jobsite. Common inside plants, factories, mechanical rooms, and industrial facilities.

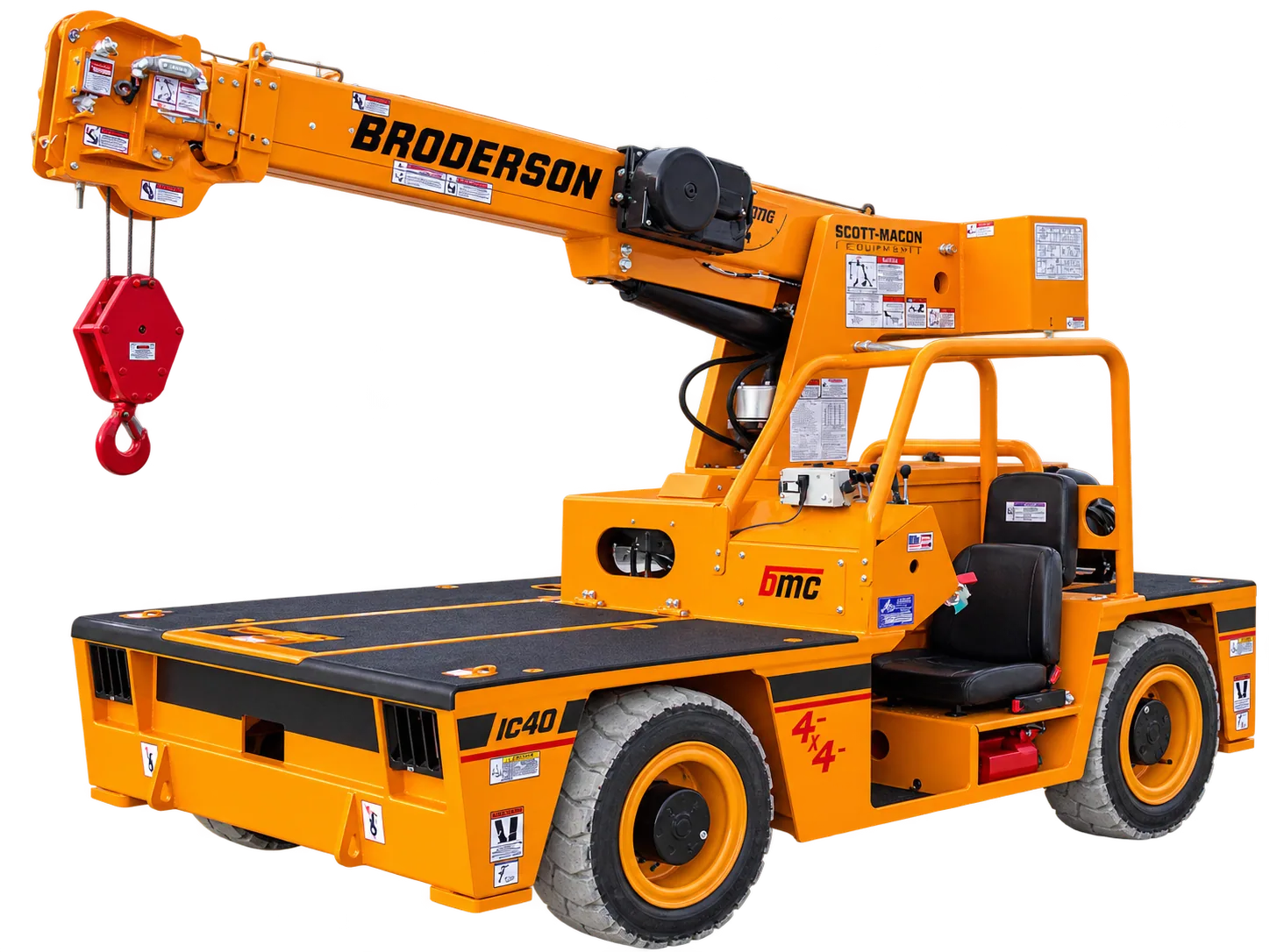

What are the capacities of the Broderson IC-35, IC-40 and IC-80?+
The IC-35 is rated 8,000 lbs, the IC-40 9,000 lbs, and the IC-80 18,000 lbs. Actual capacity depends on radius, boom configuration, operating direction, and whether the crane is on outriggers or rubber.
Is maximum crane capacity available at every radius?+
No. Headline capacity applies only at a short radius in a specific configuration. Capacity drops as the load moves farther out, so every lift gets checked against the load chart.
Can a Broderson travel with a suspended load?+
Certain configurations allow pick-and-carry on rubber. Permitted load, boom position, travel speed, and surface requirements follow the model-specific pick-and-carry chart and operating manual.
Is deck capacity the same as crane capacity?+
No. Deck capacity is material placed directly on the carry deck; crane capacity is a load suspended from the boom. Each has separate limits and operating requirements.
Do Broderson cranes always need outriggers?+
No. Some lifts can be performed on rubber when the load chart permits. Outriggers come out when greater capacity or stability is required.
Can a Broderson work indoors?+
Yes, if the machine fits the access route and the facility permits its power source. Floor capacity, ventilation, tire loading, overhead clearance, and turning space get evaluated first.
