HOME/MINI CRANES/JEKKO SPX1280
JEKKO

SPX1280

MINI CRANERENT + BUYBATTERY ELECTRIC · 110V CHARGING

The flagship of the CLE fleet: 17,637 lbs of capacity and nearly 88 feet of hook height from a lithium-powered crawler that still fits where truck cranes cannot. When the pick is heavy and the access is tight, this is the machine.

Request PricingSpecificationsSPX1280 Technical Data Sheet ↓
Jekko SPX1280 mini crane
17,637 lbsMAX CAPACITY
87′ 7″MAX HOOK HEIGHT
65′ 6″MAX HORIZONTAL REACH
15,653 lbsOPERATING WEIGHT
ELECTRICBATTERY · 110V CHARGING
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Jekko load chart. Send us the pick and we'll verify it.

Specifications are from the Jekko SPX1280 technical data sheet (Rev 7). Allowable capacity depends on radius, hook height, and outrigger configuration; CLE verifies every pick against the applicable load chart.
Send Us Your Pick →
COMPARE THIS MACHINEPut the SPX1280 side by side with another mini crane, spec for spec.
VS SPX328VS SPX527VS SPX532.2VS SPX650VS MC285C-2VS MC305VS MC405
Open the full comparison tool →
PERFORMANCE
Max lifting capacity (base configuration)17,637 lbs
Max hook height87′ 7″
Max horizontal reach65′ 6″
Capacity at radius17,637 lbs @ 3.3′ (8,000 kg @ 1.0 m)
DIMENSIONS + WEIGHT
Operating weight15,653 lbs
Transport width4′ 9″
Transport height6′ 9″
Transport length19′ 4″
Track ground pressure11.23 lb/in²
Max outrigger load16,535 lbs
POWER + CONTROL
Power sourceBattery electric · 110V charging
Battery96 V · 400 Ah
Motor power20 kW
ControlRadio remote control
ChargingExternal battery charger (3-phase / 1-phase)
Indoor useYes, occupied buildings
BOOM + SETUP
Boom length16′ 1″ – 58′ 1″
Lifting working angle0° to 80°
Max gradeability15° (26%)
Fly jib optionsJIB3500G · JIB1502.3HX · JIB1502.1FL
Outrigger setupMulti-position · min 11′2″×11′2″ / max 15′1″×15′1″
Outrigger point loadsSimulated by CLE pre-dispatch
KEY FEATURES

What sets the SPX1280 apart.

17,637 lb capacity
  • The heaviest lift in the SPX line
  • Counterweight-configurable stability
  • Reaches mid-rise heights
Lithium battery power
  • Emission-free indoor operation
  • Onboard 110V charging
  • Full-workday runtime
Configurable reach
  • Hydraulic luffing jib options
  • Multi-position outriggers
  • J-Link by TrackUnit monitoring
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Heaviest tight-access picks17,637 lbs of capacity where a conventional crane cannot set up.
U2Steel erectionNearly 88 feet of hook height covers serious multi-story structural work.
U3Machinery moving + riggingHeavy plant equipment, presses, and process machinery set with precision.
U4Heavy curtain wallLarge facade assemblies and feature glass placed at height and radius.
U5Electrical + data centersTransformers, generators, and switchgear set indoors on lithium power.
U6Replacing a street craneDelivers taxi-crane numbers from inside the property line · no closure, no permits.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

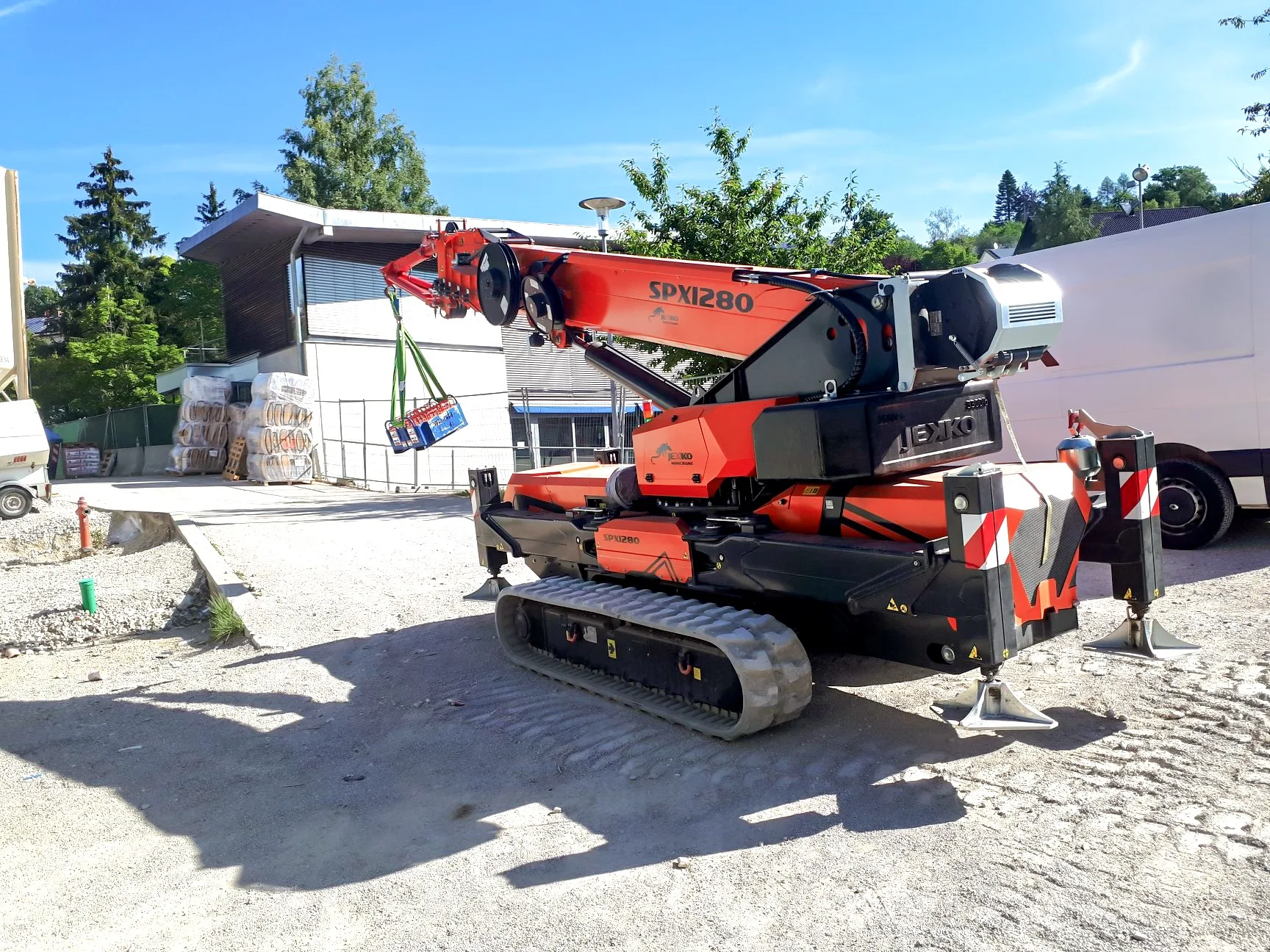

Jekko SPX1280 mini crane on a customer jobsite, photo 1 of 3

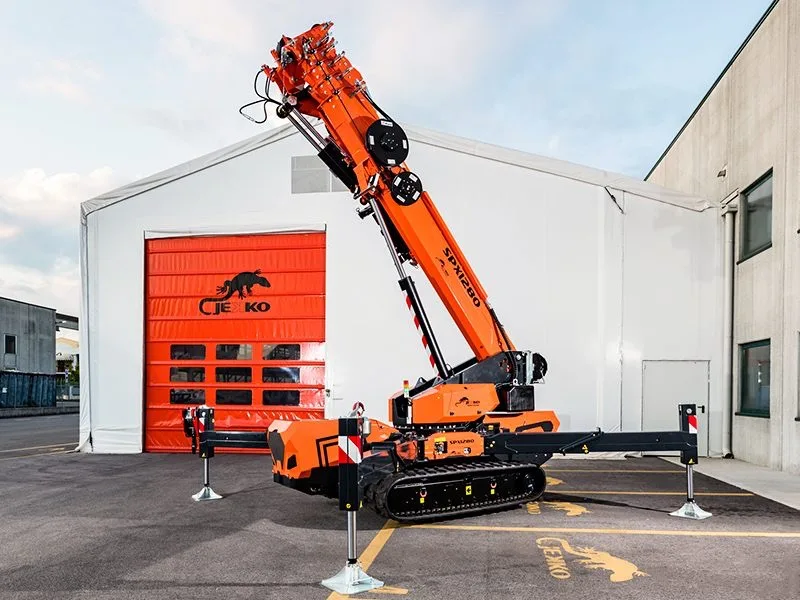

Jekko SPX1280 mini crane on a customer jobsite, photo 2 of 3

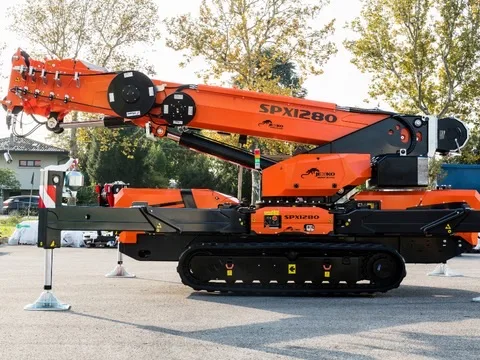

Jekko SPX1280 mini crane on a customer jobsite, photo 3 of 3
PDFSPX1280 Technical Data SheetJAN 2023 REV.8 · PDF DOWNLOAD↓PDFSPX1280 PresentationFEATURES + CONFIGURATIONS↓PDFSPX1280CL IntroductionLITHIUM CL VARIANT↓CHARTJekko Load Charts, All ConfigurationsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEJib configurations explained: more reach, a different chart.CLE PLANNING GUIDE · READ ONLINE→POSTJekko J-Zones Explained: What J0 Through J7 Mean for Your LiftFROM THE CLE BLOG · READ ONLINE→POSTJekko Outrigger Configurations: Planning Around Jobsite ObstaclesFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES

The SPX1280 against its siblings.

Full comparison tool →
MAX CAPACITY (LBS)
SPX328 EVO
5,950
SPX527
5,950
SPX532.2
5,950
SPX650
11,020
SPX1280
17,637
MC285C-2
6,210
MC305
6,560
MC405
8,480
MAX HOOK HEIGHT
SPX328 EVO
42′ 8″
SPX527
44′ 3″
SPX532.2
55′ 10″
SPX650
77′ 5″
SPX1280
87′ 7″
MC285C-2
28′ 6″
MC305
41′ 0″
MC405
55′ 1″
TRANSPORT WEIGHT (LBS)
SPX328 EVO
5,290
SPX527
7,937
SPX532.2
6,060
SPX650
13,007
SPX1280
15,653
MC285C-2
4,765
MC305
8,750
MC405
12,440
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET SPX1280 PRICING

Put the SPX1280 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
SPX1280 · AT A GLANCE
Max capacity17,637 lbs
Max hook height87′ 7″
Max reach65′ 6″
Operating weight15,653 lbs
PowerBattery Electric · 110V charging
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Jekko load chart.
