50.45
TRACKED AERIAL LIFTAUTHORIZED HYRAX DEALER · EASTERN PAAVAILABLE FOR PURCHASESELF-LEVELING · NO OUTRIGGERSDIESEL
The simplest and toughest model in the line-up. A jib-less telescopic mast puts up to 1,000 lbs in an extra-wide basket at a 45-foot working height - the highest-capacity Hyrax, built on the same rugged self-leveling 50-series chassis. No outriggers, tracked traction, Kubota diesel. Sold by CLE; not in our rental fleet.
45′ 3″MAX WORKING HEIGHT
35′ 1″MAX HORIZONTAL REACH
1,000 lbsPLATFORM CAPACITY
10,494 lbsMACHINE WEIGHT
TRACKEDCRAWLER UNDERCARRIAGE
SPECIFICATIONS
The numbers that decide the job.
Published figures apply at base configuration. Available outreach depends on basket load and lift position per the Hyrax working envelope. Send us the work point and we'll verify it.
Figures from the Hyrax 50.45 specsheet and Hyrax published materials. The working envelope varies with platform load and mast position, so CLE verifies every work point before purchase handover.
Send Us Your Pick →PERFORMANCE
Working height45′ 3″
Platform height38′ 9″
Capacity at reach1,000 lbs @ 24′ 7″ · 440 lbs @ 31′ 6″ · 220 lbs @ 35′ 1″
Horizontal reach35′ 1″ (varies with load)
Platform capacity1,000 lbs (unrestricted)
Drive at heightDrives at full height
RotationTurntable 360° (jib-less mast)
DIMENSIONS + WEIGHT
Stowed dimensions17′ 11″ L × 7′ 3″ W × 7′ 5″ H
Machine weight10,494 lbs
Boom typeJib-less telescopic mast
Platform size5′ 11″ × 2′ 8″ std (7′ 11″ option)
TracksNon-marking rubber · permanent width
POWER + DRIVE
EngineKubota 3-cyl. diesel · 18.5 kW
Fuel capacity12.15 gal
Drive speed0 – 1.43 mph transport · 0.25 mph at height
Gradeability45% (25°)
Automatic leveling15° both axes
DrivetrainATD diesel (ATDe / ATE not yet in NA)
SAFETY + STANDARDS
Load protectionLoad + moment sensing, electronic cutout
Max people2 + tools and materials
ComplianceANSI/SAIA A92.20 · CSA B354.7
OUTREACH vs. HEIGHT
Working height is the start of the conversation.
An aerial lift's outreach shrinks as the basket climbs, and basket capacity can change with configuration. Drag the slider to see the principle, then let us map your work point against the Hyrax 50.45 working envelope.
Schematic is illustrative only, not the Hyrax 50.45 working envelope. Never plan work from this diagram.41′ 5″WORKING HEIGHT · ILLUSTRATIVE
Horizontal outreach10 ft
5 ft35′ 1″ max reach
100%SELF-LEVELINGThe 50-series chassis levels itself continuously, up to 15° on both axes.
1,000 LBSBASKET CAPACITYThe highest-capacity Hyrax, with an extra-wide 7′ 10″ basket for two workers plus material.
JIB-LESSSTRAIGHT MASTA jib-less mast trades reach-over geometry for unmatched straight-up strength.
24 HPKUBOTA DIESELKubota D902-TE4 turbo diesel, Tier 4 / Stage V; electric variants not yet available in North America.
SELF-LEVELING CHASSIS
No outriggers.
No setup time.
Same idea as the 27.41, scaled up: the 50-series chassis is 100% self-leveling, so there are no outriggers to set, no cribbing, and no spread footprint to plan around - and you can keep driving at height.
On the same rugged 50-series chassis, the jib-less 50.45 reaches a 45-foot working height with up to 1,000 lbs in an extra-wide basket, powered by a 24 hp Kubota diesel.
Figures from Hyrax published materials and the 50.45 specsheet. The working envelope varies with basket load and lift position. CLE verifies before dispatch.WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.

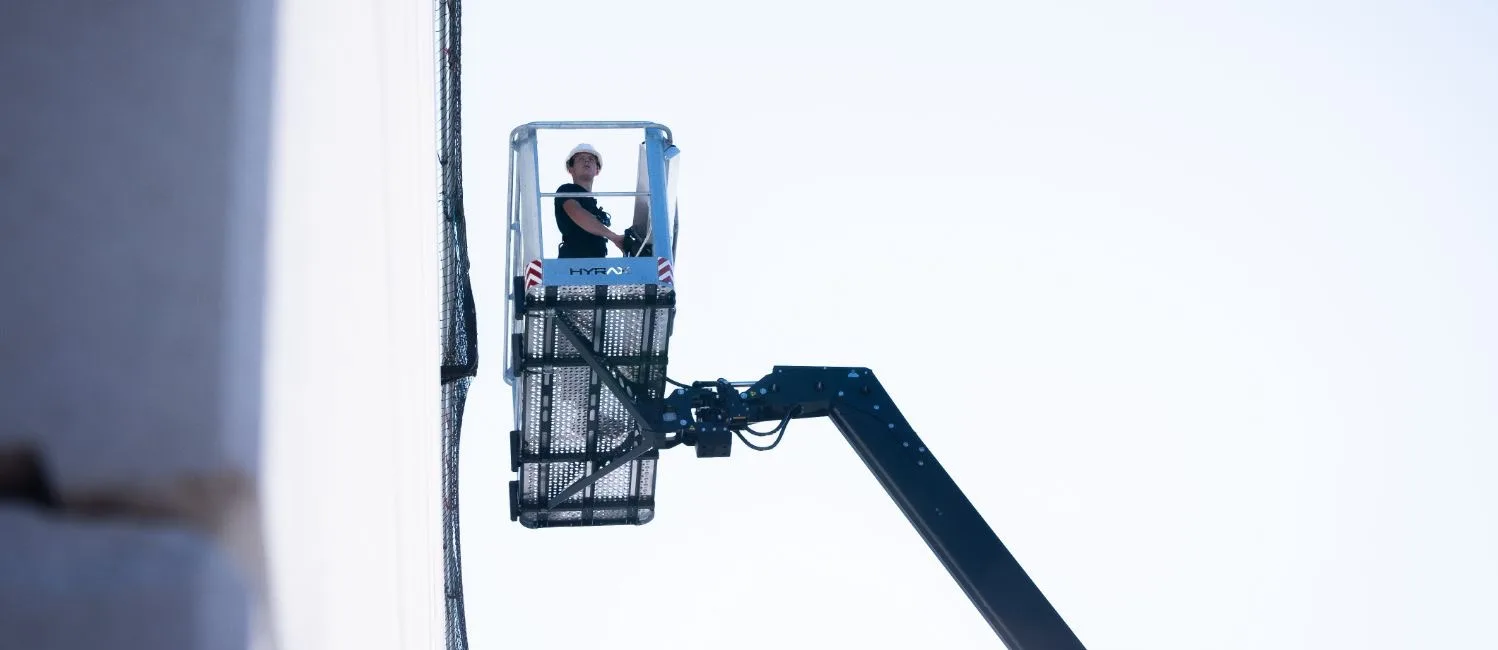

U1Facade + curtain wall accessGlazing and envelope crews working the building face without scaffold or swing stage.
U2Heavy two-person picksA 1,000 lb basket carries two workers plus material and tools in a single trip up.

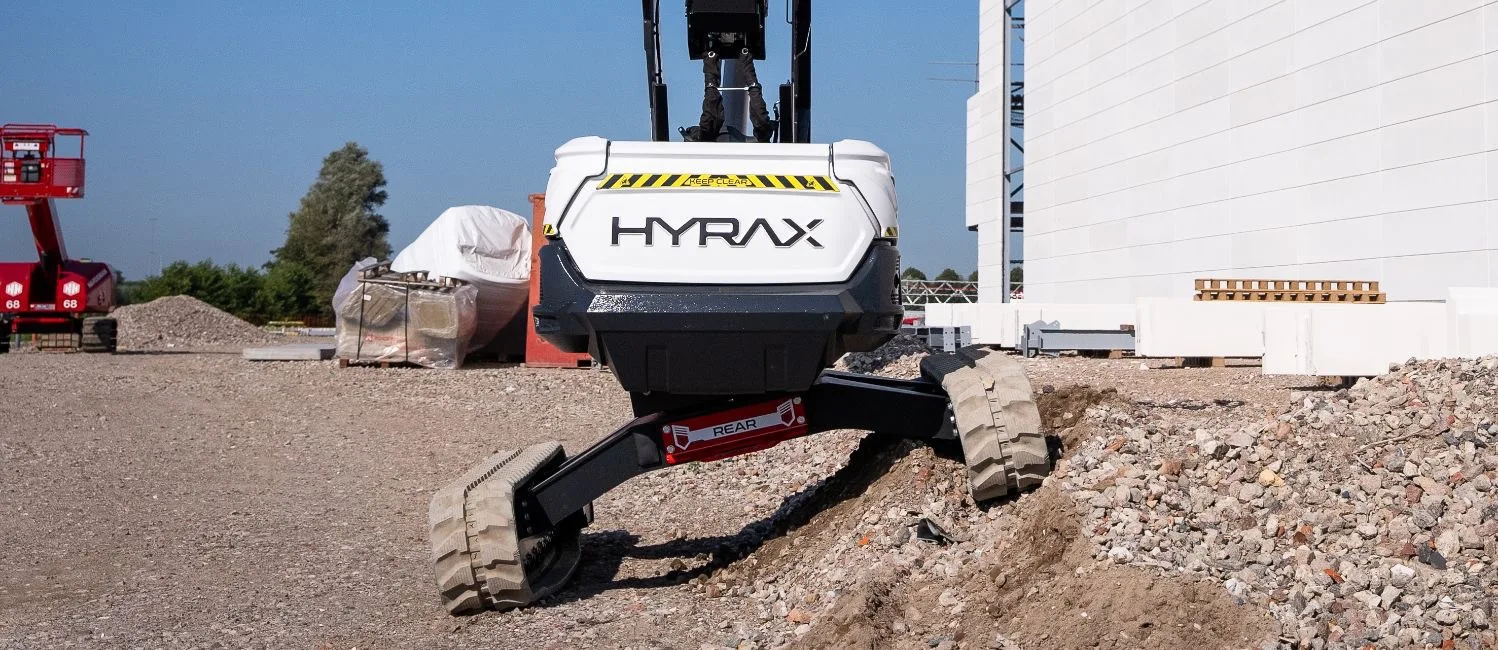

U3Slopes + soft groundTracked undercarriage climbs 25° grades and crosses lawns, gravel, and mud.
U4Atriums + high interiorsIndoor work at height over lobbies, atriums, and production floors.
U5Historic buildingsNon-marking tracks and a light footprint around sensitive structures.
U6Tight-access sitesNarrow transport width passes gates and doorways a truck-mounted lift cannot.

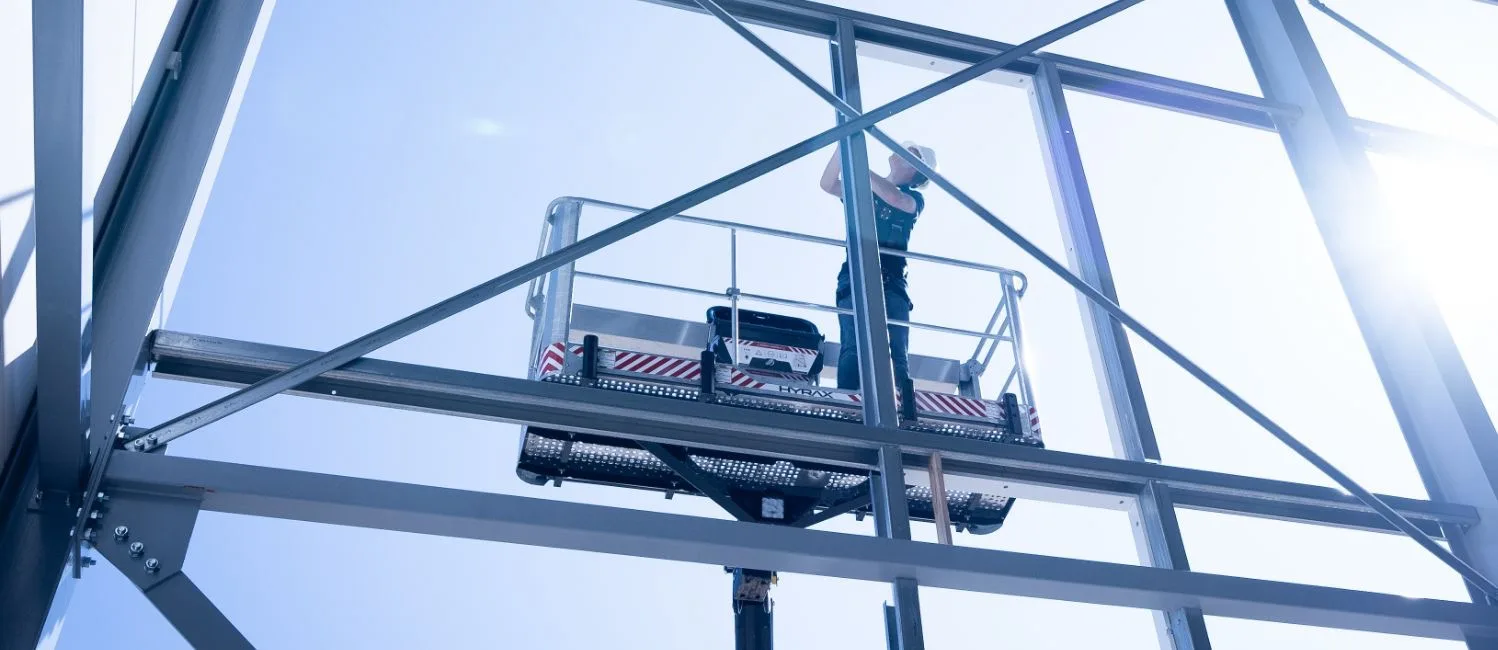

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFHyrax 50.45 specsheet (NA)REQUEST FROM CLE↓ENVWorking range diagramREACH BY PLATFORM LOAD · VERIFIED BY CLE↓FINPurchase + financing optionsLEASE OR FINANCE · ASK CLE→GUIDETracked aerial lift guide: Hyrax, spider lifts, and boom lifts compared.CLE PLANNING GUIDE · READ ONLINE→POSTTransporting a Hyrax: Tracked Lift Access and Trailer PlanningFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · THE HYRAX TRACKED LINE
The Hyrax 50.45 against its siblings.
PLATFORM CAPACITY (LBS)
WORKING HEIGHT
MACHINE WEIGHT (LBS)
Working height and platform capacity apply at base configuration only. Allowable load depends on boom position per the manufacturer working envelope; CLE verifies every work point.
THE REST OF THE LINE
Compare the Hyrax lineup.
Hyrax 27.41The compact Hyrax for tighter sites →
BUYTRACKED AERIAL LIFT
Hyrax 50.43Diesel
CAPACITY730 lbs platform
MAX HEIGHT43′ 4″
MAX REACH32′ 10″
WEIGHT · POWER10,692 lbs · Diesel
Hyrax 50.52Diesel
CAPACITY730 lbs platform
MAX HEIGHT52.8′
MAX REACH34.4′
WEIGHT · POWER11,222 lbs · Diesel
07 / GET HYRAX 50.45 PRICING
Own the Hyrax 50.45.
The 50.45 is a purchase machine - it is not in our rental fleet. Send the working height, outreach, basket load, and access dimensions, and we'll verify the pick against the Hyrax working envelope and quote a purchase, with financing options if you want them.
HYRAX 50.45 · AT A GLANCE
Working height45′ 3″
Horizontal reach35′ 1″
Platform capacity1,000 lbs
Machine weight10,494 lbs
PowerKubota diesel
AvailabilityPurchase (not rental)
Outreach and basket capacity vary with height and configuration per the Hyrax working envelope.
