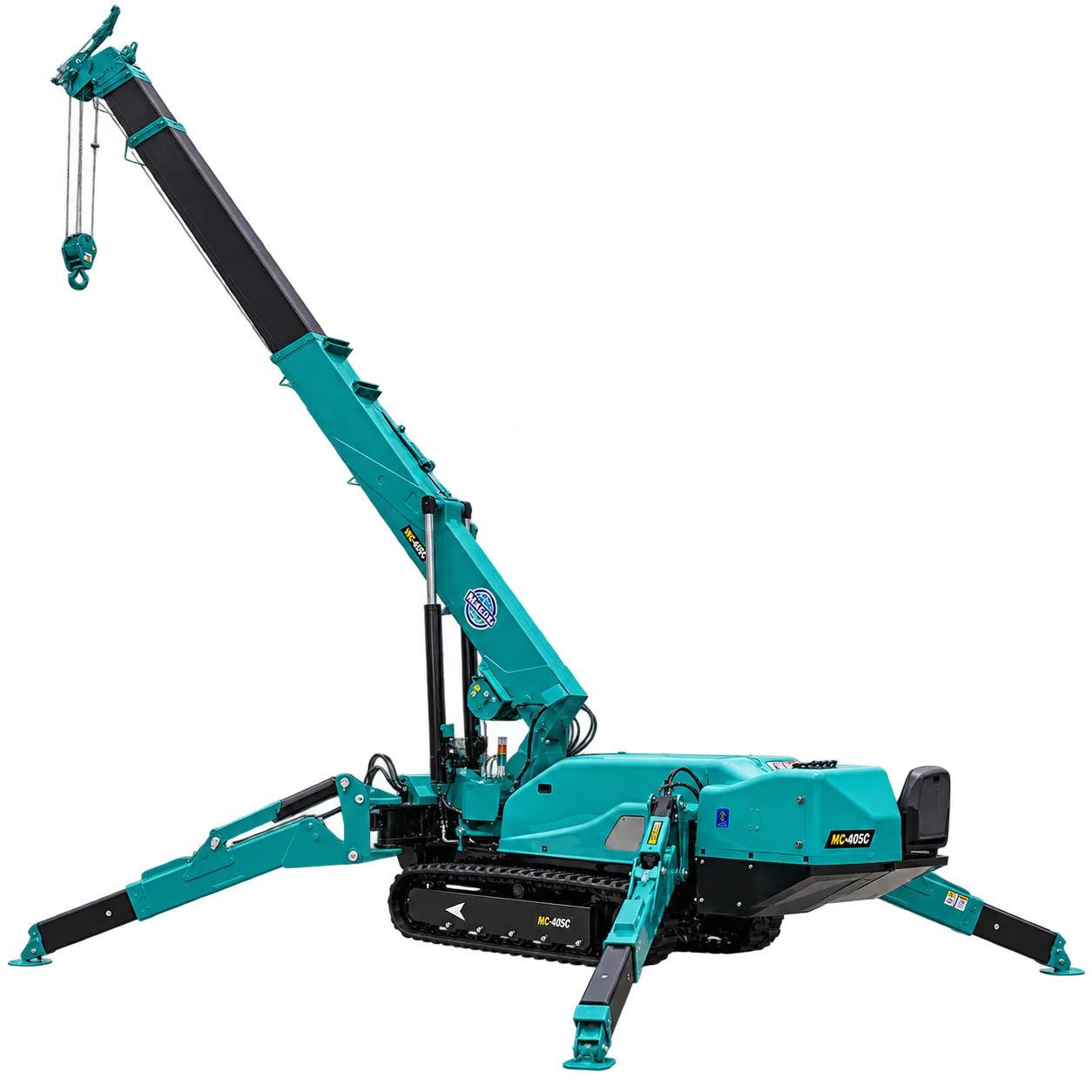

MC405
MINI CRANERENT + BUYDIESEL / 230V THREE-PHASE ELECTRIC
The largest Maeda in the CLE fleet: 8,480 lbs of capacity, 55 feet of hook height, and dual diesel plus electric power. The machine for heavier curtain-wall units, mechanical equipment, and longer reaches that still have to pass through tight access.
8,480 lbsMAX CAPACITY
55′ 1″MAX LIFTING HEIGHT
52.4′MAX WORKING RADIUS
12,440 lbsMACHINE WEIGHT
DUALDIESEL / 230V 3-PHASE ELECTRIC
SPECIFICATIONS
The numbers that decide the job.
Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Maeda load chart. Send us the pick and we'll verify it.
Figures are from the Maeda MC405C-5 technical data sheet (2025). Allowable capacity depends on radius, boom position, fly jib, and outrigger position (Max, Mid, Min), so CLE verifies every pick against the applicable chart.
Send Us Your Pick →COMPARE THIS MACHINEPut the MC405 side by side with another mini crane, spec for spec.Open the full comparison tool →
PERFORMANCE
Crane capacity8,480 lbs × 8.5′
Max working radius52.4′ × 500 lbs
Max lifting height55′ 1″ (67.9′ with fly jib)
Max reach below grade-67.3′ (4 parts of line)
Capacity at radius8,480 lbs @ ~8.5′ (3.83 t @ 2.7 m) · varies by outrigger setting
DIMENSIONS + WEIGHT
Transport dimensions16′4″ L × 4′6″ W × 6′6″ H
Machine weight12,440 lbs (12,770 lbs w/ electric motor)
Fly jib weight+330 lbs
Travel ground pressure7.31 PSI (7.5 PSI electric)
Outrigger max extended widthLat 19′11″ × Fr 17′10″ × Rr 19′1″
POWER + CONTROL
EngineYanmar 3TNV88F diesel · 28.7 hp
Electric motor7.5 kW · 230 V
Travel speed0 to 2.05 mph
ControlRadio remote control
Indoor useElectric mode, confirm with CLE
SETUP
Outrigger positionsMax / Mid / Min, each with own chart
Searcher hook options1,870 lbs and 3,300 lbs
Outrigger point loadsSimulated by CLE pre-dispatch
WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Heavy glass + curtain wall8,480 lbs of capacity handles oversized IGUs and heavy facade assemblies.
U2Machinery moving + riggingPlant equipment set at height and radius that smaller machines cannot reach.

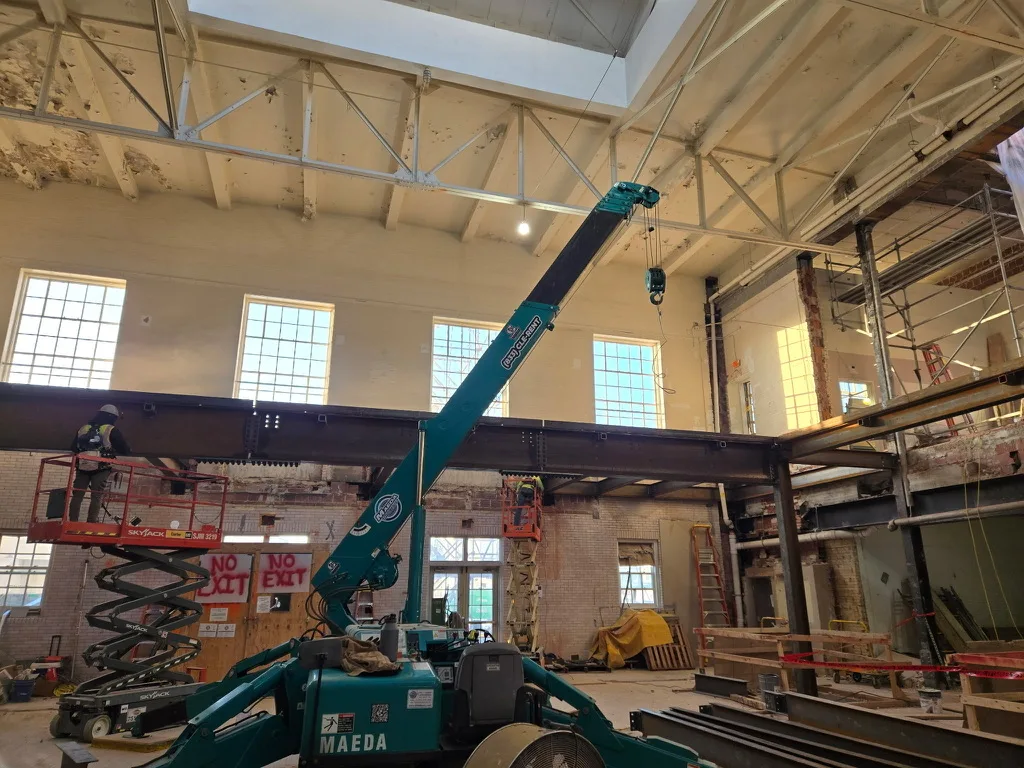

U3Steel erection55 feet of hook height covers multi-story structural picks from a compact setup.
U4Rooftop equipment52 feet of horizontal reach places units over parapets without a street crane.
U5Data centersCRAC units, switchgear, and busway set indoors on battery power.
U6Confined accessTracks through restricted openings and sets up where the outrigger footprint is the constraint.

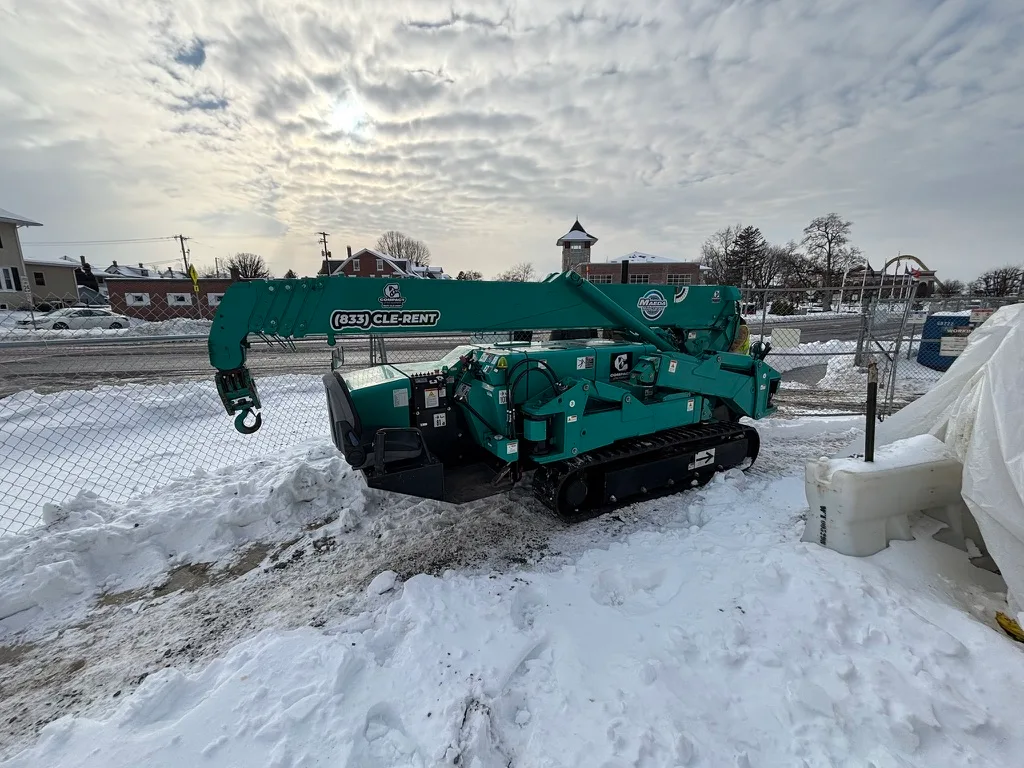

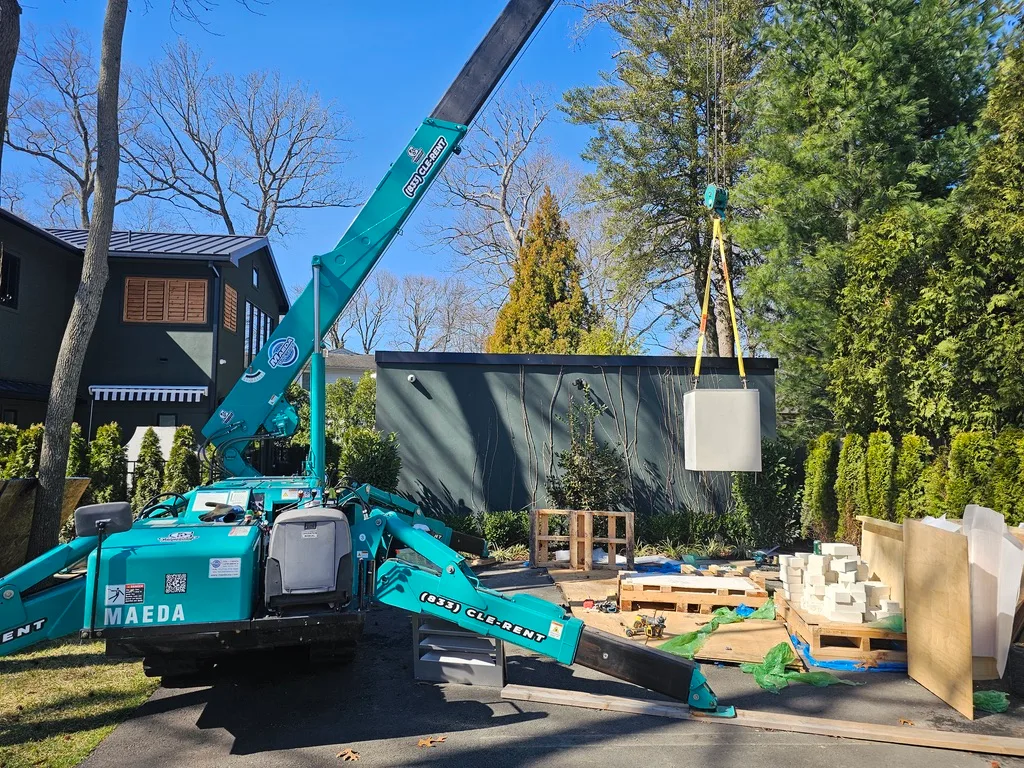

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFMC405 data sheetREQUEST FROM CLE↓CHARTMaeda load charts, all outrigger positionsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEWill Your Floor Hold a Crane? Floor Loading GuideCLE PLANNING GUIDE · READ ONLINE→POSTWhich Cranes Fit Through a Doorway? Manufacturer Transport DimensionsFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES
The MC405 against its siblings.
MAX CAPACITY (LBS)
MAX HOOK HEIGHT
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER
Step up the lineup.
MC305More height and reach from the next Maeda up →
SPX650Battery Electric110V
CAPACITY11,020 lbs
MAX HEIGHT77′ 5″
MAX REACH65′ 7″
WEIGHT · POWER13,007 lbs · Battery Electric
SPX1280Battery Electric110V
CAPACITY17,637 lbs
MAX HEIGHT87′ 7″
MAX REACH65′ 6″
WEIGHT · POWER15,653 lbs · Battery Electric
06 / GET MC405 PRICING
Put the MC405 on your job.
Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Maeda load chart and quote rental or purchase · usually the same business day.
MC405 · AT A GLANCE
Max capacity8,480 lbs × 8.5′
Max lifting height55′ 1″ (67.9′ jib)
Max working radius52.4′
Machine weight12,440 lbs
PowerDiesel / 230V three-phase electric
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Maeda load chart.
