HOME/MINI CRANES/JEKKO SPX532.2
JEKKO

SPX532.2

MINI CRANERENT + BUYBATTERY ELECTRIC · 110V CHARGING

The tallest of the 5,950-lb Jekkos: nearly 56 feet of hook height and 48 feet of reach from a lithium-powered machine that weighs just 6,060 lbs. Height and floor-friendliness in the same package, indoors or out.

Request PricingSpecificationsSPX532.2 Technical Data Sheet ↓

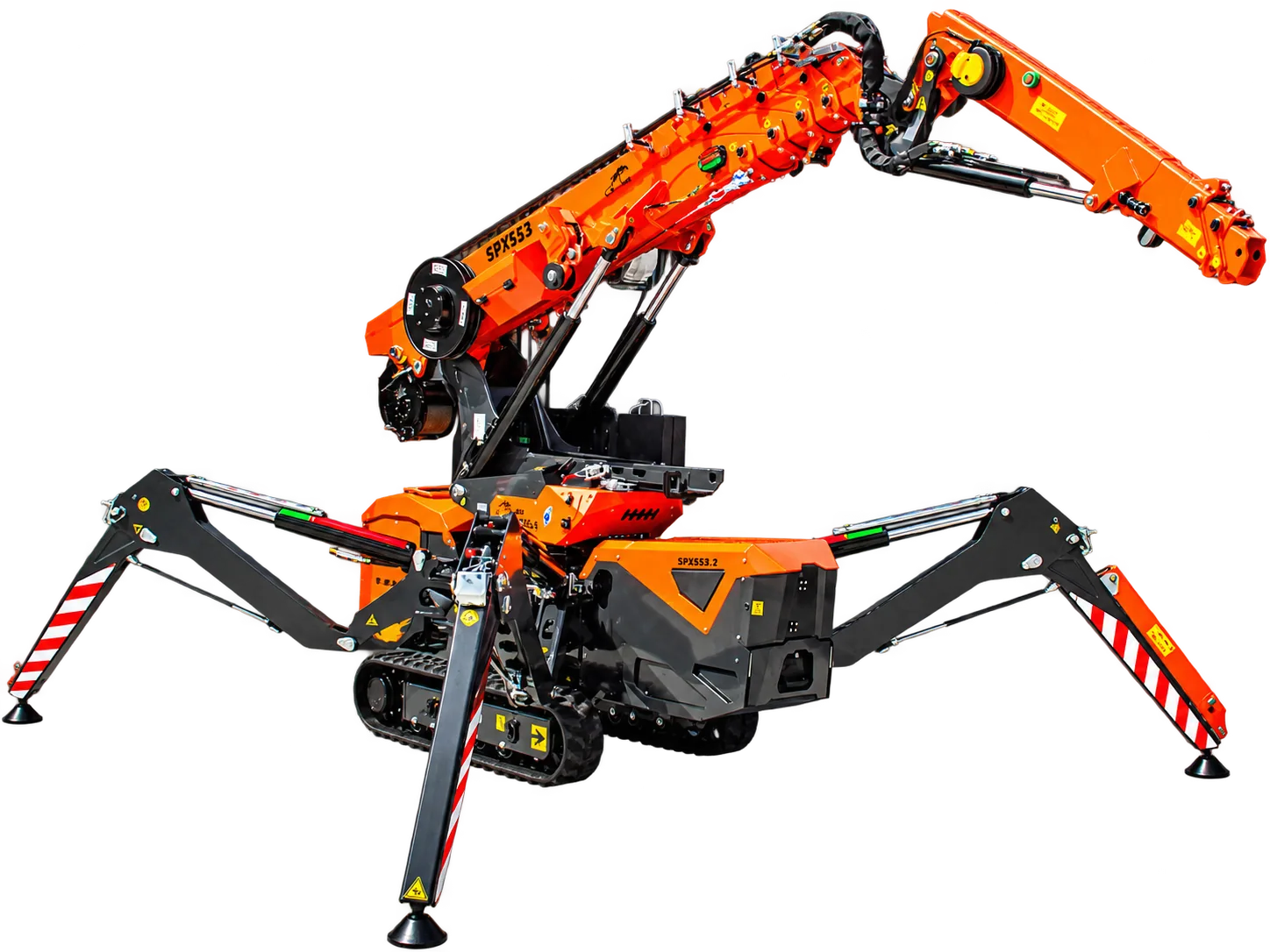

Jekko SPX532.2 mini crane
5,950 lbsMAX CAPACITY
55′ 10″MAX HOOK HEIGHT
48′ 7″MAX HORIZONTAL REACH
6,060 lbsOPERATING WEIGHT
ELECTRICBATTERY · 110V CHARGING
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Jekko load chart. Send us the pick and we'll verify it.

Specifications are from the Jekko SPX532.2 technical data sheet (Rev 0.4). Allowable capacity depends on radius, hook height, and outrigger configuration; CLE verifies every pick against the applicable load chart.
Send Us Your Pick →
COMPARE THIS MACHINEPut the SPX532.2 side by side with another mini crane, spec for spec.
VS SPX328VS SPX527VS SPX650VS SPX1280VS MC285C-2VS MC305VS MC405
Open the full comparison tool →
PERFORMANCE
Max lifting capacity (base configuration)5,950 lbs
Max hook height55′ 10″
Max horizontal reach48′ 7″
Capacity at radius5,950 lbs @ 3′ 3″ (2,700 kg @ 1.0 m)
DIMENSIONS + WEIGHT
Operating weight6,060 lbs
Transport width2′ 6″ (0.76 m)
Transport height6′ 6″
Transport length10′ 4″
Track ground pressure10.0 lb/in²
Max outrigger load6,830 lbs
POWER + CONTROL
Power sourceBattery electric · 110V charging
Battery48 V · 210 Ah
Motor power8 kW
ControlRadio remote control
ChargingExternal 48 V charger (3-phase 400 V / 1-phase 230 V)
Indoor useYes, occupied buildings
BOOM + SETUP
Boom length8′ 6″ – 33′ 10″
Lifting working angle0° to 80°
Fly jib optionsJIB1200GX · JIB1000.2H1MX · JIB500GR
Derated configuration1,950 lb manufacturer-rated option · 55′ 10″ height · 48′ 7″ reach (as SPX509.2)
Outrigger setupMulti-position · min 12′6″×12′6″ / max 15′1″×14′9″
Outrigger point loadsSimulated by CLE pre-dispatch
KEY FEATURES

What sets the SPX532.2 apart.

5,950 lb, battery power
  • Emission-free indoor lifting
  • Onboard 110V charging, works while charging
  • Full-workday lithium runtime
Nine outrigger positions
  • J2–J7 stabilized charts
  • Independent leg configuration
  • Sets up in asymmetric spaces
Configurable reach
  • Hydraulic luffing jib options
  • Searcher hook & aux winch
  • J-Link by TrackUnit monitoring
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Indoor glass settingZero-emission lithium power and remote control for glazing in occupied buildings.
U2Curtain wall at height48 feet of horizontal reach places facade units several floors up from one setup.
U3Data centersCRAC units, switchgear, and busway set indoors with no combustion exhaust.
U4Steel + misc metalsNearly 56 feet of hook height covers multi-story structural picks.
U5Historic buildingsLight machine weight and battery operation for sensitive interiors and floors.
U6Elevator-accessed floorsAt 6,060 lbs, among the lightest paths to serious height on an upper floor.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

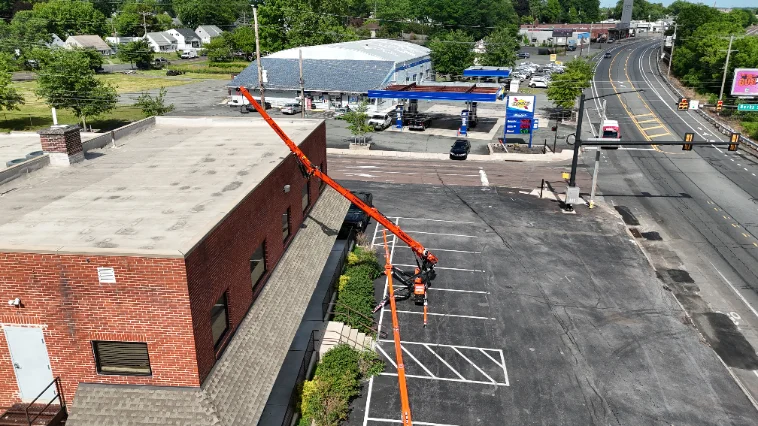

Jekko SPX532.2 mini crane on a customer jobsite, photo 1 of 3

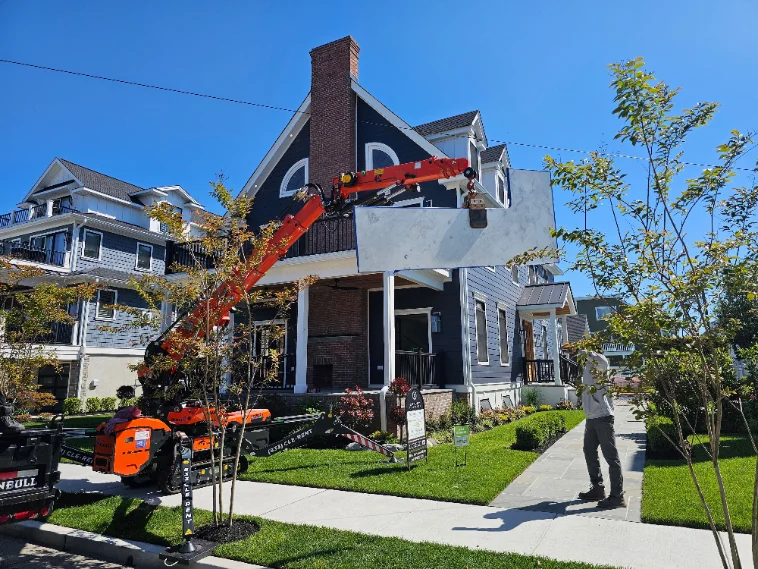

Jekko SPX532.2 mini crane on a customer jobsite, photo 2 of 3

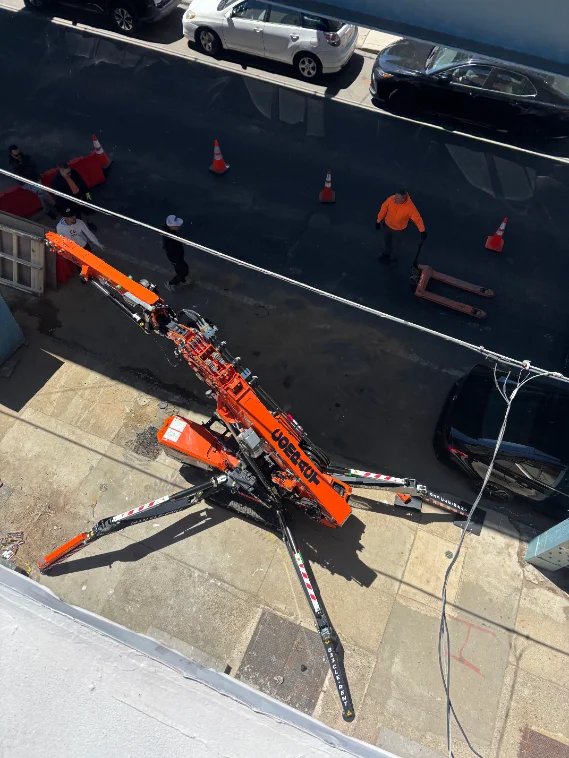

Jekko SPX532.2 mini crane on a customer jobsite, photo 3 of 3
PDFSPX532.2 Technical Data SheetSEP 2025 REV0.4 · PDF DOWNLOAD↓PDFSPX532.2CL Product BrochureJEKKO · PDF DOWNLOAD↓CHARTJekko Load Charts, All ConfigurationsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→POSTDerated Jekko Mini Cranes: The 1,950 lb Configuration ExplainedFROM THE CLE BLOG · READ ONLINE→GUIDEJib configurations explained: more reach, a different chart.CLE PLANNING GUIDE · READ ONLINE→POSTJekko J-Zones Explained: What J0 Through J7 Mean for Your LiftFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES

The SPX532.2 against its siblings.

Full comparison tool →
MAX CAPACITY (LBS)
SPX328 EVO
5,950
SPX527
5,950
SPX532.2
5,950
SPX650
11,020
SPX1280
17,637
MC285C-2
6,210
MC305
6,560
MC405
8,480
MAX HOOK HEIGHT
SPX328 EVO
42′ 8″
SPX527
44′ 3″
SPX532.2
55′ 10″
SPX650
77′ 5″
SPX1280
87′ 7″
MC285C-2
28′ 6″
MC305
41′ 0″
MC405
55′ 1″
TRANSPORT WEIGHT (LBS)
SPX328 EVO
5,290
SPX527
7,937
SPX532.2
6,060
SPX650
13,007
SPX1280
15,653
MC285C-2
4,765
MC305
8,750
MC405
12,440
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET SPX532.2 PRICING

Put the SPX532.2 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
SPX532.2 · AT A GLANCE
Max capacity5,950 lbs
Max hook height55′ 10″
Max reach48′ 7″
Operating weight6,060 lbs
PowerBattery Electric · 110V charging
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Jekko load chart.
