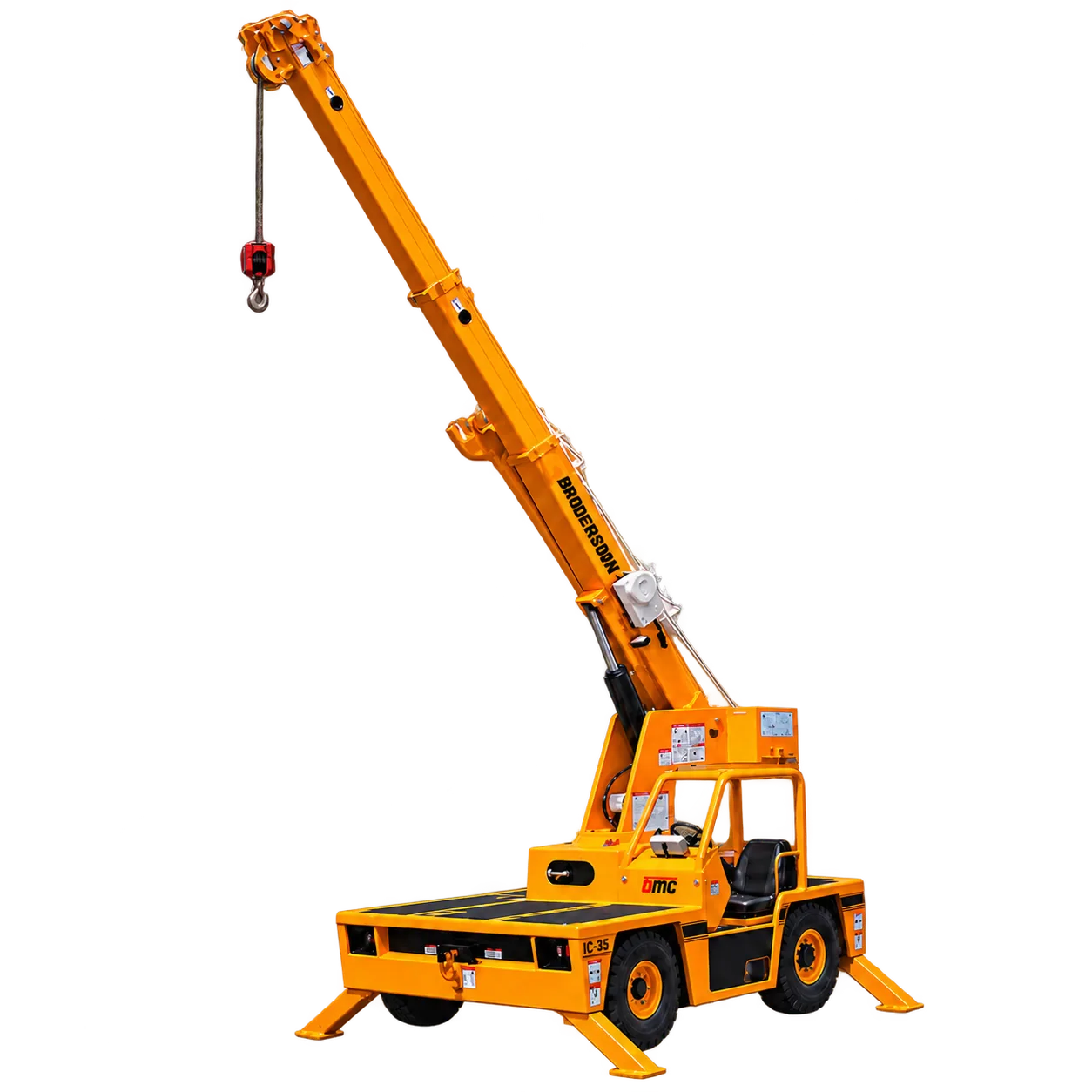

IC-35-2A
CARRY DECK CRANERENT + BUYGAS OR DIESEL POWER
The compact end of the Broderson carry deck line · built to pick, carry, and place inside operating plants and warehouses where a rough-terrain crane has no business. Full specifications are being confirmed from the Broderson data sheet; capacity and dimensions available on request today.
8,000 lbsMAX CAPACITY
19′ 2″ + 8′BOOM + EXTENSION
33′ 6″MAX HOOK HEIGHT
7,100 lbsBASE WEIGHT
Gas / DieselPOWER SOURCE
SPECIFICATIONS
The numbers that decide the job.
Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Broderson load chart. Send us the pick and we'll verify it.
Figures are from the Broderson IC-35 specification sheet. Capacities on outriggers are 85% of tipping loads, on rubber 75%; allowable load at your radius comes from the load chart, which CLE verifies for every quoted pick.
Send Us Your Pick →PERFORMANCE
Max lifting capacity8,000 lbs on outriggers
Max boom length19′ 2″ (+ 8′ extension)
Max tip height33′ 6″ hook height w/ extension
Capacity at radius8,000 lbs @ 4′
DIMENSIONS + WEIGHT
Overall width5′ 0″ (5′ 4″ w/ enclosed cab)
Overall height6′ 6″
Overall length11′ 11″
Base weight7,100 lbs · no operator, extension or diesel
Typical weight7,560 lbs · with operator, boom extension and diesel
Deck capacity6,000 lbs · 29 sq ft
POWER + DRIVE
Power sourceFord gas (std) or Perkins diesel
Drive + steeringFront-axle drive · rear-axle steer
Indoor useConfirm ventilation with CLE
PICK & CARRY + SETUP
Pick & carry (on rubber)5,000 lbs @ 4′ radius, per chart
Outrigger setupFour hydraulic outriggers · independent controls
Outrigger point loadsSimulated by CLE pre-dispatch
WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Plant + facility maintenanceMotors, pumps, and process equipment picked and placed inside operating facilities.
U2Machinery movingPick-and-carry moves across the plant floor without re-rigging to a second machine.
U3Low-headroom picksCompact boom geometry works under ceilings, pipe racks, and mezzanines.
U4Warehouse + industrial steelMiscellaneous steel and equipment supports set inside the building.
U5Rigging supportA second machine for tailing, positioning, and load transfers.
U6Yard + shippingLoading, unloading, and staging heavy components around the yard.

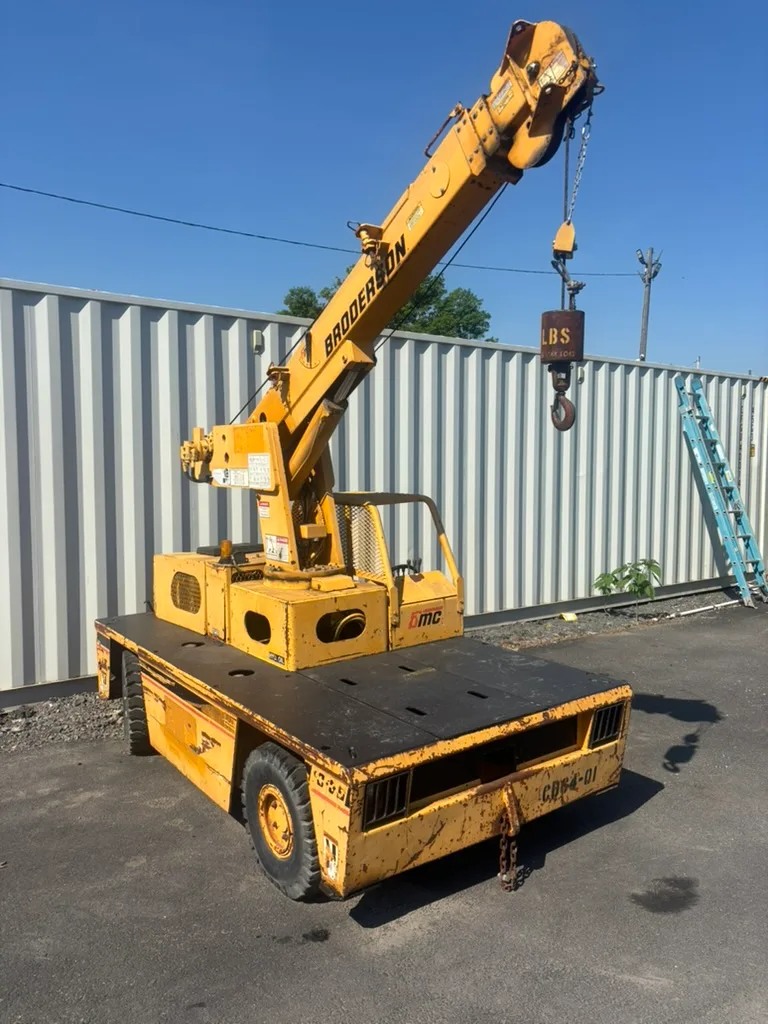

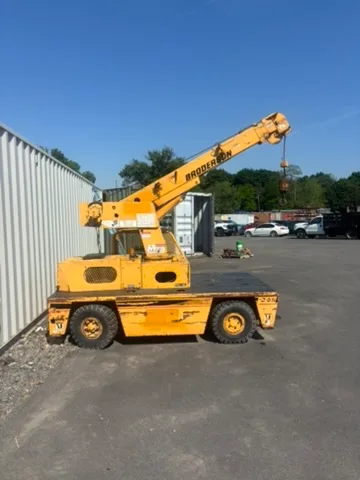

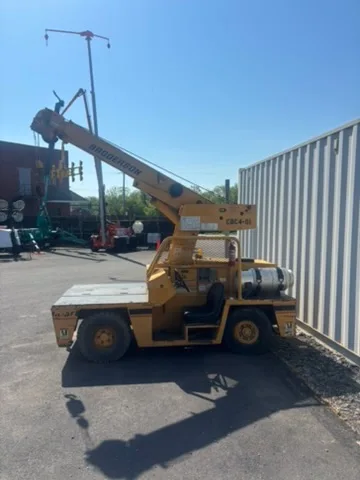

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFIC-35-2A specification sheetREQUEST FROM CLE↓CHARTBroderson load chartsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDECarry deck crane rental guide: deck, boom, rubber, and outriggers.CLE PLANNING GUIDE · READ ONLINE→POSTWhy Carry Deck Cranes Belong Inside Industrial PlantsFROM THE CLE BLOG · READ ONLINE→GUIDEBattery, diesel, or dual power: which machine fits which building.CLE PLANNING GUIDE · READ ONLINE→
HOW IT STACKS UP · ALL 3 CARRY DECK CRANES
The IC-35-2A against its siblings.
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER
Step up the lineup.
IC-40-2CStep up in the carry deck line →
IC-80-3GDiesel
CAPACITY18,000 lbs
MAX HEIGHT46′ 4″
MAX REACH40′
WEIGHT · POWERDual Fuel/Diesel
SPX1280Battery Electric110V
CAPACITY17,637 lbs
MAX HEIGHT87′ 7″
MAX REACH65′ 6″
WEIGHT · POWER15,653 lbs · Battery Electric
06 / GET IC-35-2A PRICING
Put the IC-35-2A on your job.
Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Broderson load chart and quote rental or purchase · usually the same business day.
IC-35-2A · AT A GLANCE
Max capacity8,000 lbs
Max boom length19′ 2″ + 8′ ext
Deck capacity6,000 lbs
Base weight7,100 lbs (7,560 typical)
PowerGas / Diesel
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Broderson load chart.
