HOME/MINI CRANES/MAEDA MC285C-2
MAEDA

MC285C-2

MINI CRANERENT + BUYDIESEL / 208-230V ELECTRIC

The classic Maeda mini crane and the lightest machine in the CLE fleet at 4,765 lbs · dual diesel plus electric power, radio remote control, and a footprint sized for service elevators and floor-load-limited slabs. The default pick when machine weight is the constraint.

Request PricingSpecificationsRequest Spec Sheet →

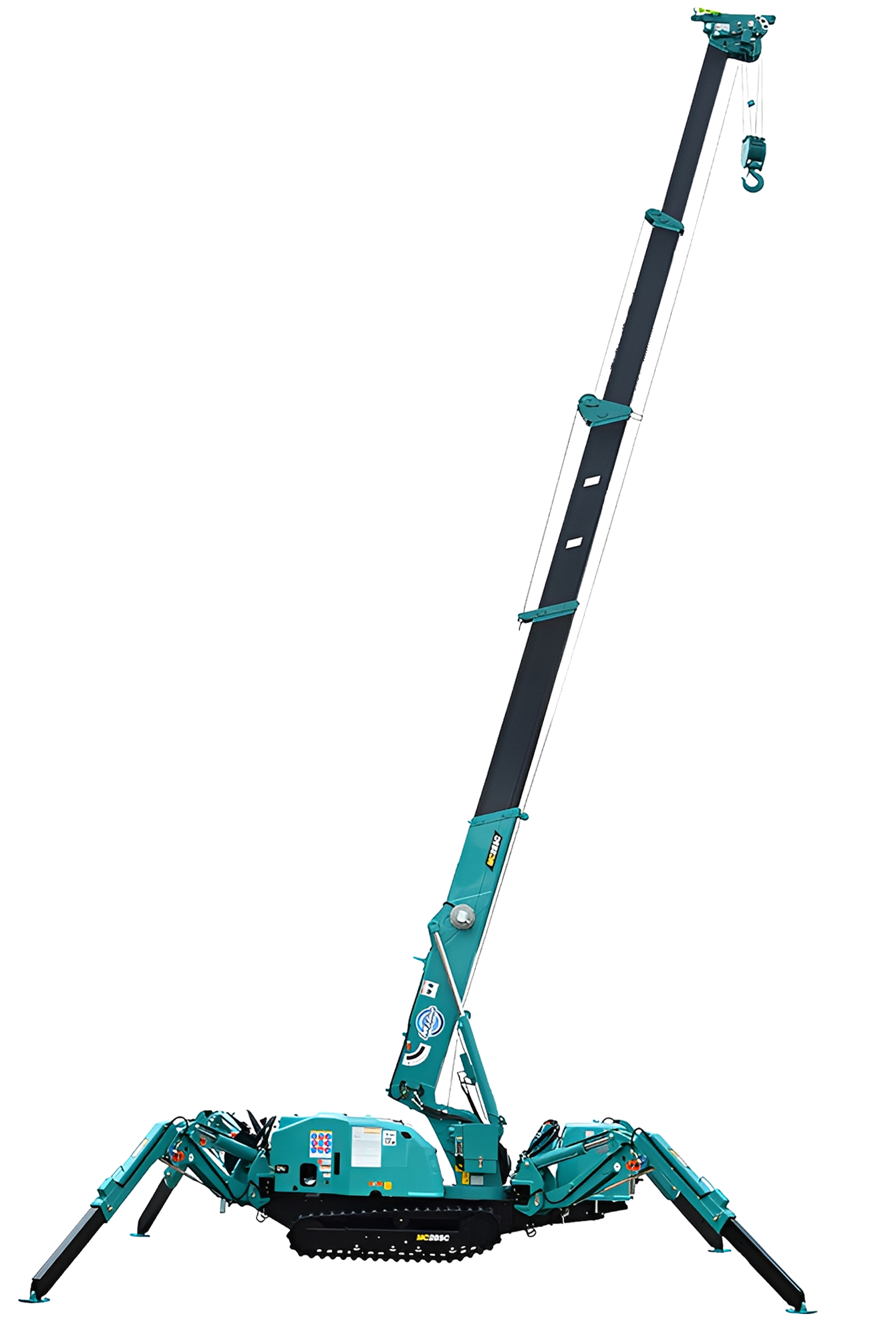

Maeda MC285C-2 mini crane
6,210 lbsMAX CAPACITY
28′ 6″MAX HOOK HEIGHT
26′ 11″MAX HORIZONTAL REACH
4,765 lbsOPERATING WEIGHT
DUALDIESEL / 208-230V ELECTRIC
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Maeda load chart. Send us the pick and we'll verify it.

Figures are from Maeda’s published MC285C-2 data. Allowable capacity depends on radius, boom position, and outrigger position, so CLE verifies every pick against the applicable chart.
Send Us Your Pick →
COMPARE THIS MACHINEPut the MC285C-2 side by side with another mini crane, spec for spec.
VS SPX328VS SPX527VS SPX532.2VS SPX650VS SPX1280VS MC305VS MC405
Open the full comparison tool →
PERFORMANCE
Maximum lifting capacity (base configuration)6,210 lbs
Maximum hook height28′ 6″
Maximum horizontal reach26′ 11″
Capacity at max radius330 lbs @ 26′ 11″
DIMENSIONS + WEIGHT
Operating weight4,765 lbs
Transport width2′ 5.5″ (750 mm)
Transport height4′ 10″ (1,470 mm)
Transport length10′ 11″ (3,320 mm)
Ground pressure7.73 psi (dual-power CRME-2)
POWER + CONTROL
Power sourceDiesel / 208-230V electric
ControlRadio remote control
Indoor useYes · occupied buildings
Electric power sourceExternal 208-230V AC 3-phase 60Hz · 5.5 kW motor (not a charging battery)
SETUP
Auxiliary winch (option)1,980 lb single-fall · up to ~328 ft below-grade
Outrigger configurationsMulti-position · each leg set individually
Outrigger point loadsSimulated by CLE pre-dispatch
AttachmentsSearcher hook · auxiliary winch
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Indoor glass settingStorefront and interior glazing in occupied buildings · battery mode indoors, no fumes, precise remote-control placement.
U2Floor-load-limited slabsAt 4,765 lbs the lightest machine in the fleet · the first call when the structural engineer sets a hard weight limit.
U3Elevator-accessed floorsThe easiest path to putting real lifting capacity on an upper floor via the service elevator.
U4HVAC + mechanicalAir handlers, pumps, and coils lifted into mechanical rooms without demoing walls or roof openings.
U5Historic buildingsRestoration work with minimal floor loading and battery operation in sensitive interiors.
U6Confined courtyardsTracks through tight openings and sets up where the outrigger footprint is the constraint.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

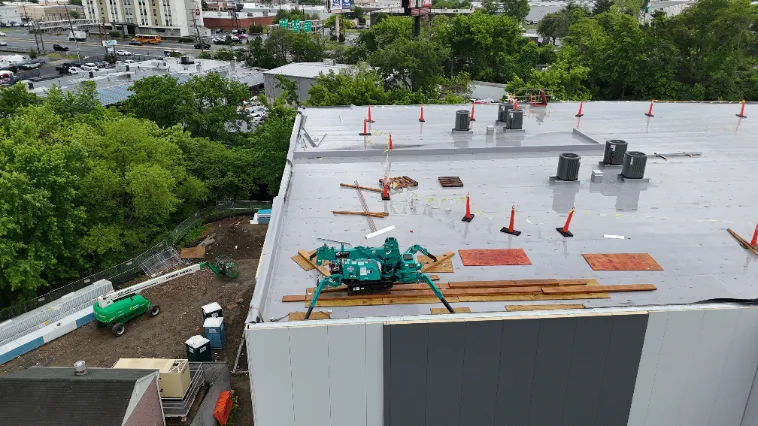

Maeda MC285C-2 mini crane on a customer jobsite, photo 1 of 3

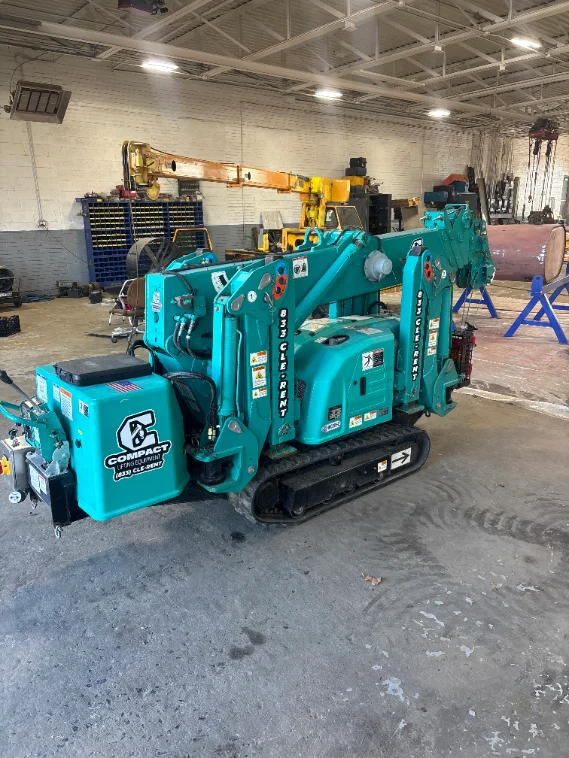

Maeda MC285C-2 mini crane on a customer jobsite, photo 2 of 3

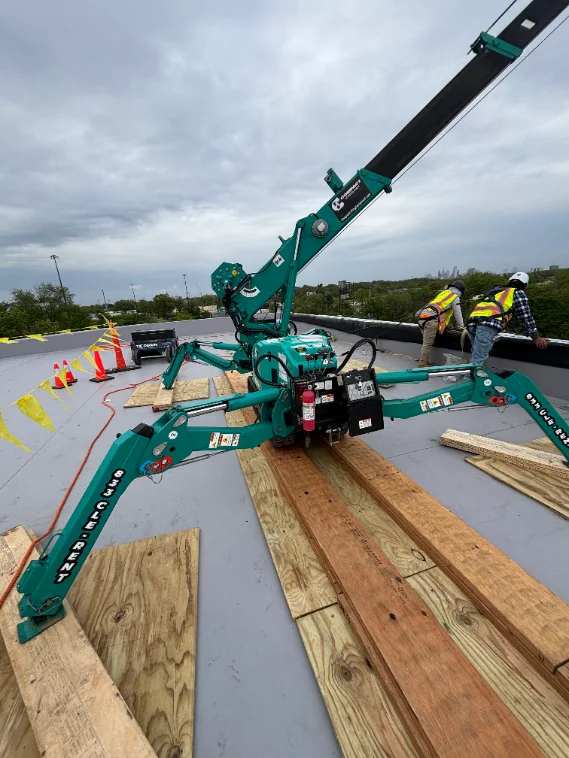

Maeda MC285C-2 mini crane on a customer jobsite, photo 3 of 3
PDFMC285C-2 data sheetREQUEST FROM CLE↓CHARTMaeda load charts, all outrigger positionsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEWill Your Floor Hold a Crane? Floor Loading GuideCLE PLANNING GUIDE · READ ONLINE→GUIDEGlass Lifting Equipment Guide: Cranes, Vacuum Lifters, JibsCLE PLANNING GUIDE · READ ONLINE→GUIDEBattery, diesel, or dual power: which machine fits which building.CLE PLANNING GUIDE · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES

The MC285C-2 against its siblings.

Full comparison tool →
MAX CAPACITY (LBS)
SPX328 EVO
5,950
SPX527
5,950
SPX532.2
5,950
SPX650
11,020
SPX1280
17,637
MC285C-2
6,210
MC305
6,560
MC405
8,480
MAX HOOK HEIGHT
SPX328 EVO
42′ 8″
SPX527
44′ 3″
SPX532.2
55′ 10″
SPX650
77′ 5″
SPX1280
87′ 7″
MC285C-2
28′ 6″
MC305
41′ 0″
MC405
55′ 1″
TRANSPORT WEIGHT (LBS)
SPX328 EVO
5,290
SPX527
7,937
SPX532.2
6,060
SPX650
13,007
SPX1280
15,653
MC285C-2
4,765
MC305
8,750
MC405
12,440
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET MC285 PRICING

Put the MC285 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Maeda load chart and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
MC285C-2 · AT A GLANCE
Max capacity6,210 lbs
Max hook height28′ 6″
Max reach26′ 11″
Operating weight4,765 lbs
PowerDiesel / 208-230V electric
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Maeda load chart.
