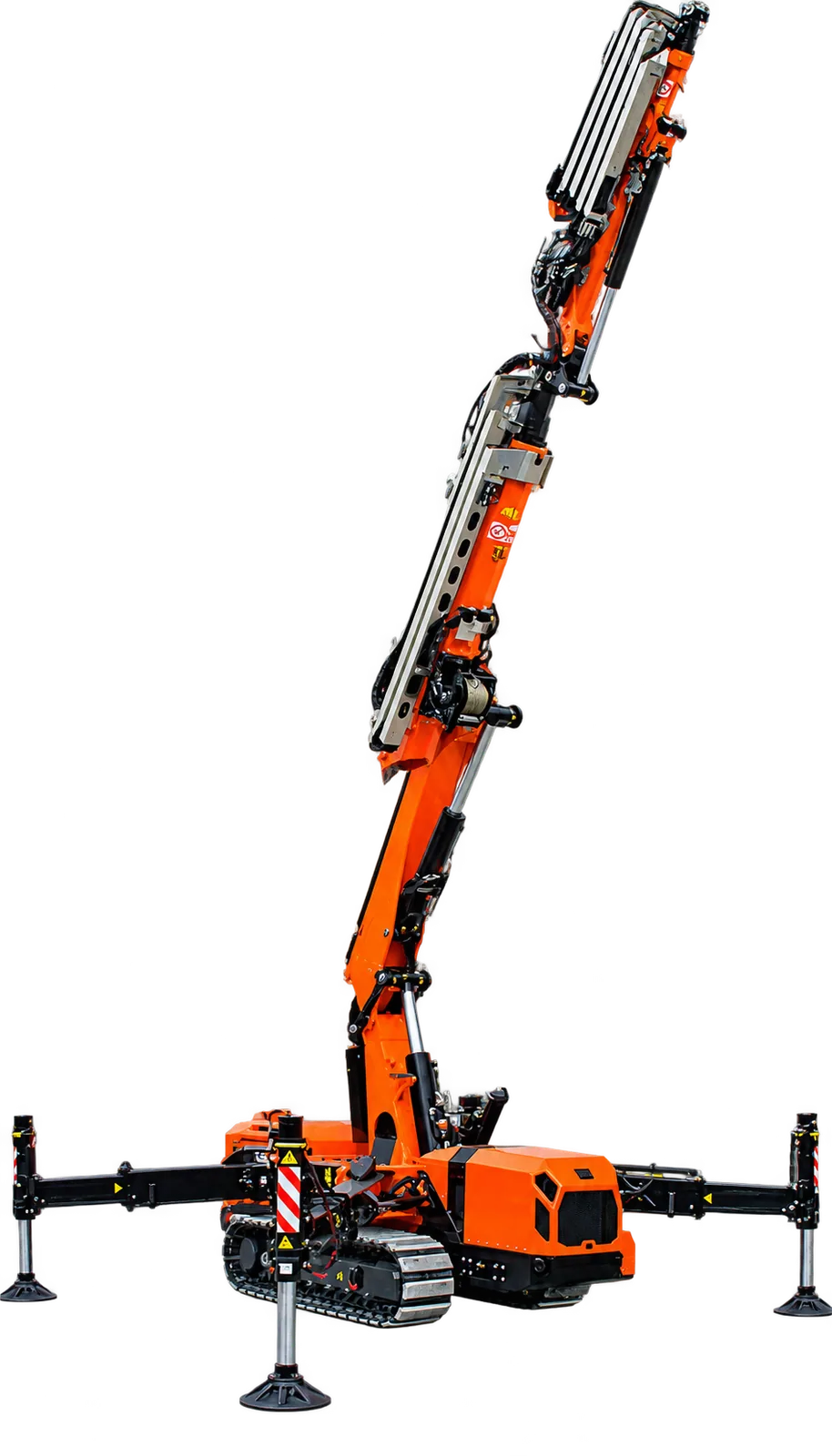

JF235
ARTICULATED CRAWLER CRANERENT + BUYDIESEL · ELECTRIC OPTION
A compact knuckle-boom crawler crane: the flexibility of an articulated boom on a mini crane base, up to 13,560 lb with three boom articulations for pass-over and negative-angle work. Now offered full-electric (JF235CL lithium) for clean, quiet, zero-emission operation.
SPECIFICATIONS
Jekko JF235 at a glance.
Max lifting capacity (base)13,560 lb
Max tip height82′ 0″
Max working radius74′ 6″
Transport dimensions (L×W×H)16′1″ × 5′11″ × 9′2″
Operating weightCDH ~20,878 lb · CL battery ~21,560 lb
Power sourceDiesel (full-electric JF235CL option)
JF235 Technical Data Sheet PDFJUN 2025 REV1.2 · PDF DOWNLOADJekko load charts, all configs CHARTPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTECompatibility + setup notes SPECMATCHED TO YOUR MACHINE AND SITE BY CLEArticulated crawler crane guide: reach over, under, and around. GUIDECLE PLANNING GUIDE · READ ONLINEOutrigger pads and ground protection: sizing the pad from the reaction, not the guess. GUIDECLE PLANNING GUIDE · READ ONLINE
Rated capacity applies at base configuration only. Allowable load at your radius, height, and outrigger setup is governed by the Jekko load chart - send us the pick and we will verify it.
Capacity varies with radius, height, and outrigger setup per the Jekko load chart.
