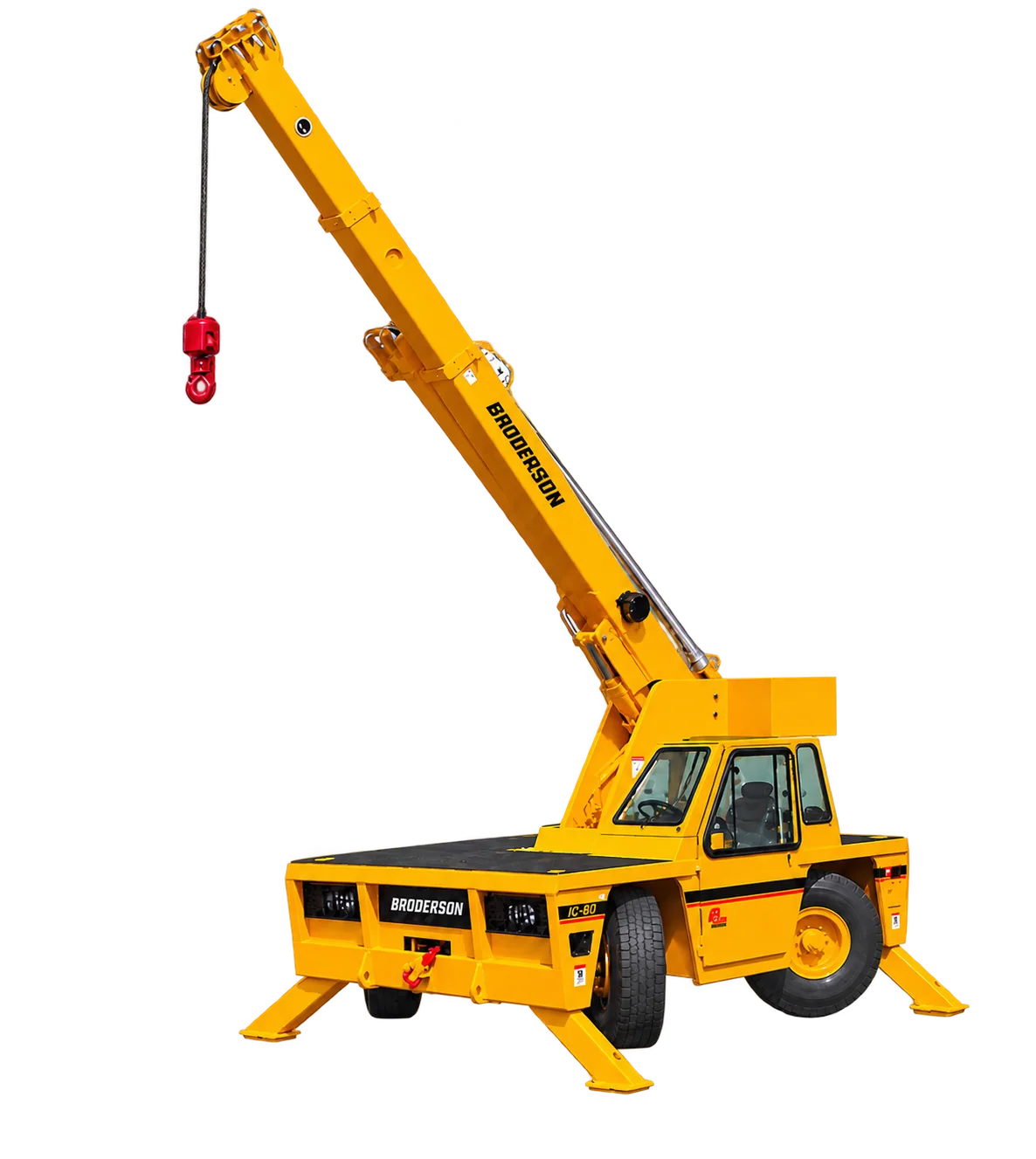

IC-80-3G
CARRY DECK CRANERENT + BUY360° CONTINUOUS ROTATIONDUAL FUEL / DIESEL
The largest Broderson carry deck in the CLE lineup · for heavier plant maintenance, machinery moving, and industrial rigging picks, on rubber or on outriggers. Full specifications are being confirmed from the Broderson data sheet; capacity and dimensions available on request today.
18,000 lbsMAX CAPACITY
30′ 0″MAX BOOM LENGTH
46′ 4″MAX HOOK HEIGHT
40′MAX RADIUS
360°CONTINUOUS ROTATION
SPECIFICATIONS
The numbers that decide the job.
Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Broderson load chart. Send us the pick and we'll verify it.
Figures are from the Broderson IC-80-3G load chart. Loads above 9,000 lbs require the two-part load line; allowable load at your radius comes from the chart, which CLE verifies for every quoted pick.
Send Us Your Pick →PERFORMANCE
Max lifting capacity18,000 lbs (two-part line)
Max boom length30′ 0″ (11′ 6″ retracted)
Max tip height46′ 4″ hook height
Capacity at radius18,000 lbs @ 5′ · over front on outriggers
DIMENSIONS + WEIGHT
Overall width6′ 6″ w/ cab
Overall height7′ 3″
Overall length17′ 10″
Base weight16,660 lb 2WD · ~17,260 lb 4WD
Typical weight17,530 lbs · with operator, boom extension and diesel
Deck capacity14,000 lb · ~64 sq ft deck
POWER + DRIVE
Power sourceDual fuel or diesel
Drive + steering10′ 0″ turning radius · 9′ 6″ aisle
Indoor useConfirm ventilation with CLE
PICK & CARRY + SETUP
Pick & carry (on rubber)11,400 lbs over front · 9,400 lbs at 360°
Outrigger setupFour hydraulic outriggers · independent controls
Outrigger point loadsSimulated by CLE pre-dispatch
WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Plant + facility maintenanceMotors, pumps, and process equipment picked and placed inside operating facilities.
U2Machinery movingPick-and-carry moves across the plant floor without re-rigging to a second machine.
U3Low-headroom picksCompact boom geometry works under ceilings, pipe racks, and mezzanines.
U4Warehouse + industrial steelMiscellaneous steel and equipment supports set inside the building.
U5Rigging supportA second machine for tailing, positioning, and load transfers.
U6Yard + shippingLoading, unloading, and staging heavy components around the yard.

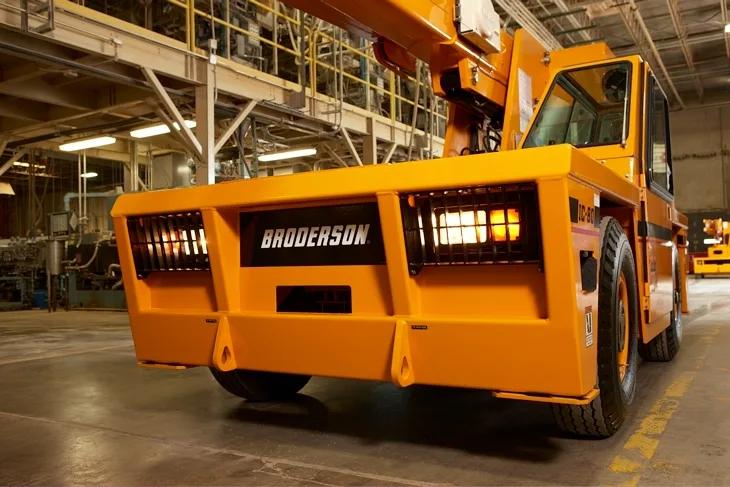

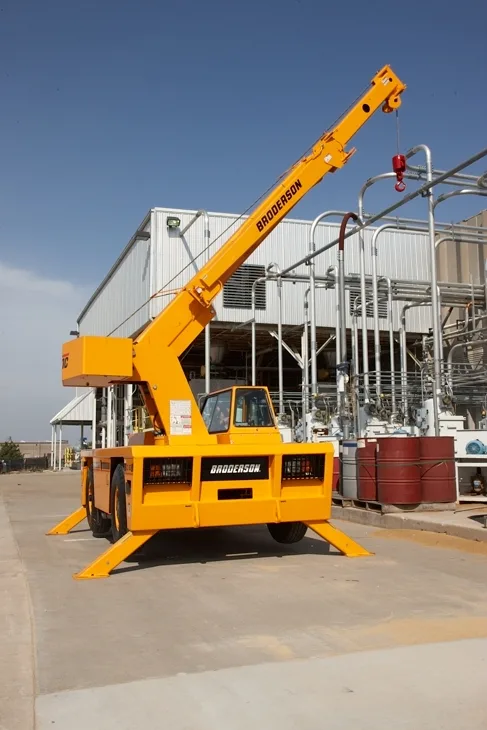

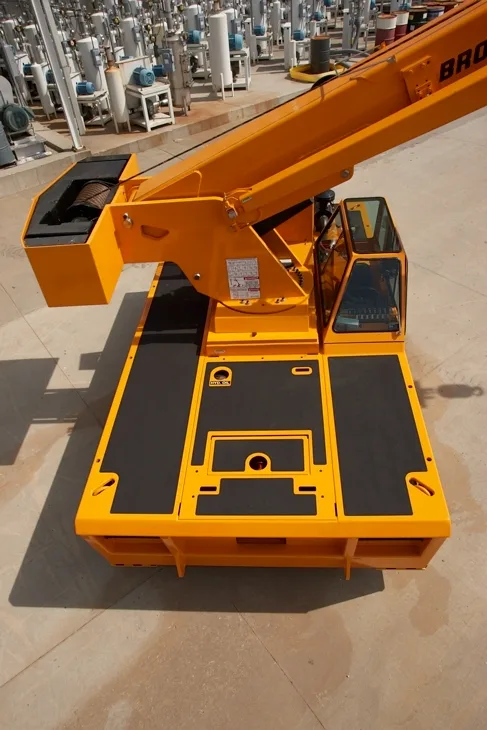

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFIC-80-3G specification sheetREQUEST FROM CLE↓CHARTBroderson load chartsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDECarry deck crane rental guide: deck, boom, rubber, and outriggers.CLE PLANNING GUIDE · READ ONLINE→GUIDEJib configurations explained: more reach, a different chart.CLE PLANNING GUIDE · READ ONLINE→POSTWhy Carry Deck Cranes Belong Inside Industrial PlantsFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 3 CARRY DECK CRANES
The IC-80-3G against its siblings.
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER
Step up the lineup.
IC-40-2CThe mid-size Broderson →
IC-35-2ADiesel
CAPACITY8,000 lbs
MAX HEIGHT33′ 6″
MAX REACH27′
WEIGHT · POWER7,100 lbs · Gas/Diesel
SPX1280Battery Electric110V
CAPACITY17,637 lbs
MAX HEIGHT87′ 7″
MAX REACH65′ 6″
WEIGHT · POWER15,653 lbs · Battery Electric
06 / GET IC-80-3G PRICING
Put the IC-80-3G on your job.
Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Broderson load chart and quote rental or purchase · usually the same business day.
IC-80-3G · AT A GLANCE
Max capacity18,000 lbs
Max boom length30′ 0″
Deck capacity14,000 lb · ~64 sq ft deck
Base weight16,660 lb 2WD · ~17,260 lb 4WD
PowerDual Fuel / Diesel
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Broderson load chart.
