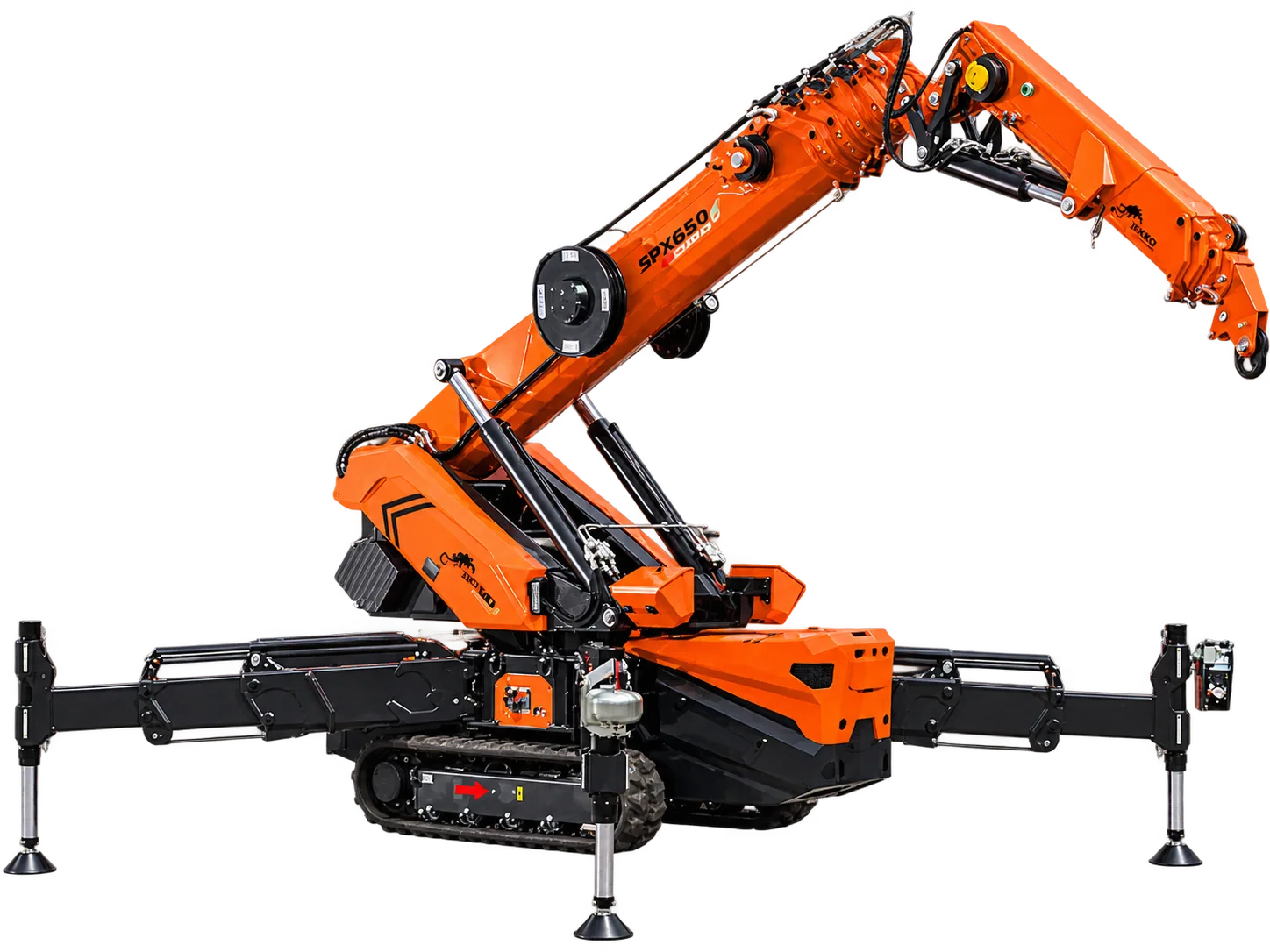

SPX650
MINI CRANERENT + BUYBATTERY ELECTRIC · 110V CHARGING
Serious capacity in a compact crawler: 11,020 lbs of lift, 77 feet of hook height, and 65 feet of reach, all on zero-emission lithium power. The machine that replaces a street crane on picks the smaller machines cannot touch.
11,020 lbsMAX CAPACITY
77′ 5″MAX HOOK HEIGHT
65′ 7″MAX HORIZONTAL REACH
13,007 lbsOPERATING WEIGHT
ELECTRICBATTERY · 110V CHARGING
SPECIFICATIONS
The numbers that decide the job.
Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Jekko load chart. Send us the pick and we'll verify it.
Specifications are from the Jekko SPX650 technical data sheet (Rev 2.0). Allowable capacity depends on radius, hook height, and outrigger configuration; CLE verifies every pick against the applicable load chart.
Send Us Your Pick →COMPARE THIS MACHINEPut the SPX650 side by side with another mini crane, spec for spec.Open the full comparison tool →
PERFORMANCE
Max lifting capacity (base configuration)11,020 lbs
Max hook height77′ 5″
Max horizontal reach65′ 7″
Capacity at radius11,020 lbs @ 3.3′ (5,000 kg @ 1.0 m)
Pick & carryUp to ~1,750 lbs under approved conditions
Charge time0-80% in ~3 hours · works while charging
DIMENSIONS + WEIGHT
Operating weight13,007 lbs
Transport width3′ 4″
Transport height6′ 10″
Transport length14′ 8″
Track ground pressure11.2 lb/in²
Max outrigger load10,360 lbs
POWER + CONTROL
Power sourceBattery electric · 110V charging
Battery46 V · 400 Ah
Motor power16 kW
ControlRadio remote control
ChargingExternal 48 V charger (3-phase 400 V / 1-phase 230 V)
Indoor useYes, occupied buildings
BOOM + SETUP
Boom length13′ 1″ – 50′ 6″
Lifting working angle0° to 82°
Max gradeability17° (30%)
Fly jib optionsJIB2000GX · JIB1200.3HX · JIB500GR
Outrigger setupMulti-position · min 9′2″×9′2″ / max 14′9″×14′9″
Outrigger point loadsSimulated by CLE pre-dispatch
KEY FEATURES
What sets the SPX650 apart.
Lithium battery power
- Emission-free indoor operation
- Onboard 110V charging, works while charging
- Full-workday runtime, maintenance-free
11,020 lb in a compact crawler
- Fits through tight access on tracks
- Multi-position outriggers for restricted setups
- Radio remote for line-of-sight placement
Configurable reach
- Hydraulic luffing jib options
- Searcher hook & auxiliary winch
- J-Link by TrackUnit remote monitoring
WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Heavy glass + curtain wallOversized IGUs and heavy facade assemblies placed at height from a compact setup.
U2Steel erection77 feet of hook height covers mid-rise structural steel without a tower or truck crane.
U3Machinery moving + rigging11,020 lbs of capacity for plant equipment, presses, and process machinery.
U4Data centersTransformers, switchgear, and CRAC units set indoors on zero-emission power.
U5Rooftop equipment65 feet of reach places units deep onto a roof from ground level.
U6Indoor industrialFactory and warehouse lifting on lithium power · no fumes in occupied space.

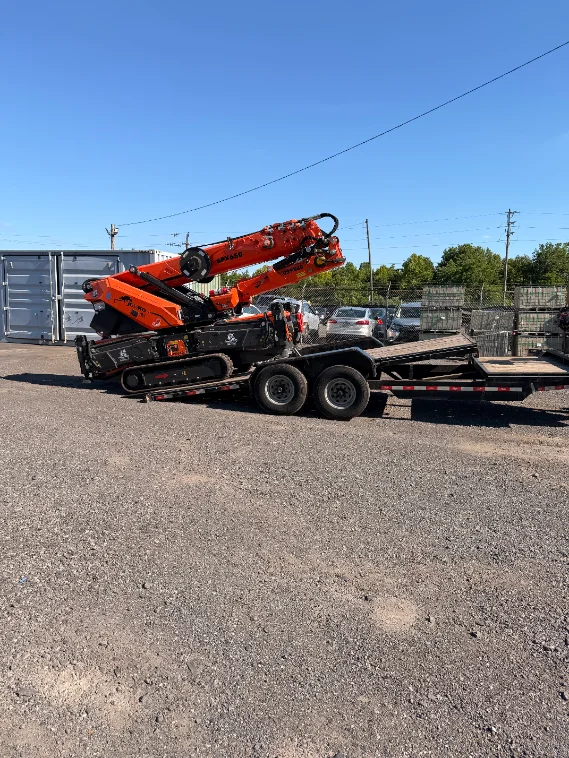

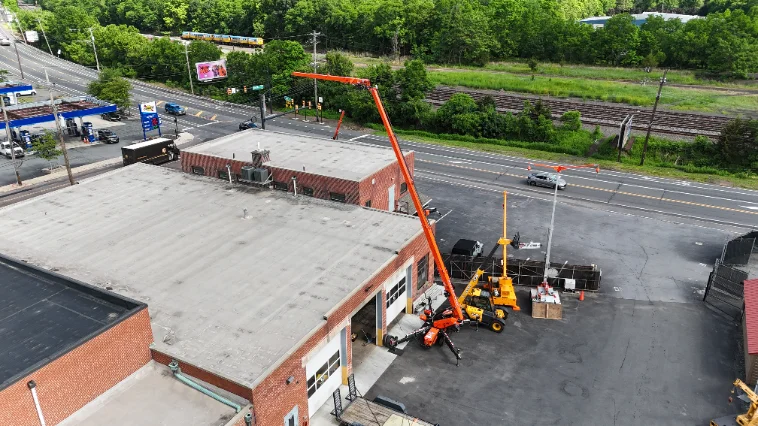

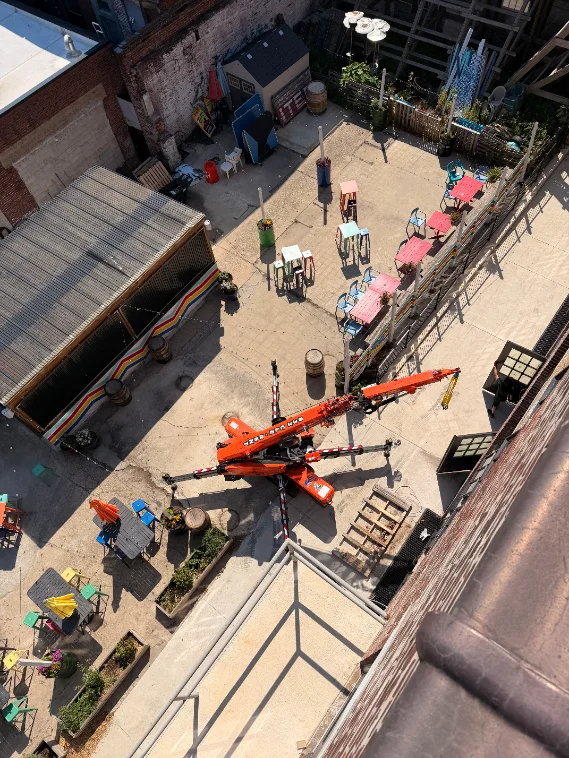

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFSPX650 data sheetREQUEST FROM CLE↓PDFSPX650 PresentationFEATURES + CONFIGURATIONS↓PDFSPX650 Benefits OverviewWHY THE SPX650↓CHARTJekko Load Charts, All ConfigurationsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEJib configurations explained: more reach, a different chart.CLE PLANNING GUIDE · READ ONLINE→POSTJekko J-Zones Explained: What J0 Through J7 Mean for Your LiftFROM THE CLE BLOG · READ ONLINE→POSTJekko Outrigger Configurations: Planning Around Jobsite ObstaclesFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES
The SPX650 against its siblings.
MAX CAPACITY (LBS)
MAX HOOK HEIGHT
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER
Step up the lineup.
SPX532.2Lighter lithium machine for smaller picks →
SPX1280Battery Electric110V
CAPACITY17,637 lbs
MAX HEIGHT87′ 7″
MAX REACH65′ 6″
WEIGHT · POWER15,653 lbs · Battery Electric
MC405Diesel / Electric230V 3-PHASE
CAPACITY8,480 lbs
MAX HEIGHT55′ 1″
MAX REACH52′ 5″
WEIGHT · POWER12,440 lbs · Diesel / Electric
06 / GET SPX650 PRICING
Put the SPX650 on your job.
Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote rental or purchase · usually the same business day.
SPX650 · AT A GLANCE
Max capacity11,020 lbs
Max hook height77′ 5″
Max reach65′ 7″
Operating weight13,007 lbs
PowerBattery Electric · 110V charging
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Jekko load chart.
