HOME/MINI CRANES/JEKKO SPX328 EVO
JEKKO

SPX328 EVO

MINI CRANERENT + BUYBATTERY ELECTRIC · 110V CHARGING

The smallest crawler in the Jekko lineup and the one that goes where nothing else will: battery-powered, radio remote controlled, and light enough for finished floors and service elevators. The go-to machine for indoor glass setting, machinery placement, and occupied-building work.

Request PricingSpecificationsSPX328 EVO Technical Data Sheet ↓
Jekko SPX328 EVO mini crane
5,950 lbsMAX CAPACITY
42′ 8″MAX HOOK HEIGHT
34′ 5″MAX HORIZONTAL REACH
5,290 lbsOPERATING WEIGHT
ELECTRICBATTERY · 110V CHARGING
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Jekko load chart. Send us the pick and we'll verify it.

Figures are from the Jekko SPX328 technical data sheet (REV3.2). Allowable capacity still depends on radius, hook height, and outrigger configuration, so CLE verifies every pick against the applicable load chart.
Send Us Your Pick →
COMPARE THIS MACHINEPut the SPX328 side by side with another mini crane, spec for spec.
VS SPX527VS SPX532.2VS SPX650VS SPX1280VS MC285C-2VS MC305VS MC405
Open the full comparison tool →
PERFORMANCE
Max lifting capacity (at 3′ 3″ radius, main boom)5,950 lbs
Max hook height (main boom)34′ 1″
Max hook height (JIB600.1MX)42′ 8″
Max horizontal reach (main boom)26′ 3″
Max horizontal reach (JIB600.1MX)34′ 5″
Capacity at radius6,173 lbs @ 3.3′ (2,800 kg @ 1.0 m)
DIMENSIONS + WEIGHT
Operating weight (dry)5,290 lbs
Transport width2′ 5″
Transport height5′ 3″
Transport length9′ 10″
Track ground pressure8.53 lb/in²
Max outrigger load4,630 lbs
POWER + CONTROL
Power sourceBattery electric · 110V charging
Battery48 V · 210 Ah
Motor power7 kW
ControlRadio remote control
Slewing360° continuous
Charging110 V 1-ph, or ext. 3-ph 400 V
Indoor useYes, occupied buildings
BOOM + SETUP
Boom length8′ 2″ to 27′ 11″
Lifting working angle0° to 78°
Fly jibs1000GX · 600.1MX · 500.1EX
Derated configuration1,950 lb manufacturer-rated option · 42′ 8″ height · 34′ 5″ reach
Travel speed (slow / fast)0.8 / 1.8 mph
Max gradeability18° (32%)
Outrigger setupMulti-position + EVO-KIT pick & carry
Lifting classA3 · EN 13000:2014
KEY FEATURES

What sets the SPX328 EVO apart.

Fits through a 2’5″ doorway
  • One of the narrowest tracked cranes
  • Sets up inside finished interiors
  • 5,950 lb capacity from a compact base
Lithium battery power
  • Emission-free indoor operation
  • Onboard 110V charging
  • Full-workday runtime, maintenance-free
EVO-KIT stability
  • J2–J7 stabilized load charts
  • Multi-position outriggers
  • Radio remote line-of-sight control
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Indoor glass settingStorefront and interior glazing in occupied buildings, with zero emissions, no fumes, precise remote-control placement.
U2Machinery placementSetting equipment on mezzanines and in plant rooms where a forklift can’t reach and a big crane can’t enter.
U3Elevator-accessed floorsAt 5,290 lbs, the lightest path to putting real lifting capacity on an upper floor via the service elevator.
U4HVAC + mechanicalAir handlers, pumps, and coils lifted into mechanical rooms without demoing walls or roof openings.
U5Historic buildingsRestoration work with minimal floor loading and no combustion exhaust in sensitive interiors.
U6Confined courtyardsTracks through tight openings and sets up in spaces where outrigger footprint is the constraint.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

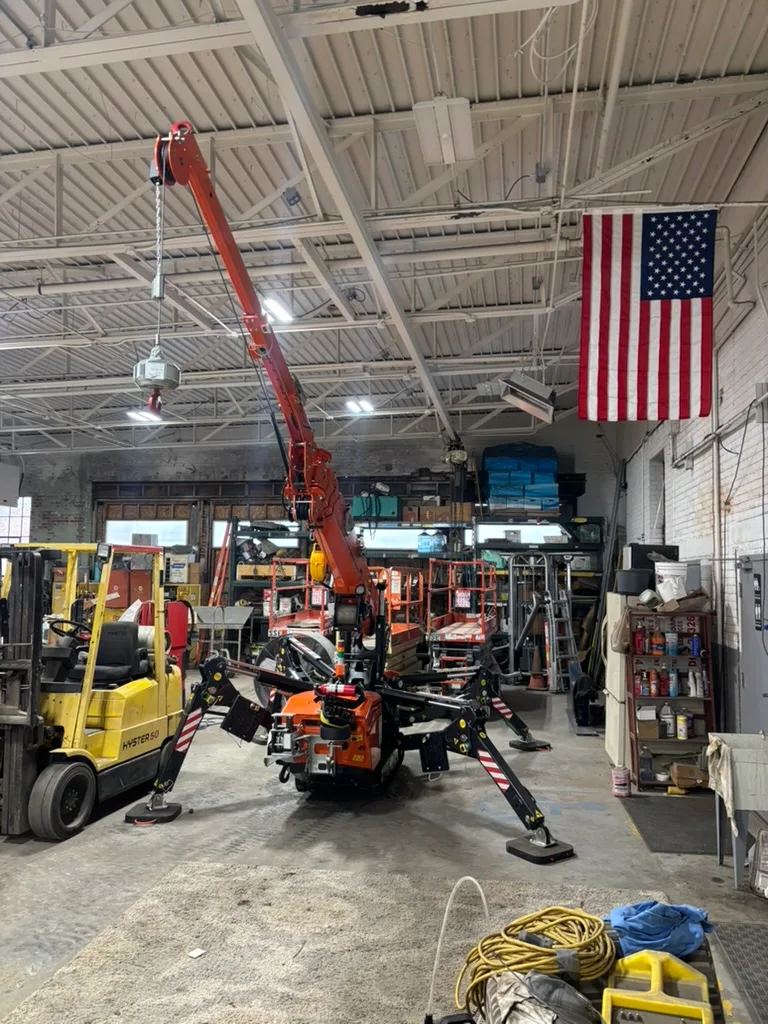

Jekko SPX328 EVO set up with boom raised inside the CLE service shop

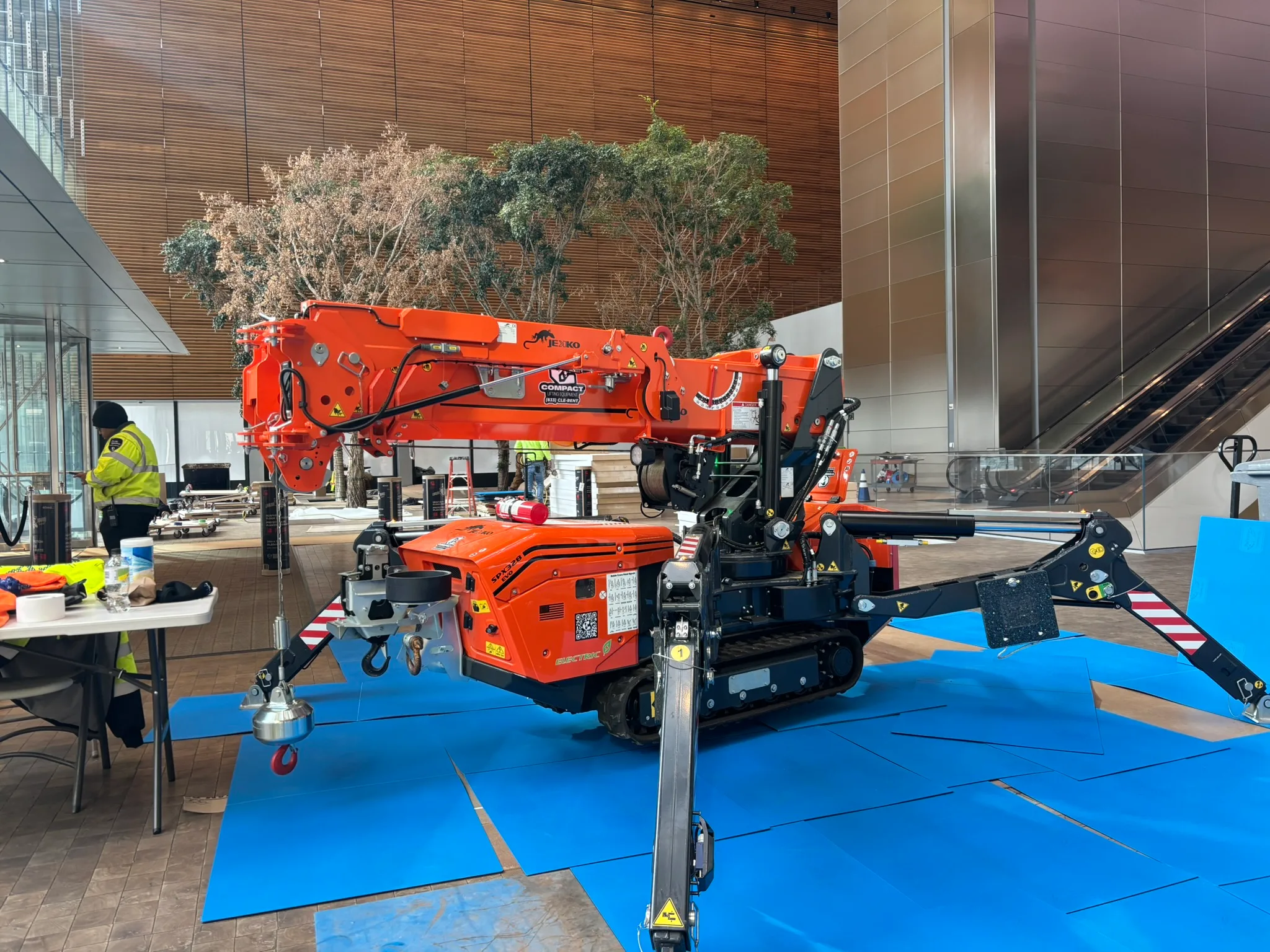

CLE-branded Jekko SPX328 EVO working on protective mats in a corporate lobby atrium

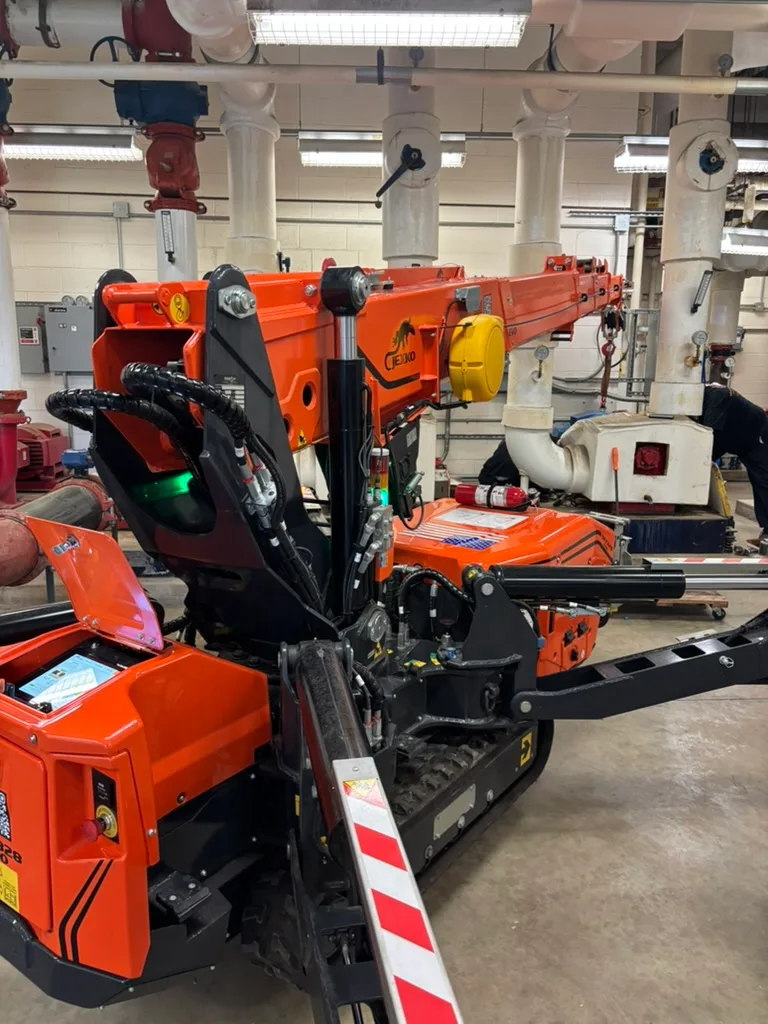

Jekko SPX328 EVO operating in a tight mechanical room among piping and pumps
PDFSPX328 EVO Technical Data SheetJAN 2026 REV3.2 · SPX328 CL + EVO-KIT · PDF DOWNLOAD↓PDFSPX328 EVO Product BrochureJEKKO · PDF DOWNLOAD↓CHARTJekko load charts, all jib configsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→POSTDerated Jekko Mini Cranes: The 1,950 lb Configuration ExplainedFROM THE CLE BLOG · READ ONLINE→POSTWhy Electric Mini Cranes Are Built for Indoor WorkFROM THE CLE BLOG · READ ONLINE→POSTJekko J-Zones Explained: What J0 Through J7 Mean for Your LiftFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES

The SPX328 EVO against its siblings.

Full comparison tool →
MAX CAPACITY (LBS)
SPX328 EVO
5,950
SPX527
5,950
SPX532.2
5,950
SPX650
11,020
SPX1280
17,637
MC285C-2
6,210
MC305
6,560
MC405
8,480
MAX HOOK HEIGHT
SPX328 EVO
42′ 8″
SPX527
44′ 3″
SPX532.2
55′ 10″
SPX650
77′ 5″
SPX1280
87′ 7″
MC285C-2
28′ 6″
MC305
41′ 0″
MC405
55′ 1″
TRANSPORT WEIGHT (LBS)
SPX328 EVO
5,290
SPX527
7,937
SPX532.2
6,060
SPX650
13,007
SPX1280
15,653
MC285C-2
4,765
MC305
8,750
MC405
12,440
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET SPX328 PRICING

Put the SPX328 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
SPX328 EVO · AT A GLANCE
Max capacity5,950 lbs
Max hook height42′ 8″
Max reach (with jib)34′ 5″
Operating weight5,290 lbs
PowerBattery Electric · 110V charging
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Jekko load chart.
