HOME/MINI CRANES/JEKKO SPX527
JEKKO

SPX527

MINI CRANERENT + BUYDIESEL POWER

The diesel workhorse of the 5,950-lb Jekko class: 44 feet of hook height and a transport width of just 3′ 7″, so it passes a standard double door and sets up on the other side. The machine for outdoor glazing, steel, and rooftop picks that start with tight access.

Request PricingSpecificationsSPX527 Technical Data Sheet ↓

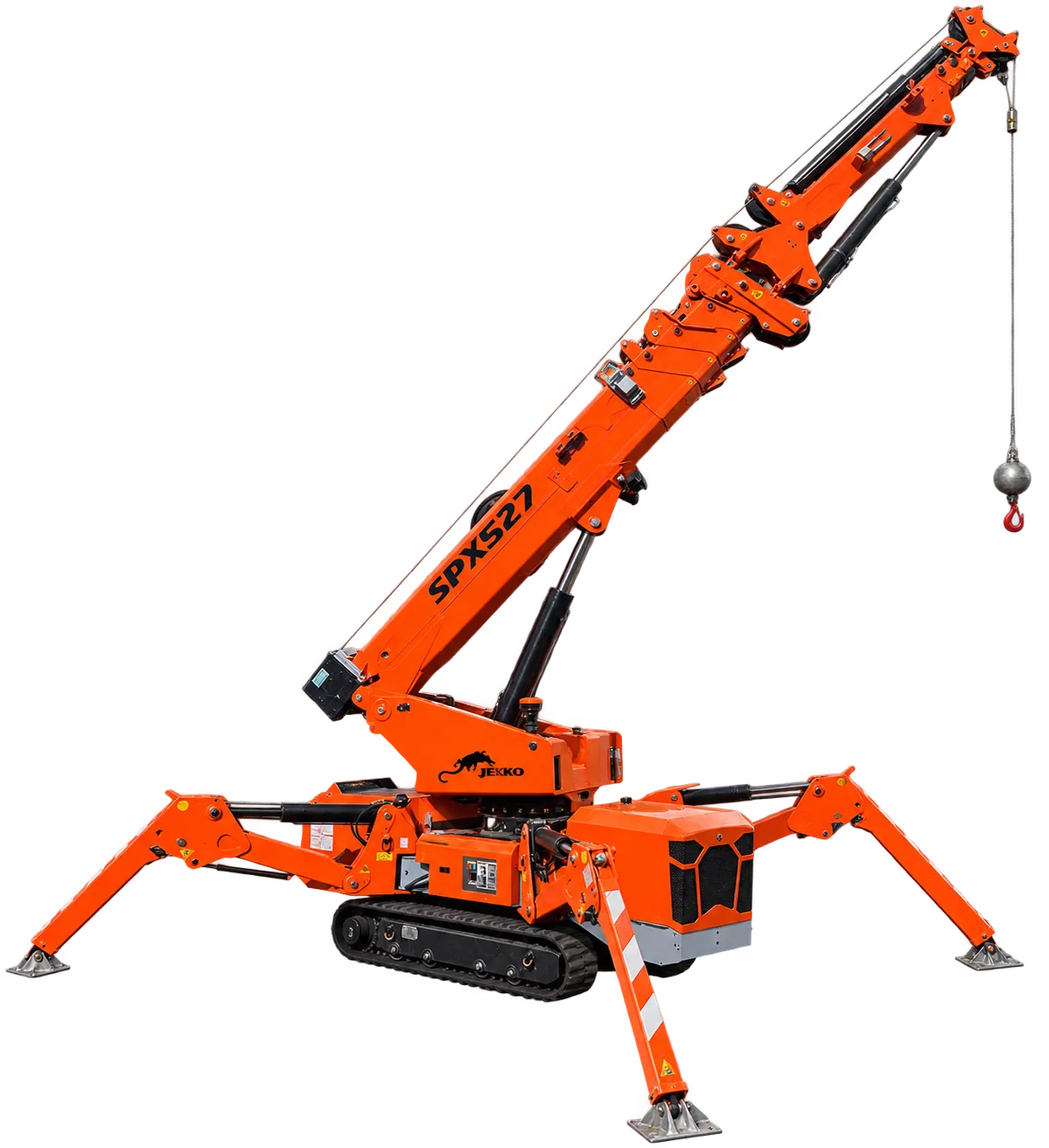

Jekko SPX527 mini crane
5,950 lbsMAX CAPACITY
44′ 3″MAX HOOK HEIGHT
36′ 8″MAX HORIZONTAL REACH
7,937 lbsOPERATING WEIGHT
DIESELDIESEL POWER
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Jekko load chart. Send us the pick and we'll verify it.

Figures marked TBC await the SPX527 technical data sheet. Allowable capacity depends on radius, hook height, and outrigger configuration; CLE verifies every pick against the applicable load chart.
Send Us Your Pick →
COMPARE THIS MACHINEPut the SPX527 side by side with another mini crane, spec for spec.
VS SPX328VS SPX532.2VS SPX650VS SPX1280VS MC285C-2VS MC305VS MC405
Open the full comparison tool →
PERFORMANCE
Max lifting capacity (base configuration)5,950 lbs
Max hook height44′ 3″
Max horizontal reach36′ 8″
Capacity at radius5,952 lbs @ ~6.6′ (2,700 kg @ 2.0 m)
DIMENSIONS + WEIGHT
Operating weight7,937 lbs
Transport width3′ 7″ (43″)
Transport height6′ 5″
Transport length13′ 7″
Track ground pressure7.54 psi
Max outrigger load5,952 lb per outrigger
POWER + CONTROL
Power sourceDiesel
ControlRadio remote control
Slewing360° continuous · ~1.0 rpm
Indoor useVentilation required, confirm with CLE
BOOM + SETUP
Boom length11.2-39.7 ft
Fly jib optionsHydraulic luffing jib
Outrigger setupMulti-position, dimensions TBC
Outrigger point loadsSimulated by CLE pre-dispatch
KEY FEATURES

What sets the SPX527 apart.

Diesel power
  • Runs on outdoor and remote sites
  • No charging infrastructure needed
  • Consistent all-day operation
Hydraulic luffing jib
  • Extends reach and hook height
  • Works over and around obstructions
  • Multiple verified jib configurations
Compact transport
  • Narrow tracked travel width
  • Fits tight access routes
  • Fast setup with multi-position outriggers
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Exterior glazing + curtain wall36 feet of horizontal reach places facade units from inside the property line.
U2Steel + misc metals44 feet of hook height covers structural and miscellaneous steel on low- and mid-rise work.
U3Machinery movingPlant equipment set through tight yards and doorways a truck crane cannot approach.
U4Rooftop equipmentReaches over parapets to set RTUs and condensers without a street closure.
U5Double-door accessAt 3′ 7″ transport width the SPX527 enters through openings from 43 inches.
U6HVAC + mechanicalAir handlers, pumps, and coils lifted into place on sites with restricted access.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

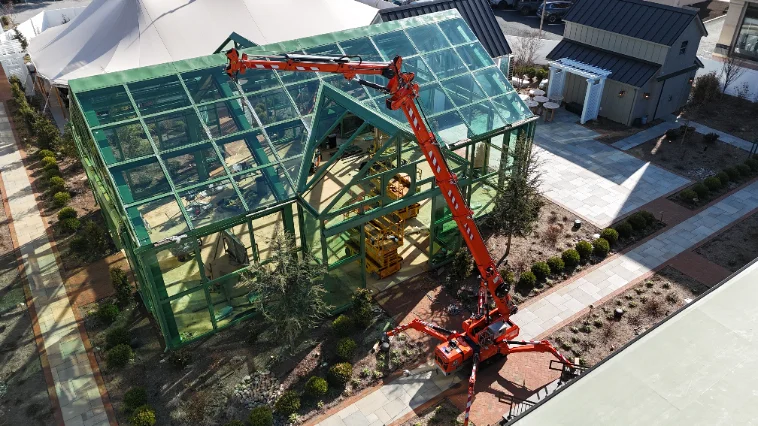

Jekko SPX527 mini crane on a customer jobsite, photo 1 of 3

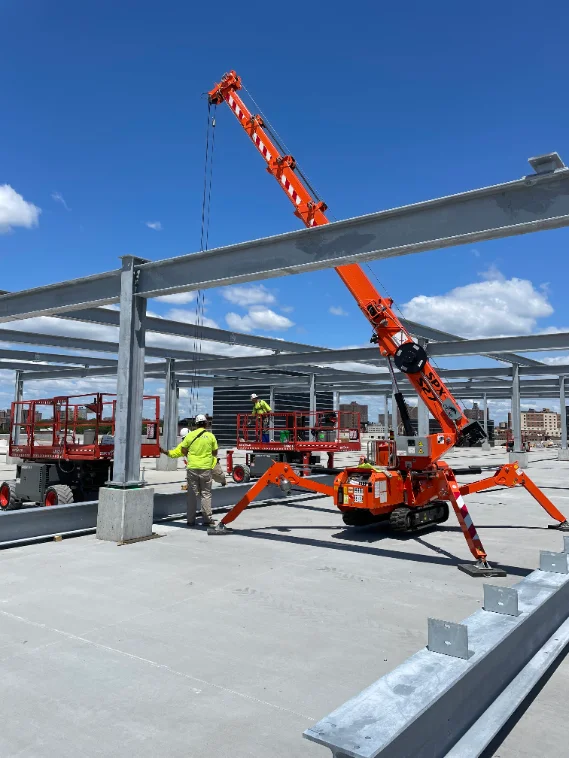

Jekko SPX527 mini crane on a customer jobsite, photo 2 of 3

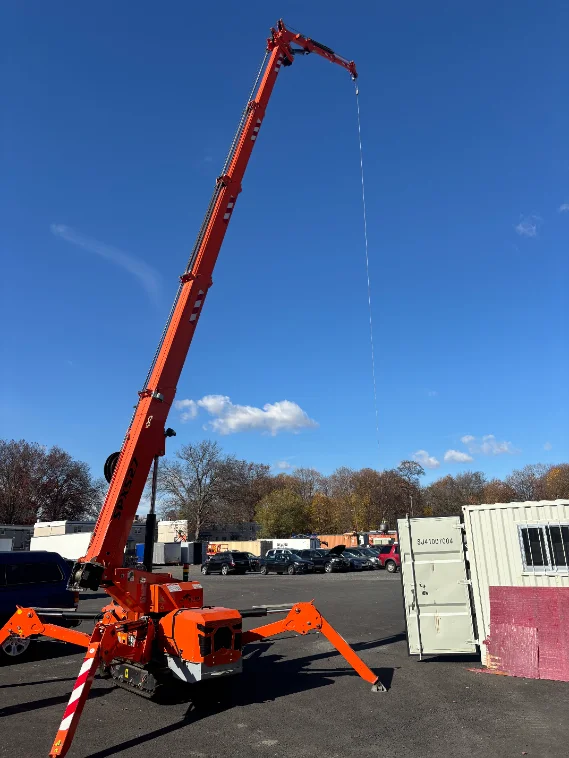

Jekko SPX527 mini crane on a customer jobsite, photo 3 of 3
PDFSPX527 Technical Data SheetSPX527CDH-2 · REV1 · PDF DOWNLOAD↓CHARTJekko Load Charts, All ConfigurationsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEJib configurations explained: more reach, a different chart.CLE PLANNING GUIDE · READ ONLINE→GUIDEWill Your Floor Hold a Crane? Floor Loading GuideCLE PLANNING GUIDE · READ ONLINE→GUIDEBattery, diesel, or dual power: which machine fits which building.CLE PLANNING GUIDE · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES

The SPX527 against its siblings.

Full comparison tool →
MAX CAPACITY (LBS)
SPX328 EVO
5,950
SPX527
5,950
SPX532.2
5,950
SPX650
11,020
SPX1280
17,637
MC285C-2
6,210
MC305
6,560
MC405
8,480
MAX HOOK HEIGHT
SPX328 EVO
42′ 8″
SPX527
44′ 3″
SPX532.2
55′ 10″
SPX650
77′ 5″
SPX1280
87′ 7″
MC285C-2
28′ 6″
MC305
41′ 0″
MC405
55′ 1″
TRANSPORT WEIGHT (LBS)
SPX328 EVO
5,290
SPX527
7,937
SPX532.2
6,060
SPX650
13,007
SPX1280
15,653
MC285C-2
4,765
MC305
8,750
MC405
12,440
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET SPX527 PRICING

Put the SPX527 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
SPX527 · AT A GLANCE
Max capacity5,950 lbs
Max hook height44′ 3″
Max reach36′ 8″
Operating weight7,937 lbs
PowerDiesel
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Jekko load chart.
