50.43
TRACKED AERIAL LIFTAUTHORIZED HYRAX DEALER · EASTERN PAAVAILABLE FOR PURCHASESELF-LEVELING · NO OUTRIGGERSDIESEL

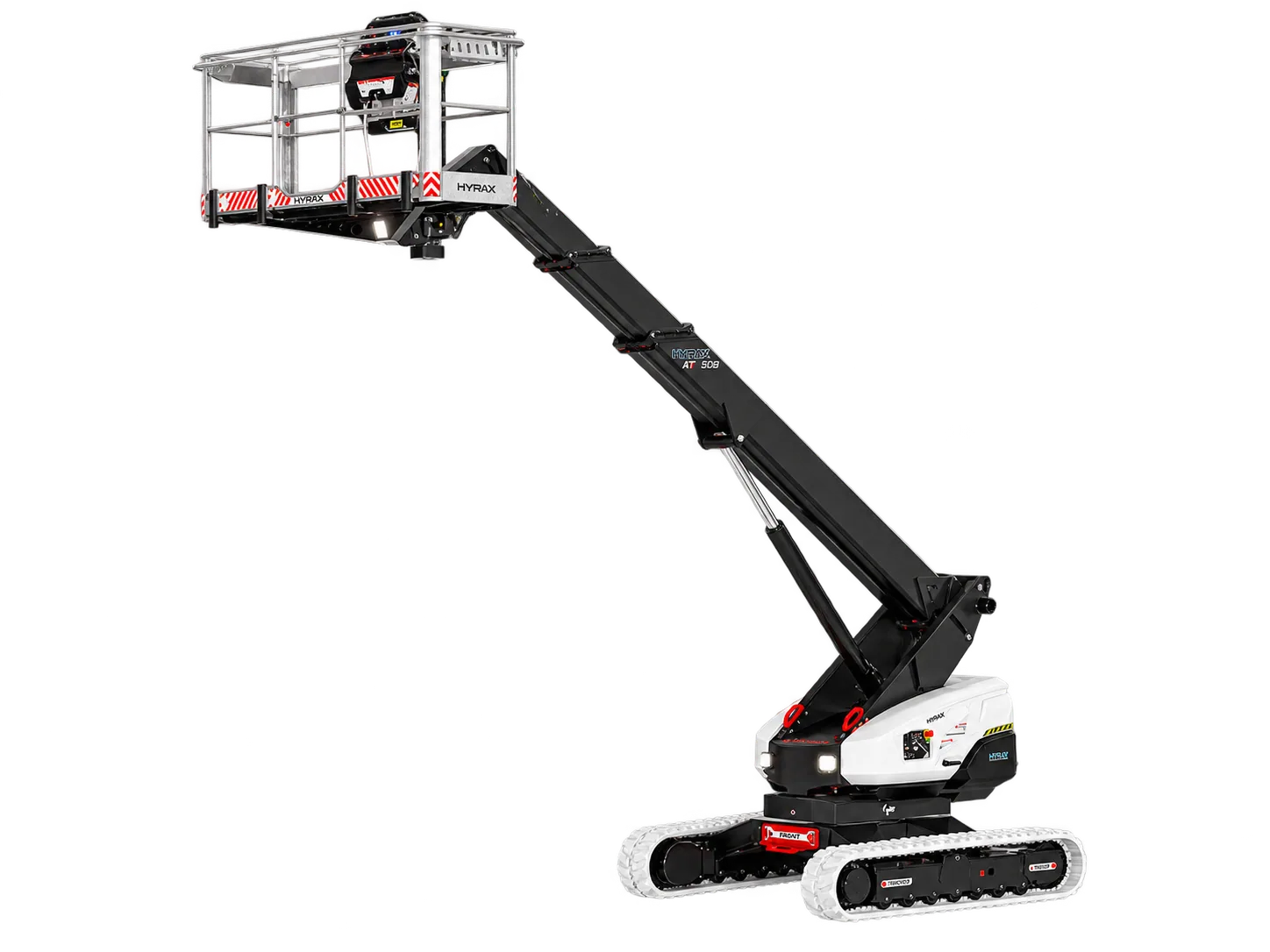

The big brother of the 27.41. A telescopic boom with a 180° rotating jib takes the basket to a 43-foot working height with up to 730 lbs on board - on the heavier, more rugged 50-series chassis with a larger counterweight and tougher tracks. No outriggers, tracked traction, Kubota diesel. Sold by CLE; not in our rental fleet.
43′ 4″MAX WORKING HEIGHT
32′ 10″MAX HORIZONTAL REACH
730 lbsPLATFORM CAPACITY
10,692 lbsMACHINE WEIGHT
TRACKEDCRAWLER UNDERCARRIAGE
SPECIFICATIONS
The numbers that decide the job.
Published figures apply at base configuration. Available outreach depends on basket load and lift position per the Hyrax working envelope. Send us the work point and we'll verify it.
Figures from the Hyrax 50.43 specsheet (NA, Version C) and Hyrax published materials. The working envelope varies with platform load and boom position, so CLE verifies every work point before purchase handover.
Send Us Your Pick →PERFORMANCE
Working height43′ 4″
Platform height36′ 9″
Horizontal reach32′ 10″ (varies with load)
Platform capacity727.5 lbs · 3 people + tools
Capacity at max reach440 lbs @ 32′ 10″ · 660 lbs @ 30′ 2″
Max drive height36′ 8″
RotationTurntable 360° · jib 180°
DIMENSIONS + WEIGHT
Transport dimensions15′ 3″ L × 7′ 3″ W × 7′ 7″ H
Platform size5′ 11″ × 2′ 8″ std (7′ 11″ option)
Machine weight10,692 lbs
Boom typeTelescopic boom + 180° jib
TracksNon-marking rubber · permanent width
POWER + DRIVE
EngineKubota 3-cyl. diesel · 18.5 kW
Fuel capacity11.4 gal (ATD)
Drive speed0 – 1.75 mph transport · 0.88 mph at height
Gradeability45% (25°)
Automatic leveling15° both axes
DrivetrainATD diesel (ATDe / ATE not yet in NA)
SAFETY + STANDARDS
Load protectionLoad + moment sensing, electronic cutout
Max people3 + tools and materials
ComplianceANSI A92 · CSA B354
OtherTilt alarm · crush prevention · platform weight system · 12V emergency lowering
OUTREACH vs. HEIGHT
Working height is the start of the conversation.
An aerial lift's outreach shrinks as the basket climbs, and basket capacity can change with configuration. Drag the slider to see the principle, then let us map your work point against the Hyrax 50.43 working envelope.
Schematic is illustrative only, not the Hyrax 50.43 working envelope. Never plan work from this diagram.39′ 4″WORKING HEIGHT · ILLUSTRATIVE
Horizontal outreach10 ft
5 ft32′ 10″ max reach
100%SELF-LEVELINGThe 50-series chassis levels itself continuously, up to 15° on both axes.
730 LBSBASKET CAPACITYA larger basket than the 27.41, with room for two workers plus tools.
180°ROTATING JIBTelescopic boom plus a 180° jib for up-and-over reach around obstacles.
24 HPKUBOTA DIESEL3-cylinder Tier 4 turbo diesel; electric variants not yet available in North America.
SELF-LEVELING CHASSIS
No outriggers.
No setup time.
Same idea as the 27.41, scaled up: the 50-series chassis is 100% self-leveling, so there are no outriggers to set, no cribbing, and no spread footprint to plan around - and you can keep driving at height.
A larger stationary counterweight, more rugged tracks, and a permanent track width let the 50.43 reach a 43-foot working height with up to 730 lbs in the basket, powered by a 24 hp Kubota diesel.
Figures from Hyrax published materials and the 50.43 specsheet. The working envelope varies with basket load and lift position. CLE verifies before dispatch.WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Facade + curtain wall accessGlazing and envelope crews working the building face without scaffold or swing stage.
U2Over-obstacle reachThe 180° jib reaches work points behind parapets, canopies, and rooftop equipment.
U3Slopes + soft groundTracked undercarriage climbs 25° grades and crosses lawns, gravel, and mud.
U4Atriums + high interiorsIndoor work at height over lobbies, atriums, and production floors.
U5Historic buildingsNon-marking tracks and a light footprint around sensitive structures.
U6Tight-access sitesNarrow transport width passes gates and doorways a truck-mounted lift cannot.

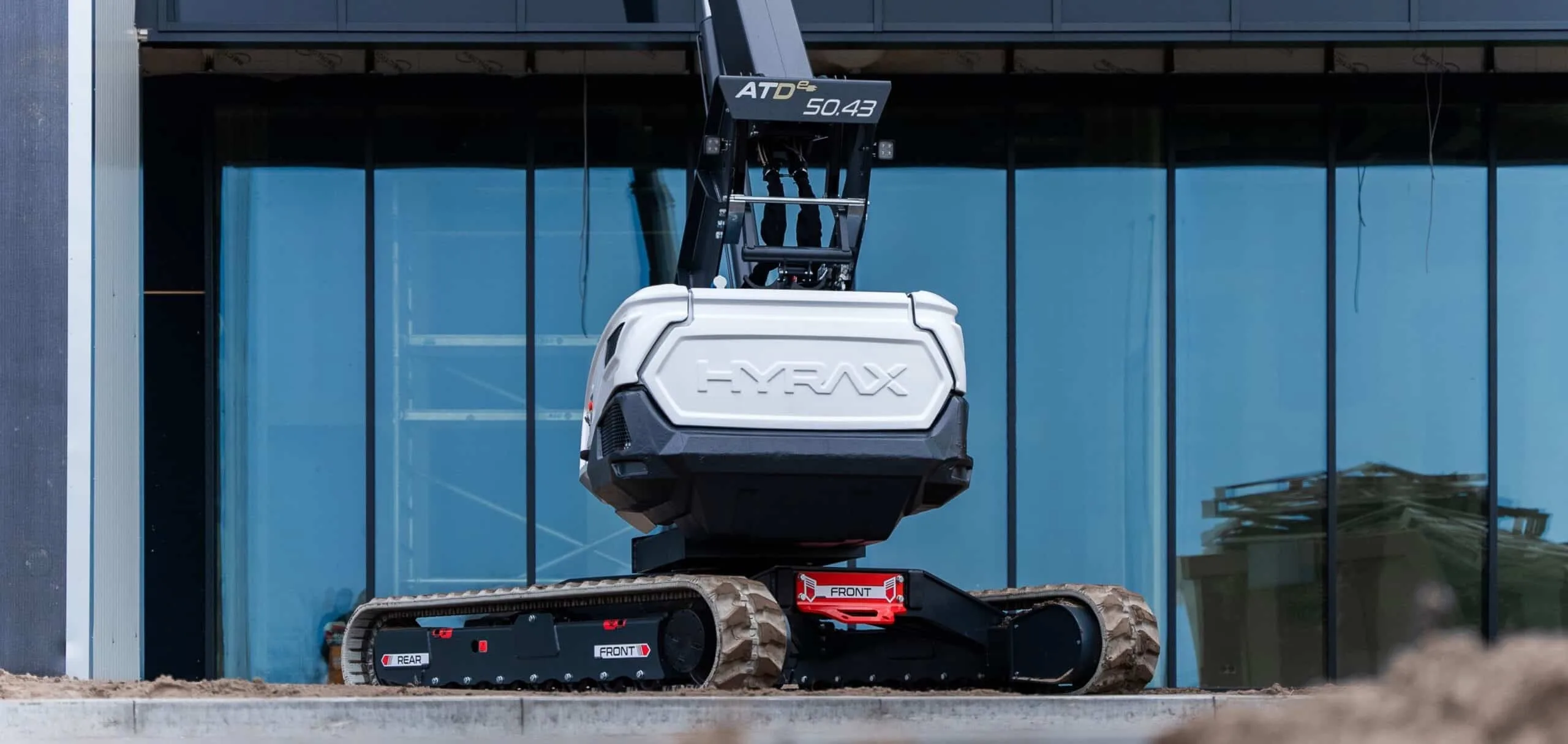

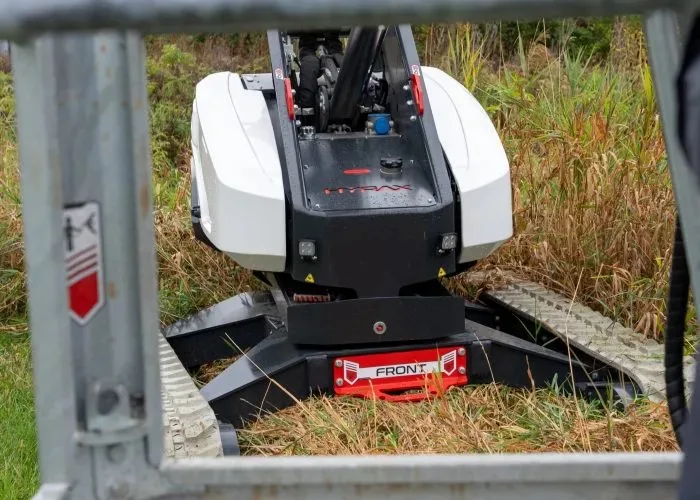

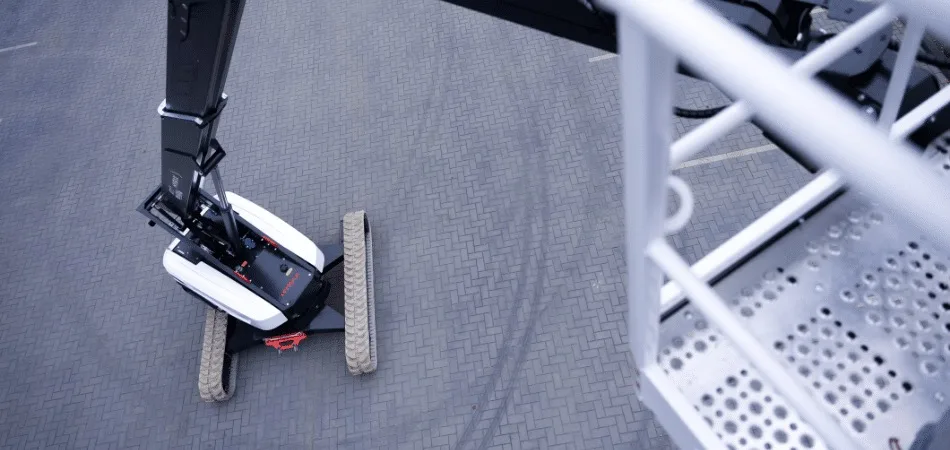

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFHyrax 50.43 specsheet (NA)REQUEST FROM CLE↓ENVWorking range diagramREACH BY PLATFORM LOAD · VERIFIED BY CLE↓FINPurchase + financing optionsLEASE OR FINANCE · ASK CLE→GUIDETracked aerial lift guide: Hyrax, spider lifts, and boom lifts compared.CLE PLANNING GUIDE · READ ONLINE→POSTTransporting a Hyrax: Tracked Lift Access and Trailer PlanningFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · THE HYRAX TRACKED LINE
The Hyrax 50.43 against its siblings.
PLATFORM CAPACITY (LBS)
WORKING HEIGHT
MACHINE WEIGHT (LBS)
Working height and platform capacity apply at base configuration only. Allowable load depends on boom position per the manufacturer working envelope; CLE verifies every work point.
THE REST OF THE LINE
Compare the Hyrax lineup.
BUYTRACKED AERIAL LIFT
FOR PURCHASEHyrax 50.45More capacity, jib-less mast →
Diesel
CAPACITY1,000 lbs platform
MAX HEIGHT45′ 3″
MAX REACH35′ 1″
WEIGHT · POWER10,494 lbs · Diesel
RENT + BUYHyrax 50.52The tallest Hyrax, 3-part boom →
Diesel
CAPACITY730 lbs platform
MAX HEIGHT52.8′
MAX REACH34.4′
WEIGHT · POWER11,222 lbs · Diesel
07 / GET HYRAX 50.43 PRICING
Own the Hyrax 50.43.
The 50.43 is a purchase machine - it is not in our rental fleet. Send the working height, outreach, basket load, and access dimensions, and we'll verify the pick against the Hyrax working envelope and quote a purchase, with financing options if you want them.
HYRAX 50.43 · AT A GLANCE
Working height43′ 4″
Horizontal reach32′ 10″
Platform capacity730 lbs
Machine weight10,692 lbs
PowerKubota diesel
AvailabilityPurchase (not rental)
Outreach and basket capacity vary with height and configuration per the Hyrax working envelope.
