HOME/TRACKED AERIAL LIFTS/HYRAX 27.41
HYRAX

27.41

TRACKED AERIAL LIFTAUTHORIZED HYRAX DEALER · EASTERN PARENT + BUYSELF-LEVELING · NO OUTRIGGERSDIESEL

No outriggers, no setup time. The 27.41 self-levels on its tracks up to 15 degrees, drives at full 41-foot working height, and squeezes through gates and old-building entrances at under 5 feet 10 inches wide. The tracked boom lift for slopes, soft ground, and tight sites.

Request PricingSpecificationsRequest Spec Sheet →

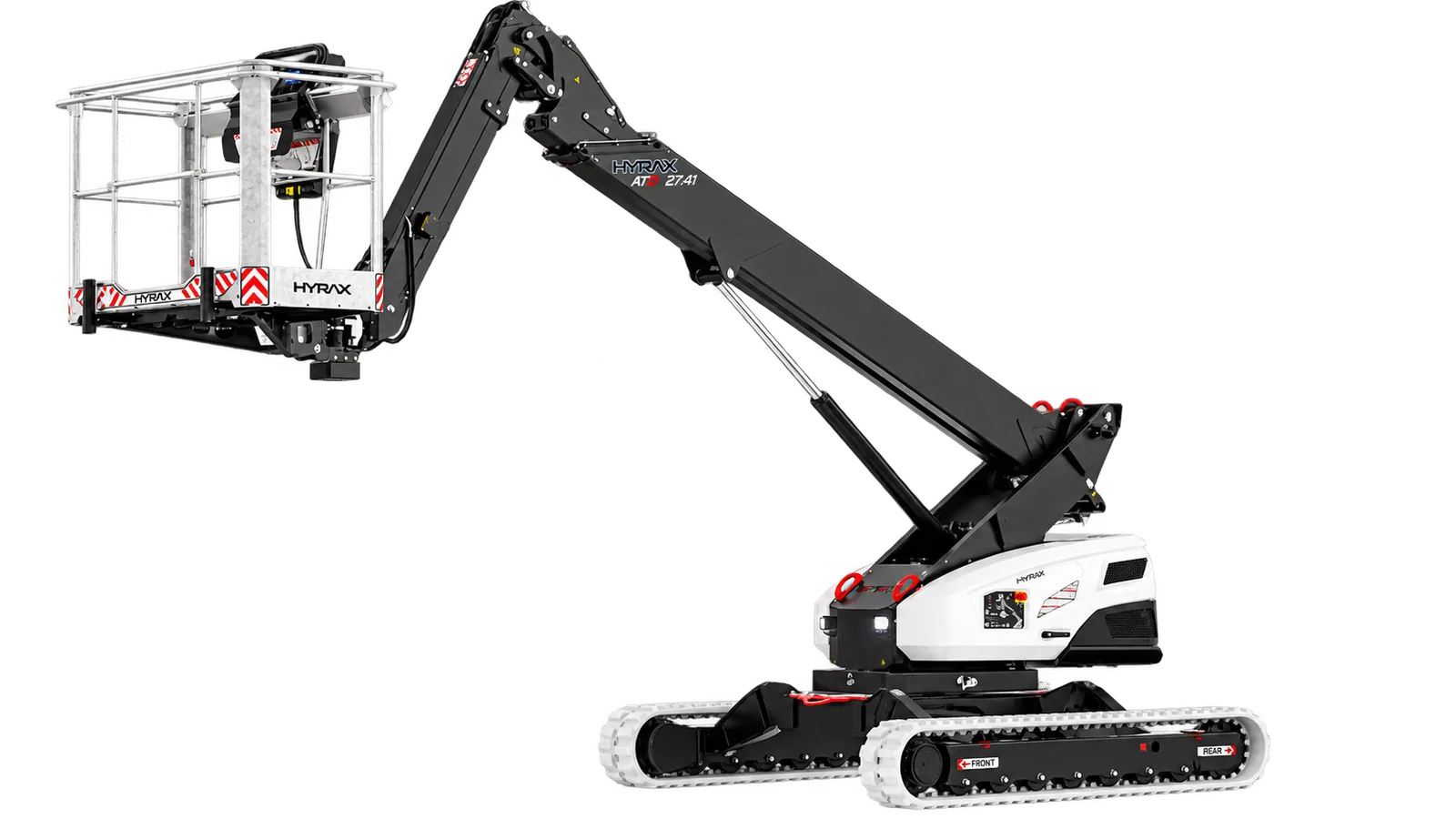

Hyrax 27.41 tracked aerial lift
41′ 4″MAX WORKING HEIGHT
28′ 8.5″MAX HORIZONTAL REACH
600 lbsPLATFORM CAPACITY
6,572 lbsTOTAL MASS
TRACKEDCRAWLER UNDERCARRIAGE
SPECIFICATIONS

The numbers that decide the job.

Published figures apply at base configuration. Available outreach depends on basket load and lift position per the Hyrax working envelope. Send us the work point and we'll verify it.

Figures are from the Hyrax Model 27.41 NA specification sheet. Outreach varies with platform load per the working range diagram (28′ 8.5″ at 220 lbs, 22′ 1.7″ at 600 lbs), so CLE verifies every work point.
Send Us Your Pick →
PERFORMANCE
Working height41′ 4″
Platform height34′ 9″
Horizontal reach28′ 8.5″ (varies with load)
Platform capacity600 lbs · 2 people + 150 lbs material
Travel heightDrives at full height
RotationPlatform 180° · jib 180° · turntable 360°
DIMENSIONS + WEIGHT
Stowed dimensions15′ 2.8″ L × 5′ 8.9″ W × 6′ 7.3″ H
Track width5′ 8.9″ stowed · 7′ 2.6″ extended
Total mass6,572 lbs
Ground clearance6.9″ (10.9″ tracks extended)
Platform size5′ 1″ × 2′ 7.5″
POWER + DRIVE
EngineKubota 18.5 kW 3-cyl diesel
Drive speed0 to 2.5 mph (0 to 1.25 at height)
Gradeability45% (25°)
Automatic bi-leveling15° / 15°
Fuel capacity11.4 gal
SAFETY
ComplianceANSI A92 / CSA B354
StabilityActive Stability Control · tilt alarm
Platform weighingIntegrated weight system
Emergency lowering12 V pump
TracksNon-marking rubber, standard NA
OUTREACH vs. HEIGHT

Working height is the start of the conversation.

An aerial lift's outreach shrinks as the basket climbs, and basket capacity can change with configuration. Drag the slider to see the principle, then let us map your work point against the Hyrax 27.41 working envelope.

Schematic is illustrative only, not the Hyrax 27.41 working envelope. Never plan work from this diagram.
36′ 8″WORKING HEIGHT · ILLUSTRATIVE
Horizontal outreach10 ft
5 ft28′ 8″ max reach
15° / 15°AUTO BI-LEVELINGThe chassis levels itself continuously on slopes up to 15 degrees in both axes.
0.25 MPHDRIVE AT FULL HEIGHTReposition along the work face without lowering the basket.
45%GRADEABILITYRubber tracks climb steep rough terrain a wheeled lift cannot.
0OUTRIGGERS TO SETNo pads, no cribbing, no spread footprint to plan around.
SELF-LEVELING CHASSIS

No outriggers.
No setup time.

Where a conventional boom lift needs outriggers set and cribbed before anyone goes up, the 27.41 simply levels itself. The tracked chassis auto bi-levels up to 15 degrees and keeps the basket working on slopes and rough ground.

And it keeps moving at height: reposition along a facade or work line at a safe 0.25 mph without coming down, on non-marking tracks that are gentle on finished surfaces.

Figures from Hyrax published materials. The drive-at-height envelope changes with basket weight and lift position. CLE verifies before dispatch.
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Facade + curtain wall accessGlazing and envelope crews working the building face without scaffold or swing stage.
U2Atriums + high interiorsIndoor work at height over lobbies, atriums, and production floors.
U3Slopes + soft groundTracked undercarriage climbs grades and crosses lawns, gravel, and mud.
U4Over-obstacle reachUp-and-over geometry reaches work points behind parapets and rooftop equipment.
U5Historic buildingsLight footprint and precise positioning around sensitive structures.
U6Tight-access sitesNarrow transport width passes gates and doorways a truck-mounted lift cannot.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

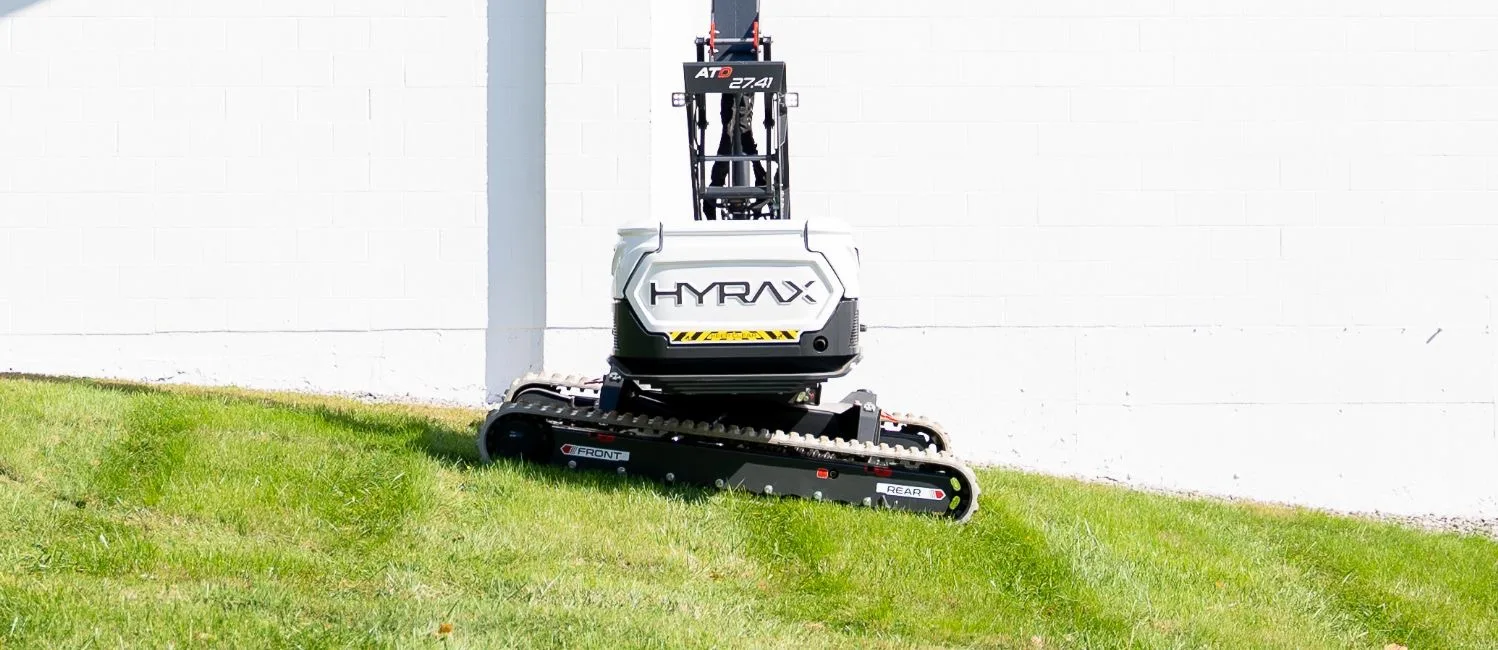

Hyrax 27.41 tracked aerial lift on a customer jobsite, photo 1 of 3

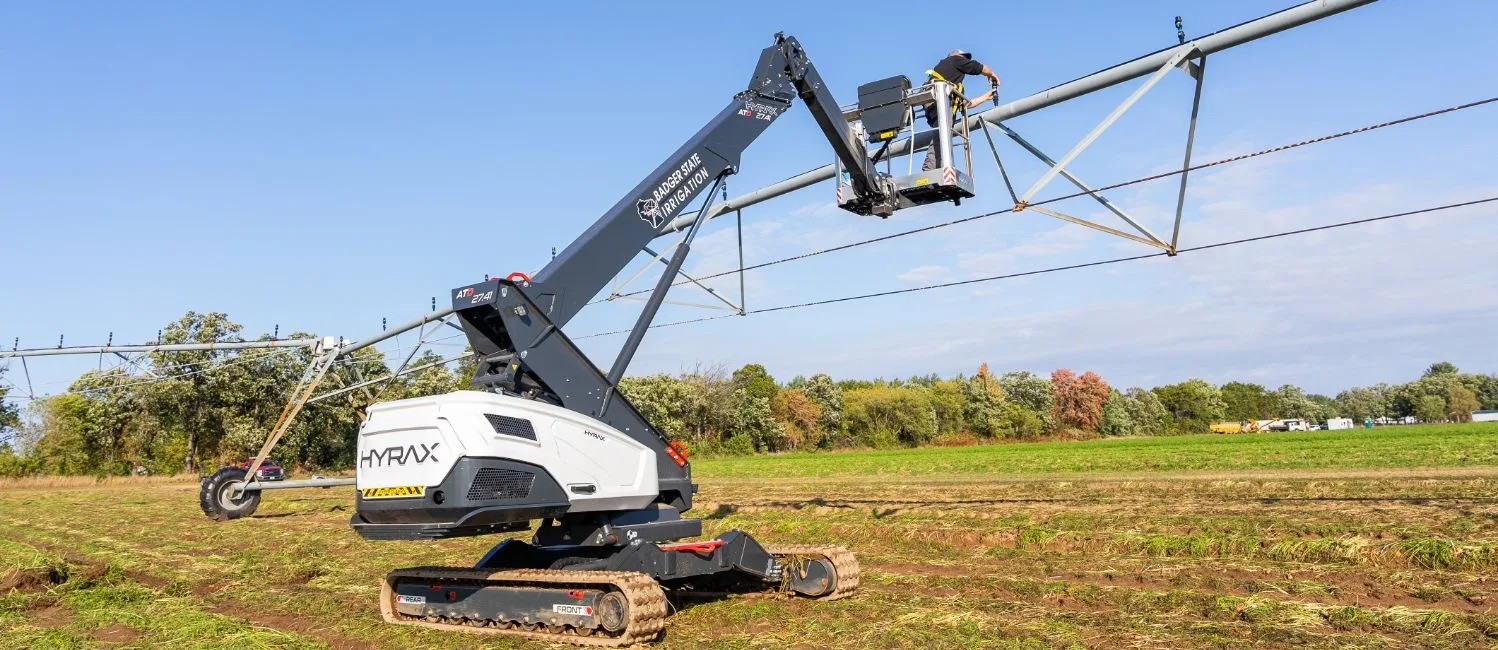

Hyrax 27.41 tracked aerial lift on a customer jobsite, photo 2 of 3

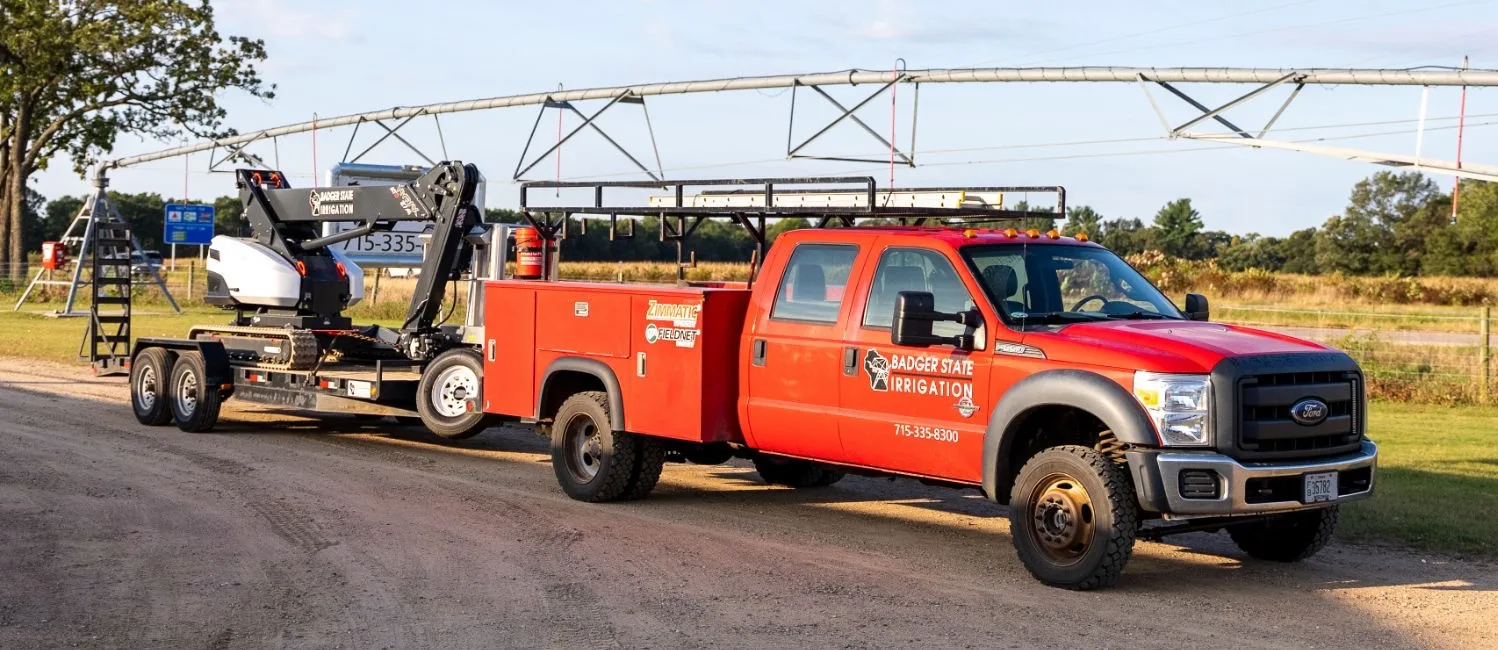

Hyrax 27.41 tracked aerial lift on a customer jobsite, photo 3 of 3
PDFHyrax 27.41 specsheet (NA)REQUEST FROM CLE↓ENVWorking range diagramsREACH BY PLATFORM LOAD · VERIFIED BY CLE↓SIMGround pressure reviewRUN PER-JOB FOR YOUR SURFACE↓GUIDETracked aerial lift guide: Hyrax, spider lifts, and boom lifts compared.CLE PLANNING GUIDE · READ ONLINE→POSTTransporting a Hyrax: Tracked Lift Access and Trailer PlanningFROM THE CLE BLOG · READ ONLINE→GUIDEBattery, diesel, or dual power: which machine fits which building.CLE PLANNING GUIDE · READ ONLINE→
HOW IT STACKS UP · BOTH TRACKED AERIAL LIFTS

The Hyrax 27.41 against its siblings.

Full comparison tool →
PLATFORM CAPACITY (LBS)
Hyrax 27.41
600
Hyrax 50.52
730
WORKING HEIGHT
Hyrax 27.41
41′ 4″
Hyrax 50.52
52.8 ft
TRANSPORT WEIGHT (LBS)
Hyrax 27.41
6,572
Hyrax 50.52
11,222
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
07 / GET HYRAX 27.41 PRICING

Put the Hyrax 27.41 on your job.

Send the working height, outreach, basket load, access dimensions, and dates. We'll verify the pick against the Hyrax working envelope and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
HYRAX 27.41 · AT A GLANCE
Working height41′ 4″
Horizontal reach28′ 8.5″
Platform capacity600 lbs
Total mass6,572 lbs
PowerKubota diesel
AvailabilityRent + Buy
Outreach and basket capacity vary with height and configuration per the Hyrax working envelope.
