MC305
MINI CRANERENT + BUYDIESEL / 208-230V ELECTRIC

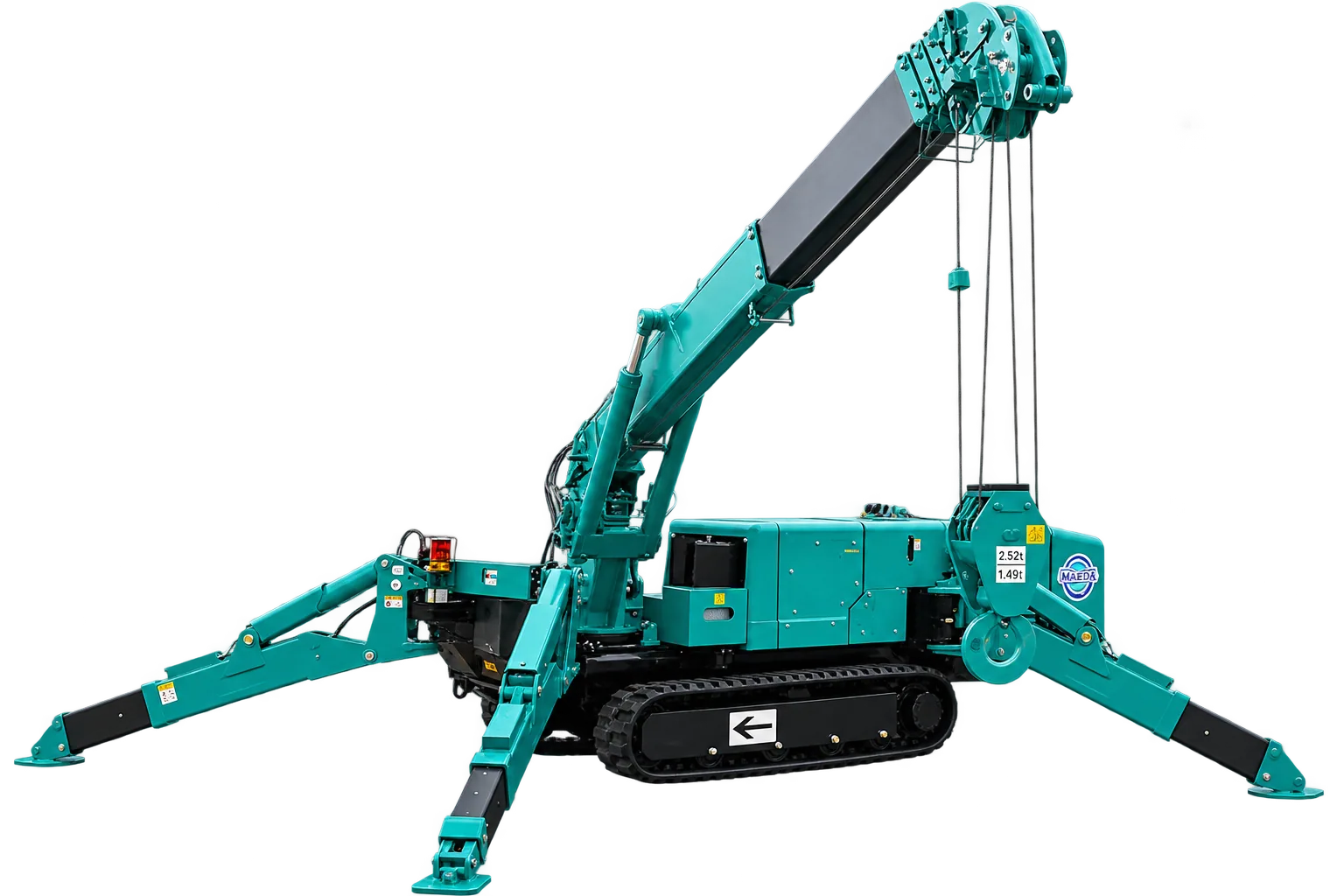

The mid-size Maeda mini crane: 41 feet of hook height and nearly 40 feet of horizontal reach from a machine that still tracks through restricted openings. Dual diesel plus electric power covers outdoor structural picks and indoor finished-space work with one machine.
6,560 lbsMAX CAPACITY
41′ 0″MAX LIFTING HEIGHT
39.8′MAX WORKING RADIUS
8,750 lbsMACHINE WEIGHT
DUALDIESEL / 208-230V ELECTRIC
SPECIFICATIONS
The numbers that decide the job.
Rated capacity applies at base configuration only. Allowable load at your radius, hook height, and outrigger setup is governed by the Maeda load chart. Send us the pick and we'll verify it.
Figures are from the Maeda MC305C-5 technical data sheet (2025). Allowable capacity depends on radius, boom position, and outrigger position (Max, Mid, Min), so CLE verifies every pick against the applicable chart.
Send Us Your Pick →COMPARE THIS MACHINEPut the MC305 side by side with another mini crane, spec for spec.Open the full comparison tool →
PERFORMANCE
Crane capacity6,560 lbs × 8.0′
Max working radius39.8′ × 570 lbs
Max lifting height41′ 0″
Max reach below grade-53.0′ (4 parts of line)
Capacity at radius6,560 lbs @ ~8′ (2.98 t @ 2.5 m) · varies by outrigger setting
DIMENSIONS + WEIGHT
Transport dimensions13′6″ L × 4′2″ W × 5′7″ H
Machine weight8,750 lbs (9,060 lbs w/ electric motor)
Travel ground pressure8.44 PSI (8.73 PSI electric)
Outrigger max extended widthLat 16′12″ × Fr 15′9″ × Rr 15′5″
POWER + CONTROL
EngineYanmar 3TNV80F diesel · 20.4 hp
Electric motor5.5 kW · 3-phase 230 V
Travel speed0 to 1.7 mph
ControlRadio remote control
Indoor useElectric mode, confirm with CLE
SETUP
Outrigger positionsMax / Mid / Min, each with own chart
Searcher hook options1,870 lbs and 3,300 lbs
Outrigger point loadsSimulated by CLE pre-dispatch
WHERE THIS MACHINE WINS
Built for the jobs where access is the problem.
U1Curtain wall + glazingNearly 40 feet of horizontal reach places facade units from inside the property line.
U2Machinery placementSetting equipment on mezzanines and in plant rooms where a forklift stops short and a big crane cannot enter.
U3Steel + misc metals41 feet of hook height covers two-story structural and miscellaneous steel picks.
U4HVAC + mechanicalAir handlers, pumps, and coils lifted into mechanical rooms without demoing walls or roof openings.
U5Historic buildingsRestoration work with controlled floor loading and battery operation in sensitive interiors.
U6Confined courtyardsTracks through tight openings and sets up where the outrigger footprint is the constraint.

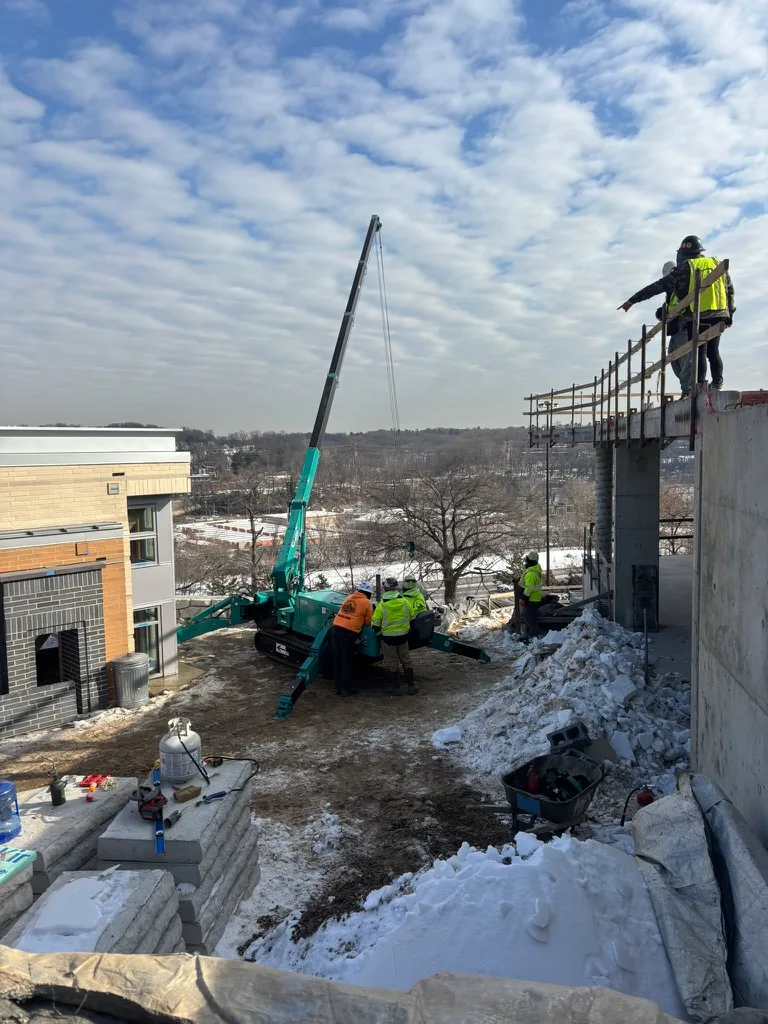

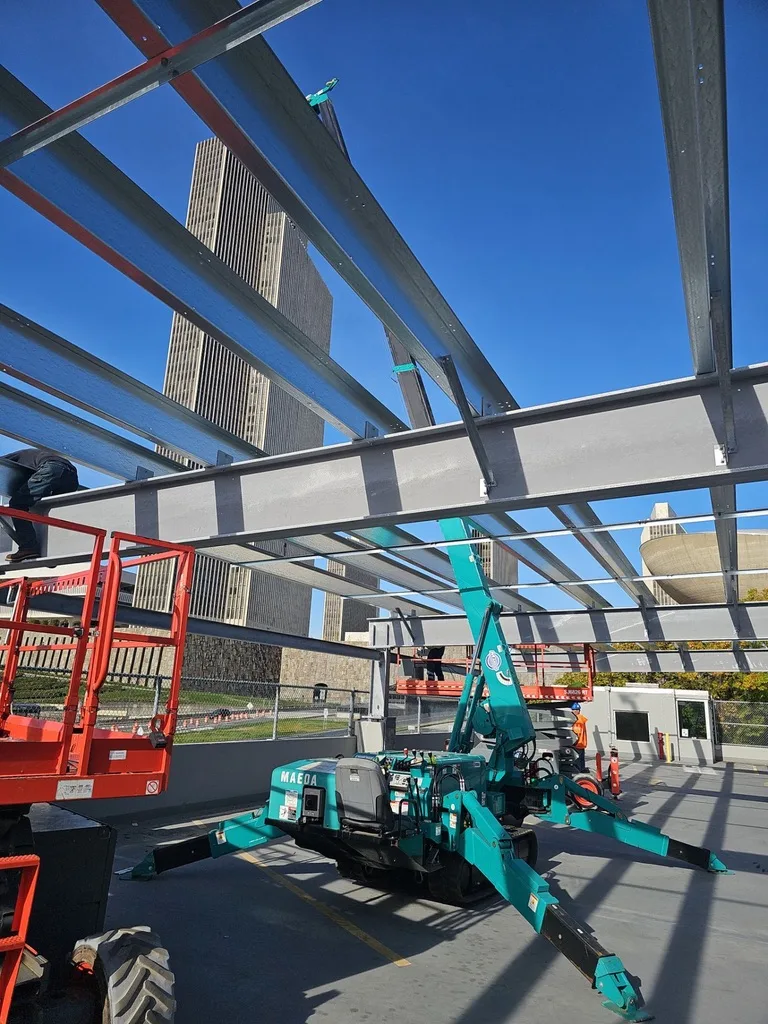

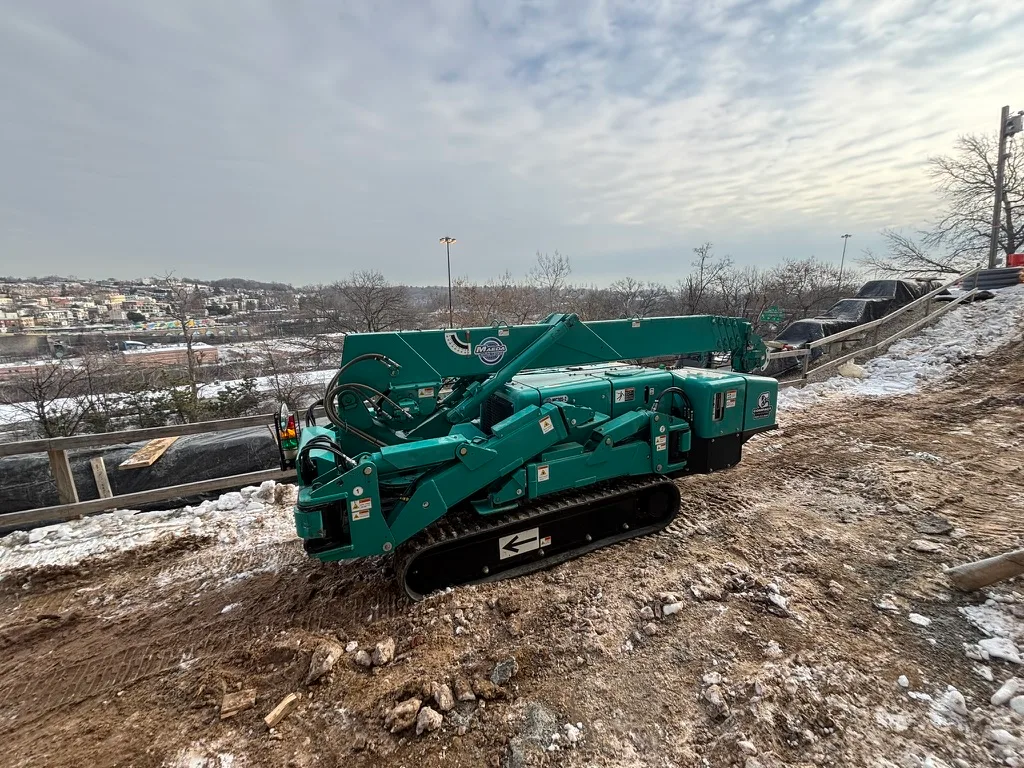

ON THE JOB + DOCUMENTS
See it work. Check the chart.
PDFMC305 data sheetREQUEST FROM CLE↓CHARTMaeda load charts, all outrigger positionsPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTE↓SIMOutrigger Reaction ReportRUN PER-JOB FOR YOUR FLOOR-LOADING LIMITS→GUIDEWill Your Floor Hold a Crane? Floor Loading GuideCLE PLANNING GUIDE · READ ONLINE→POSTWhich Cranes Fit Through a Doorway? Manufacturer Transport DimensionsFROM THE CLE BLOG · READ ONLINE→
HOW IT STACKS UP · ALL 8 MINI CRANES
The MC305 against its siblings.
MAX CAPACITY (LBS)
MAX HOOK HEIGHT
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER
Step up the lineup.
MC285C-2Lightest machine in the fleet · 4,765 lbs →
MC405Diesel / Electric230V 3-PHASE
CAPACITY8,480 lbs
MAX HEIGHT55′ 1″
MAX REACH52′ 5″
WEIGHT · POWER12,440 lbs · Diesel / Electric
SPX532.2Battery Electric110V
CAPACITY5,950 lbs
MAX HEIGHT55′ 10″
MAX REACH48′ 7″
WEIGHT · POWER6,060 lbs · Battery Electric
06 / GET MC305 PRICING
Put the MC305 on your job.
Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Maeda load chart and quote rental or purchase · usually the same business day.
MC305 · AT A GLANCE
Max capacity6,560 lbs × 8.0′
Max lifting height41′ 0″
Max working radius39.8′
Machine weight8,750 lbs
PowerDiesel / 208-230V electric
AvailabilityRent + Buy
Capacity varies with radius, hook height, and outrigger configuration per the Maeda load chart.
