JEKKO

JCX80

JCX TELESCOPIC CRAWLERSALE ONLYLITHIUM BATTERY · ZERO EMISSION

Serious capacity, no outriggers: 17,637 lb8,000 kg of lift, 86.9 ft26.5 m of max height, and 56.8 ft17.3 m of radius, all on zero-emission lithium power. The machine that replaces a street crane on picks the smaller machines cannot touch.

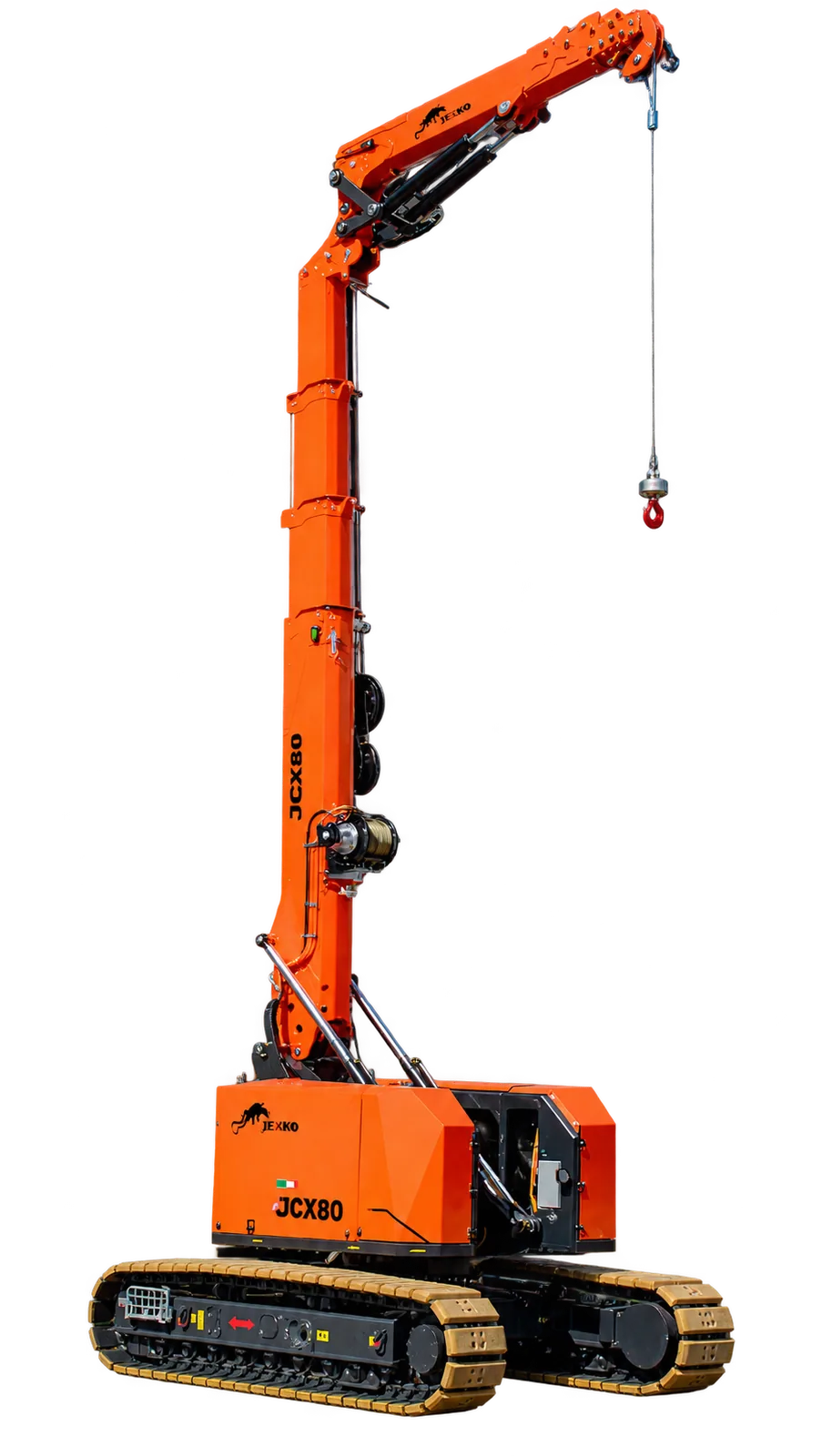

Jekko JCX80 mini crane
17,637 lbMAX CAPACITY
86.9 ftMAX HEIGHT
56.8 ftMAX RADIUS
25,794 lbWEIGHT
LITHIUMELECTRIC · NO OUTRIGGERS
SPECIFICATIONS

The numbers that decide the job.

Rated capacity applies at base configuration only. Allowable load at your radius, height, and boom/jib configuration is governed by the Jekko load chart. Send us the pick and we'll verify it.

Specifications are from the Jekko JCX80 technical data sheet (Rev 2.0). Allowable capacity depends on radius, height, and boom/jib configuration; CLE verifies every pick against the applicable load chart.
Send Us Your Pick →
PERFORMANCE
Max lifting capacity (base configuration)17,637 lb8,000 kg
Max height86.9 ft26.5 m
Max radius56.8 ft17.3 m
Jib capacity6,614 lb3,000 kg · 5 hydraulic sections to 10.7 m
Pick & carry17,637 lb on main boom · hook or winch
TurretMobile · raises boom 3,000 mm · negative angle to -35°
DIMENSIONS + WEIGHT
Weight25,794 lb11,700 kg
Width80.7 in2,050 mm
Height92.1 in2,340 mm
Transport length14 ft 8 in
Track ground pressure11.2 lb/in²
Working modesPass-over · tower · standard
POWER + CONTROL
Power sourceBattery electric · 110V charging
Battery46 V · 400 Ah
Motor power16 kW
ControlRadio remote control
ChargingExternal 48 V charger (3-phase 400 V / 1-phase 230 V)
Indoor useYes, occupied buildings
BOOM + SETUP
Length193.7 in4,920 mm
SetupNo outriggers · works on tracks · pass-over/tower/standard modes
PowerLithium battery · onboard fast charger · works while charging
Fly jib optionsJIB2000GX · JIB1200.3HX · JIB500GR
StabilizersNone · works on tracks
Negative angleTurret to -35° · mobile turret raises boom 3,000 mm
KEY FEATURES

What sets the JCX80 apart.

Works without outriggers
  • Lifts on its tracks in extreme confined spaces
  • Minimal working footprint, no stabilizer set-up
  • Pass-over, tower, and standard modes
Mobile turret
  • Rotates upward to raise the boom 3,000 mm
  • Passes over obstacles others can't clear
  • Negative-angle work down to -35°
Lithium battery power
  • Emission-free, over a full workday of runtime
  • Onboard fast charger, works while charging
  • 8,000 kg on main boom · 3,000 kg hydraulic jib
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Heavy glass + curtain wallOversized IGUs and heavy facade assemblies placed at height from a compact setup.
U2Confined-space constructionNo outriggers and a minimal footprint let it work between obstacles conventional cranes can’t reach.
U3Machinery moving + rigging17,637 lb8,000 kg of capacity for plant equipment, presses, and process machinery.
U4Data centersTransformers, switchgear, and CRAC units set indoors on zero-emission power.
U5Rooftop equipment65 feet of reach places units deep onto a roof from ground level.
U6Indoor industrialFactory and warehouse lifting on lithium power · no fumes in occupied space.
HOW IT STACKS UP · ALL 8 MINI CRANES

The JCX80 against its siblings.

Full comparison tool →
MAX CAPACITY
SPX328 EVO
5,950 lb
SPX527
5,950 lb
SPX532.2
5,950 lb
JCX80
17,637 lb
SPX1280
17,637 lb
MC285C-2
6,210 lb
MC305
6,560 lb
MC405
8,480 lb
MAX HOOK HEIGHT
SPX328 EVO
42 ft 8 in
SPX527
44 ft 3 in
SPX532.2
55 ft 10 in
JCX80
86 ft 11 in
SPX1280
87 ft 7 in
MC285C-2
28 ft 6 in
MC305
41 ft 0 in
MC405
55 ft 1 in
TRANSPORT WEIGHT
SPX328 EVO
5,290 lb
SPX527
7,937 lb
SPX532.2
6,060 lb
JCX80
25,794 lb
SPX1280
15,653 lb
MC285C-2
4,765 lb
MC305
8,750 lb
MC405
12,440 lb
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
06 / GET JCX80 PRICING

Put the JCX80 on your job.

Send the load weight, height, radius, access dimensions, and dates. We'll verify the pick against the Jekko load chart and quote your purchase · usually the same business day.

JCX80 · AT A GLANCE
Max capacity17,637 lb
Max height86.9 ft
Max radius56.8 ft
Weight25,794 lb
PowerLithium battery · zero emission
AvailabilitySale only
Capacity varies with radius, hook height, and boom/jib configuration per the Jekko load chart.
