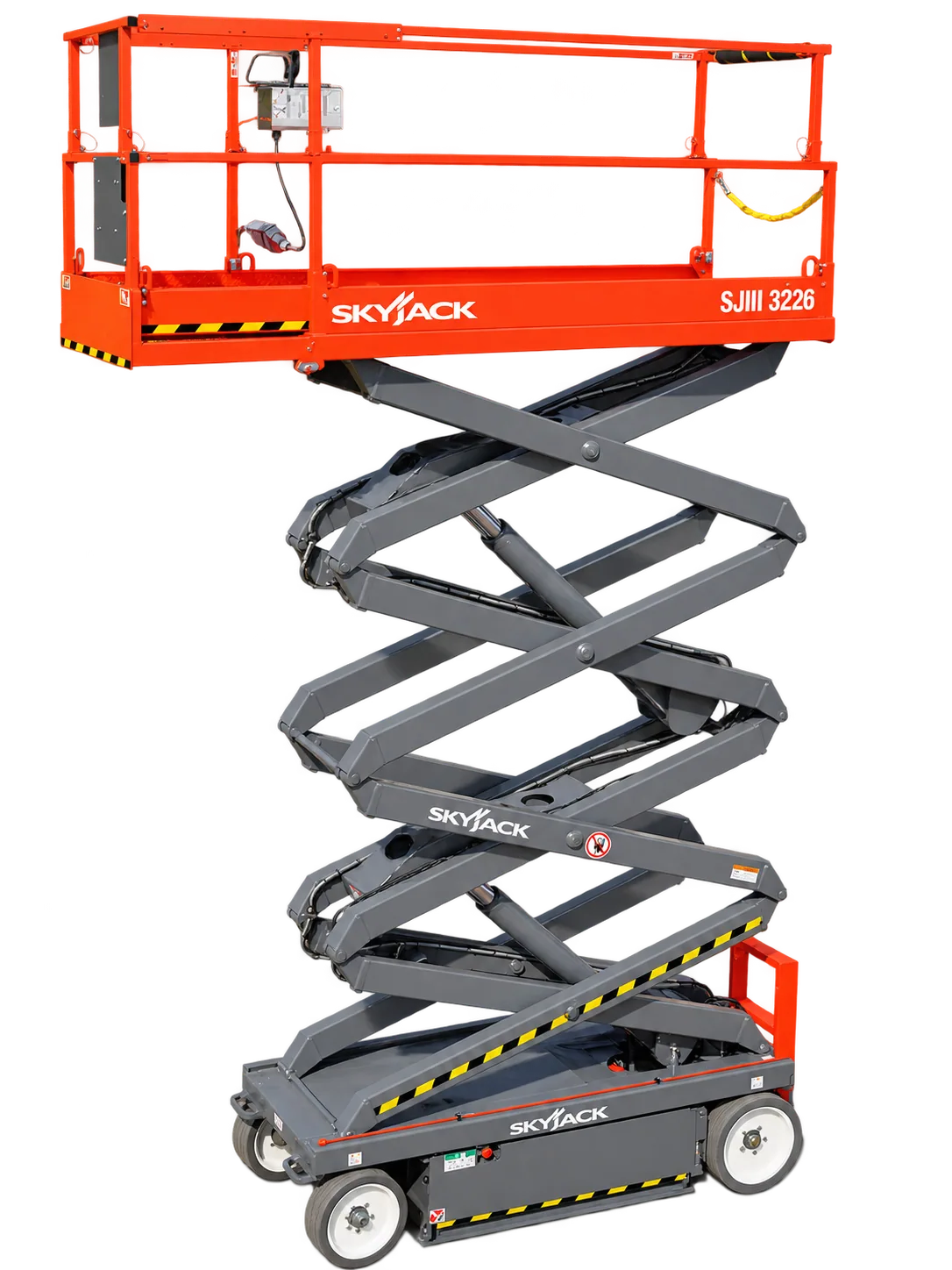

SJIII 3226
ELECTRIC SCISSOR LIFTRENTAL ONLYNON-MARKING TIRES
A 32 in-narrow electric scissor with a 26 ft platform height (32 ft working height), 500 lb capacity, roll-out extension deck, and non-marking tires - drivable at full height for occupied and finished spaces. Bare equipment rental only. Operator not included.
32′WORKING HEIGHT
26′PLATFORM HEIGHT
32″OVERALL WIDTH
500 lbPLATFORM CAPACITY
4,135 lbWEIGHT
SPECIFICATIONS
The numbers that decide the job.
Platform load and floor loading govern where this machine can work. These figures are from the Skyjack SJIII 3220/26 brochure for this exact model.
Specifications are from the Skyjack SJIII 3220/26 tear sheet (NA/ENG/01/2019), SJIII 3226 column, page 2; standard features from page 1. Skyjack notes that capacities and machine weights may differ when options are added; CLE confirms the configuration of the unit with your quote.
Send Us Your Pick →PLATFORM + CAPACITY
Working height32 ft
Raised platform height26 ft
Lowered platform height45 in
Capacity (overall)500 lb
Distributed capacity (main platform)250 lb
Distributed capacity (extension deck)250 lb
Maximum persons2
Platform (inside)28 in x 84 in
Roll-out extension deck3 ft
DIMENSIONS + WEIGHT
Overall width32 in
Overall length91.5 in
Stowed height (rails up)84.7 in
Stowed height (rails down)70.6 in
Wheelbase69 in
Ground clearance (stowed)3.5 in
Weight4,135 lb
DRIVE + SITE
Power24V DC electric
Drive speed (stowed / raised)2.4 mph / 0.7 mph
Maximum drive heightFull height
Gradeability30%
Turning radius (inside / outside)50 in / 108 in
Tires16x5x12 solid · non-marking
Overall floor load (rated)235 psf
Local floor load (rated)130 psi
Wind rating28 mph
KEY FEATURES
What sets the SJIII 3226 apart.
32 inches wide
- Rolls through a standard 36-inch doorway with room to spare - no disassembly, no removing door frames, no rigging.
Electric drive, indoor clean
- Battery-electric power means zero exhaust and quiet operation in occupied buildings, cleanrooms, and finished space.
500 lb of platform
- 26 ft of platform height and a 500 lb platform rating puts workers and tools at ceiling level in one trip.
WHERE THIS MACHINE WINS
Built for the work above finished floors.
01Interior fit-out and MEP overheadDuctwork, conduit, sprinkler, and cable tray at ceiling height, working off a stable full-size platform.
02Warehouse maintenance between rackingThe 32-inch frame tracks down pallet-rack aisles that a standard 46-inch scissor can’t enter.
03Occupied buildingsQuiet electric drive and non-marking tires for hospitals, offices, schools, and retail that stay open while you work.
HOW IT STACKS UP · AERIAL LIFT FLEET
The SJIII 3226 against the tracked lifts.
WORKING HEIGHT
PLATFORM CAPACITY (LBS)
MACHINE WEIGHT (LBS)
Working heights and platform ratings are manufacturer figures at base configuration. The right lift depends on floor loading, terrain, and access - CLE checks all three.
NEED MORE HEIGHT OR ROUGH GROUND?
More from the fleet.
Hyrax 27.41Outdoor terrain, outreach, and more height →
Hyrax 50.52Diesel
CAPACITY730 lbs platform
MAX HEIGHT52.8′
MAX REACH34.4′
WEIGHT · POWER11,222 lbs · Diesel
06 / GET SKYJACK SJIII 3226 PRICING
Put the SJIII 3226 on your job.
Send the working height, floor type, door and elevator dimensions, and dates. We’ll confirm the SJIII 3226 fits the building and quote the bare rental · usually the same business day.
SKYJACK SJIII 3226 · AT A GLANCE
Working height32′
Platform height26′
Overall width32″
Platform capacity500 lb
Machine weight4,135 lb
PowerBattery electric
Verify floor loading and elevator capacity before delivery. Bare equipment rental only. Operator not included.
