HOME/TRACKED AERIAL LIFTS/HYRAX 50.52
HYRAX

50.52

TRACKED AERIAL LIFTAUTHORIZED HYRAX DEALER · EASTERN PARENT + BUYSELF-LEVELING · NO OUTRIGGERSDIESEL

The big Hyrax. A three-section boom on the self-leveling 50-series chassis takes the basket to a 52-foot working height with up to 730 lbs on board. No outriggers to set, tracked traction on rough ground, and Kubota diesel power.

Request PricingSpecificationsRequest Spec Sheet →

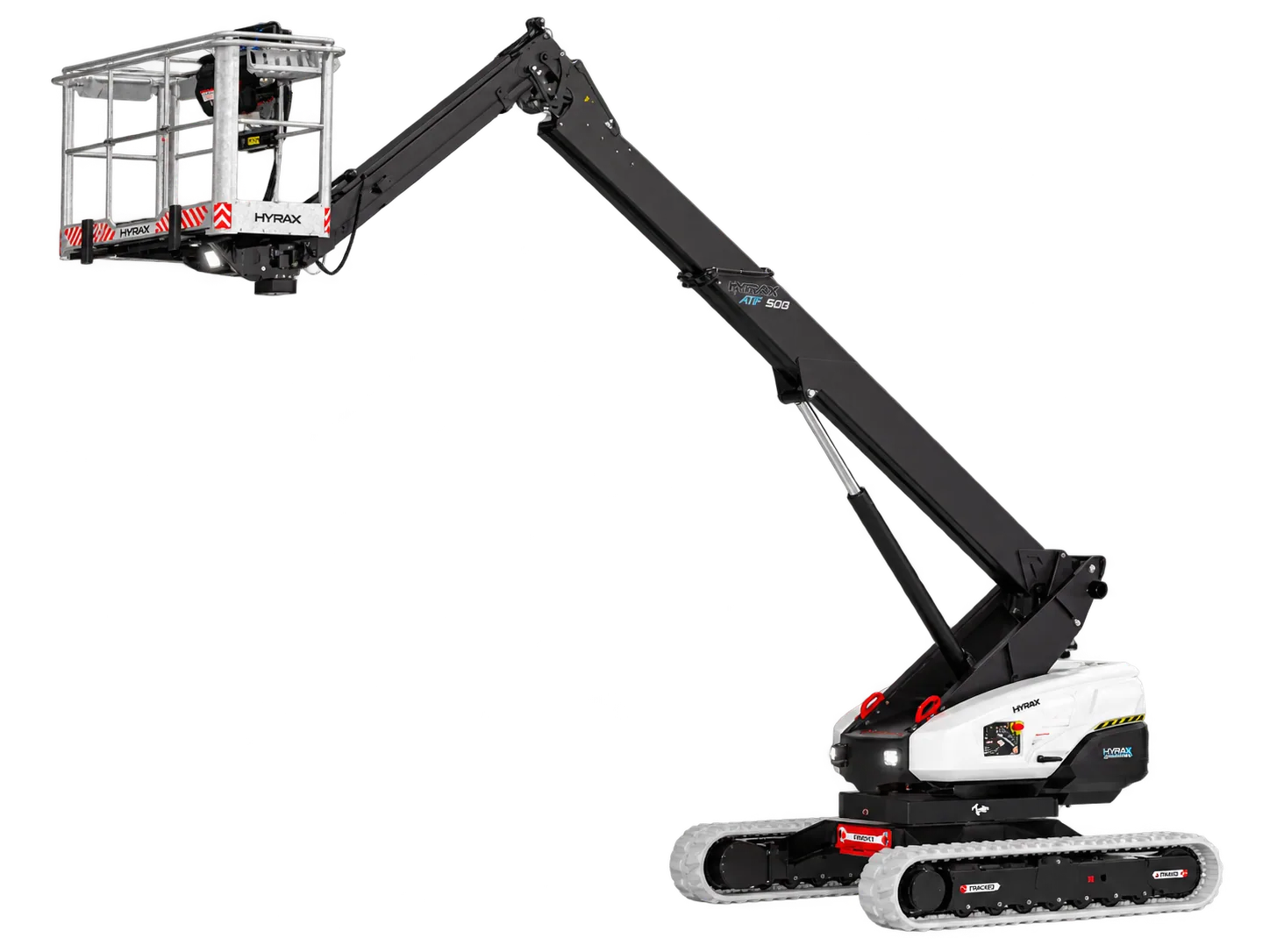

Hyrax 50.52 tracked aerial lift
52.8 ftMAX WORKING HEIGHT
34.4 ftMAX HORIZONTAL REACH
730 lbsPLATFORM CAPACITY
11,222 lbsTOTAL MASS
TRACKEDCRAWLER UNDERCARRIAGE
SPECIFICATIONS

The numbers that decide the job.

Published figures apply at base configuration. Available outreach depends on basket load and lift position per the Hyrax working envelope. Send us the work point and we'll verify it.

Figures are from the Hyrax ATD 50.16/50.52 operation manual v1.1.5. Reach varies with platform load per the working envelope (176 to 730 lbs by position), so CLE verifies every work point.
Send Us Your Pick →
PERFORMANCE
Working height52.8 ft
Platform height46.3 ft
Horizontal reach34.4 ft (varies with load)
Platform capacity730 lbs · 176 to 730 lbs by position
Max drive height52.8 ft
RotationPlatform 180° · jib 180° · turntable 360°
DIMENSIONS + WEIGHT
Transport dimensions16.1′ L × 7.2′ W × 7.5′ H
Total mass11,222 lbs (excl. options)
Ground clearance13.8″
Platform size70.9″ × 31.5″
Tracks94.9″ × 11.8″ × 18.5″
POWER + DRIVE
EngineKubota 18.5 kW diesel
Drive speed1.43 mph transport · 0.25 at height
Gradeability46% (25°) in direction of travel
Automatic leveling15° both axes
Hydraulics3,260 psi · proportional controls
Fuel capacity12.2 gal
SAFETY
Load protectionLoad + moment sensing, electronic cutout
Max wind speed28 mph
Max people2 + tools and materials
OUTREACH vs. HEIGHT

Working height is the start of the conversation.

An aerial lift's outreach shrinks as the basket climbs, and basket capacity can change with configuration. Drag the slider to see the principle, then let us map your work point against the Hyrax 50.52 working envelope.

Schematic is illustrative only, not the Hyrax 50.52 working envelope. Never plan work from this diagram.
48′ 0″WORKING HEIGHT · ILLUSTRATIVE
Horizontal outreach10 ft
5 ft34′ 5″ max reach
100%SELF-LEVELINGThe 50-series chassis levels itself continuously on uneven ground.
730 LBSBASKET CAPACITYRoom for two workers plus tools and material.
3-PARTTELESCOPIC BOOMGoes higher and farther than the rest of the 50 series.
24 HPKUBOTA DIESELATD drivetrain; electric variants not yet available in North America.
SELF-LEVELING CHASSIS

No outriggers.
No setup time.

Same idea as the 27.41, scaled up: the 50-series chassis is 100% self-leveling, so there are no outriggers to set, no cribbing, and no spread footprint to plan around.

A three-section telescopic boom takes working height to 52 feet 10 inches with up to 730 lbs in the basket, powered by a 24 hp Kubota diesel.

Figures from Hyrax published materials and dealer listings, pending confirmation. The working envelope varies with basket load and lift position. CLE verifies before dispatch.
WHERE THIS MACHINE WINS

Built for the jobs where access is the problem.

U1Facade + curtain wall accessGlazing and envelope crews working the building face without scaffold or swing stage.
U2Atriums + high interiorsIndoor work at height over lobbies, atriums, and production floors.
U3Slopes + soft groundTracked undercarriage climbs grades and crosses lawns, gravel, and mud.
U4Over-obstacle reachUp-and-over geometry reaches work points behind parapets and rooftop equipment.
U5Historic buildingsLight footprint and precise positioning around sensitive structures.
U6Tight-access sitesNarrow transport width passes gates and doorways a truck-mounted lift cannot.
ON THE JOB + DOCUMENTS

See it work. Check the chart.

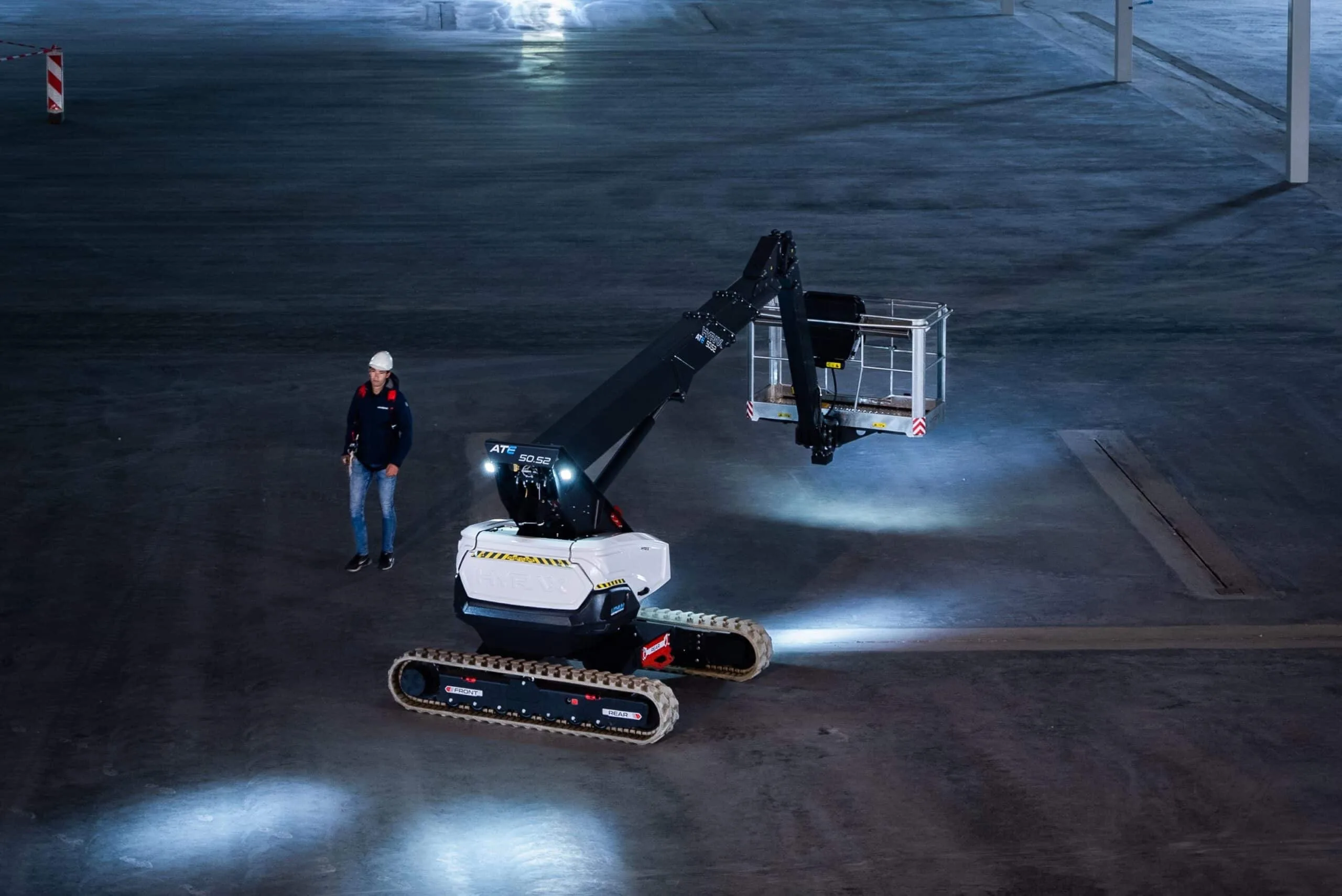

Hyrax 50.52 tracked aerial lift on a customer jobsite, photo 1 of 3

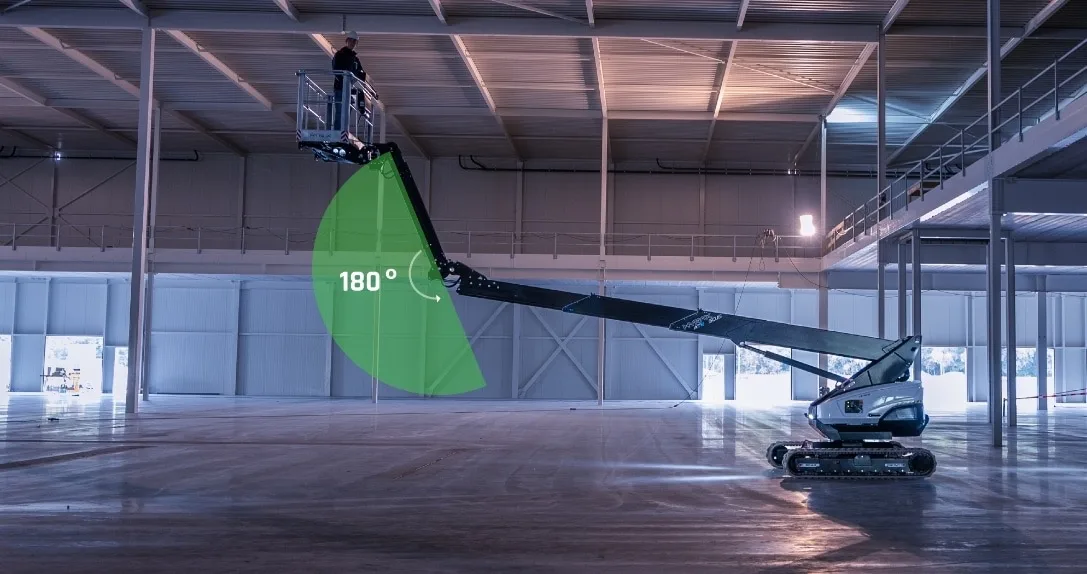

Hyrax 50.52 tracked aerial lift on a customer jobsite, photo 2 of 3

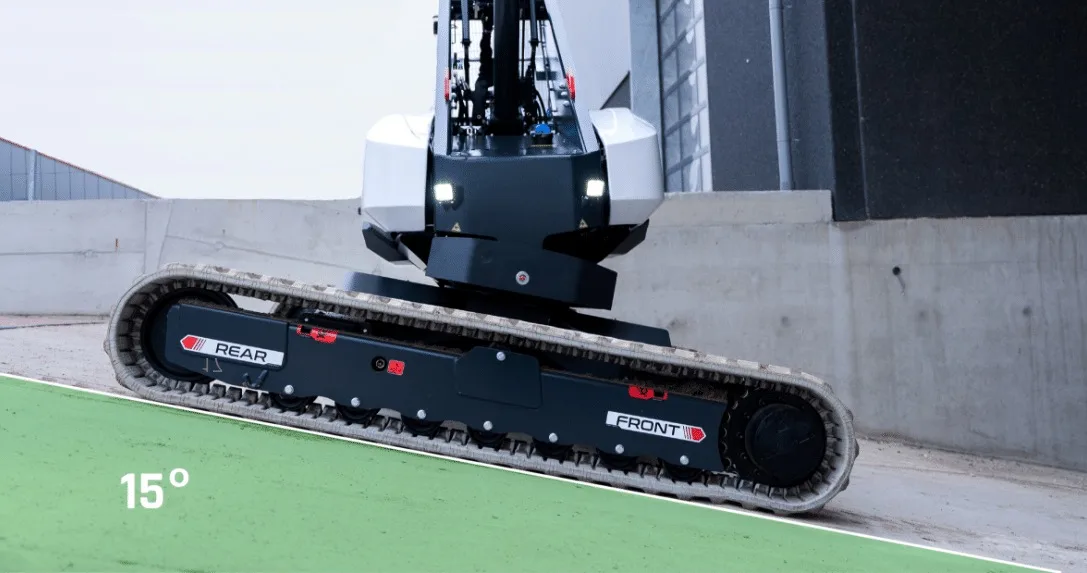

Hyrax 50.52 tracked aerial lift on a customer jobsite, photo 3 of 3
PDFATD 50.16 / 50.52 operation manualREQUEST FROM CLE↓ENVWorking range diagramREACH BY PLATFORM LOAD · VERIFIED BY CLE↓SIMGround pressure reviewRUN PER-JOB FOR YOUR SURFACE↓GUIDETracked aerial lift guide: Hyrax, spider lifts, and boom lifts compared.CLE PLANNING GUIDE · READ ONLINE→POSTTransporting a Hyrax: Tracked Lift Access and Trailer PlanningFROM THE CLE BLOG · READ ONLINE→GUIDEBattery, diesel, or dual power: which machine fits which building.CLE PLANNING GUIDE · READ ONLINE→
HOW IT STACKS UP · BOTH TRACKED AERIAL LIFTS

The Hyrax 50.52 against its siblings.

Full comparison tool →
PLATFORM CAPACITY (LBS)
Hyrax 27.41
600
Hyrax 50.52
730
WORKING HEIGHT
Hyrax 27.41
41′ 4″
Hyrax 50.52
52.8 ft
TRANSPORT WEIGHT (LBS)
Hyrax 27.41
6,572
Hyrax 50.52
11,222
Rated capacities apply at base configuration only. Allowable load depends on radius, boom position, and outrigger setup; CLE verifies every pick against the manufacturer load chart.
IF THE PICK IS BIGGER

Step up the lineup.

View the full fleet →
07 / GET HYRAX 50.52 PRICING

Put the Hyrax 50.52 on your job.

Send the working height, outreach, basket load, access dimensions, and dates. We'll verify the pick against the Hyrax working envelope and quote rental or purchase · usually the same business day.

Call (833) CLE-RENTRequest a Quote
HYRAX 50.52 · AT A GLANCE
Working height52.8 ft
Horizontal reach34.4 ft
Platform capacity730 lbs
Total mass11,222 lbs
PowerKubota diesel
AvailabilityRent + Buy
Outreach and basket capacity vary with height and configuration per the Hyrax working envelope.
