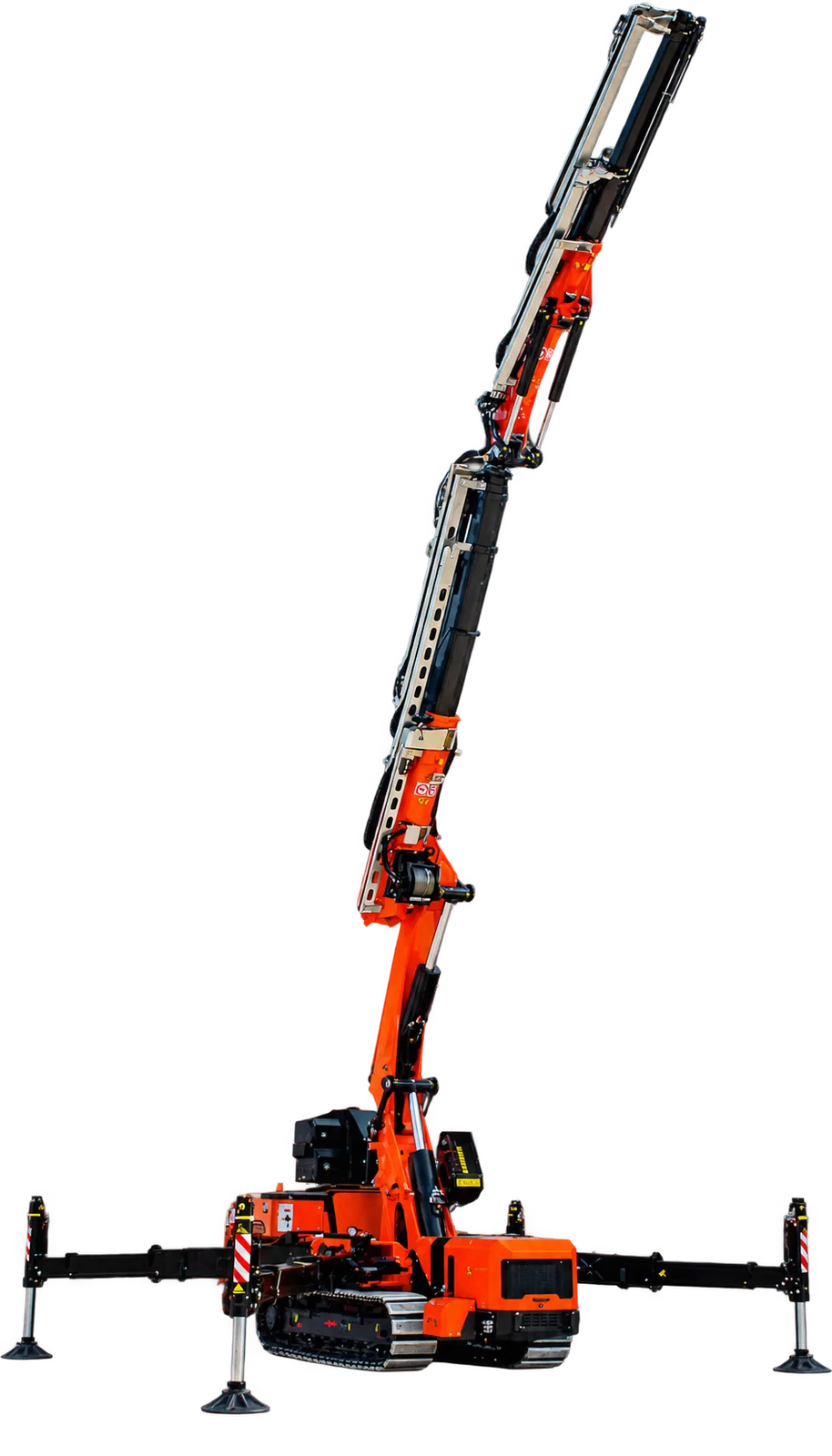

JF545.2
ARTICULATED CRAWLER CRANERENT + BUYBI-ENERGY
Up to 34,200 lb of articulated lifting on a compact crawler. A 7,700 lb self-removable counterweight eases transport and tight-space rotation, and Bi-Energy pairs a high-efficiency diesel with an electric power pack for 100% electric operation indoors.
SPECIFICATIONS
Jekko JF545.2 at a glance.
Max lifting capacity (base)34,200 lb
Max tip height102′ 0″
Max working radius92′ 6″
Transport dimensions (L×W×H)19′2″ × 6′0″ × 9′3″
Operating weightDry ~30,269 lb · ~37,986 lb w/ full CW
Power sourceBi-Energy (diesel + electric)
Jekko JF545.2 data sheet PDFREQUEST FROM CLEJekko load charts, all configs CHARTPROVIDED AND VERIFIED BY CLE WITH EVERY QUOTECompatibility + setup notes SPECMATCHED TO YOUR MACHINE AND SITE BY CLEArticulated crawler crane guide: reach over, under, and around. GUIDECLE PLANNING GUIDE · READ ONLINEOutrigger pads and ground protection: sizing the pad from the reaction, not the guess. GUIDECLE PLANNING GUIDE · READ ONLINE
Rated capacity applies at base configuration only. Allowable load at your radius, height, and outrigger setup is governed by the Jekko load chart - send us the pick and we will verify it.
Capacity varies with radius, height, and outrigger setup per the Jekko load chart.
