Nine Jekko and Maeda crawlers that pass through standard doorways, ride freight elevators, and set up on finished floors, then lift up to 17,637 lbs at hook heights to 87′ 7″. Lithium, diesel, and dual-power machines, all delivered from Pottstown, PA.
RENT OR BUY

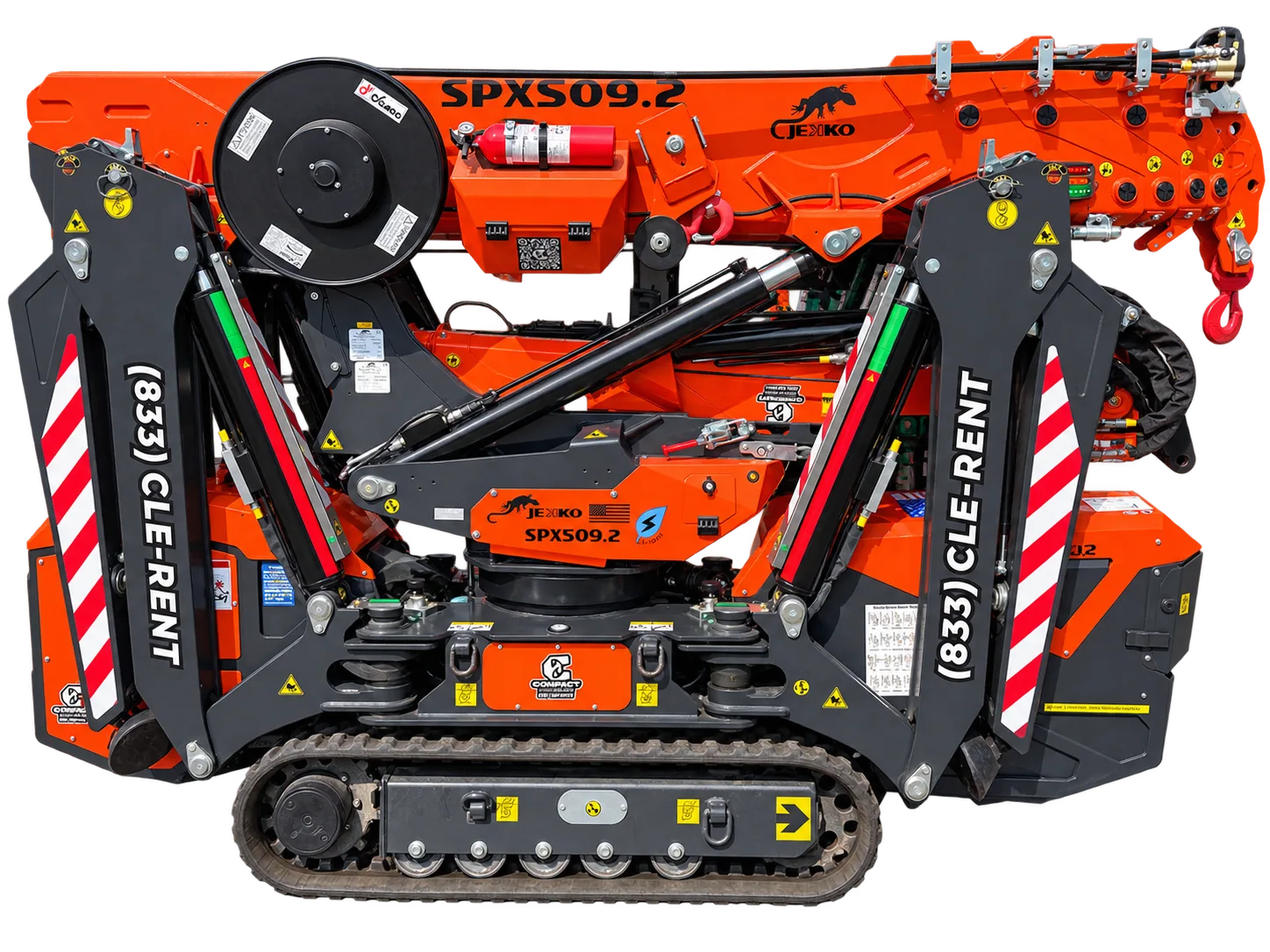

1,950 lb derate rating. SPX509.2 technical data sheet pending.
WIDTH · 2′ 6″
WIDTH · 2′ 5″
WIDTH · 3′ 7″
WIDTH · 2′ 6″
WIDTH · 3′ 4″
WIDTH · 4′ 9″
WIDTH · 2′ 5.5″
WIDTH · Confirm
WIDTH · Confirm
Short-duration picks, one-off projects, or trying a crawler before committing. Bare rental, delivered and picked up from Pottstown, PA.
New Jekko units as an authorized Jekko dealer, new Maeda units, plus fleet trade-ins. Third-party financing available, and rental credit can apply toward purchase.
Send the load weight, height, and access constraints; we verify the pick against the load chart and quote delivery with the machine.
Doorways, indoor operation, outrigger configurations, and the 1,950 lb question.
A compact tracked crane that stabilizes on outriggers for lifting. Built for restricted-access applications where a conventional crane can't fit or set up efficiently.
Several models have extremely narrow travel widths, but suitability depends on the exact model and configuration. Door width, height, threshold, turning radius, and floor capacity all get checked before delivery. Try our Fit Check tool.
Yes: no diesel exhaust and substantially less noise. The SPX650 adds onboard 110/230V charging and can keep working while connected to an approved power source.
No. Maximum capacity applies only at a short radius in an approved configuration. Capacity decreases as the boom extends and the load moves farther from the crane.
Many models support multiple approved outrigger positions. The stability system identifies the actual configuration and provides the corresponding working area and capacity.
Certain models and configurations allow limited pick-and-carry: Jekko lists up to roughly 1,750 lbs for the SPX650 under approved conditions.
Under federal OSHA construction rules, equipment rated 2,000 lbs or less is excluded from the crane-operator certification requirement, though operators must still be trained. This applies most clearly to a machine officially manufactured and documented at 1,950 lbs: OSHA has stated that simply restricting a crane originally rated above 2,000 lbs does not automatically exempt it. See our NCCCO guide.
Load weight, pickup radius, placement radius, required hook height, access dimensions, ground conditions, available outrigger area, and any required attachments.
A compact crawler crane that sets four outriggers to create a stabilized lifting platform. Its narrow travel dimensions reach areas conventional cranes can't.

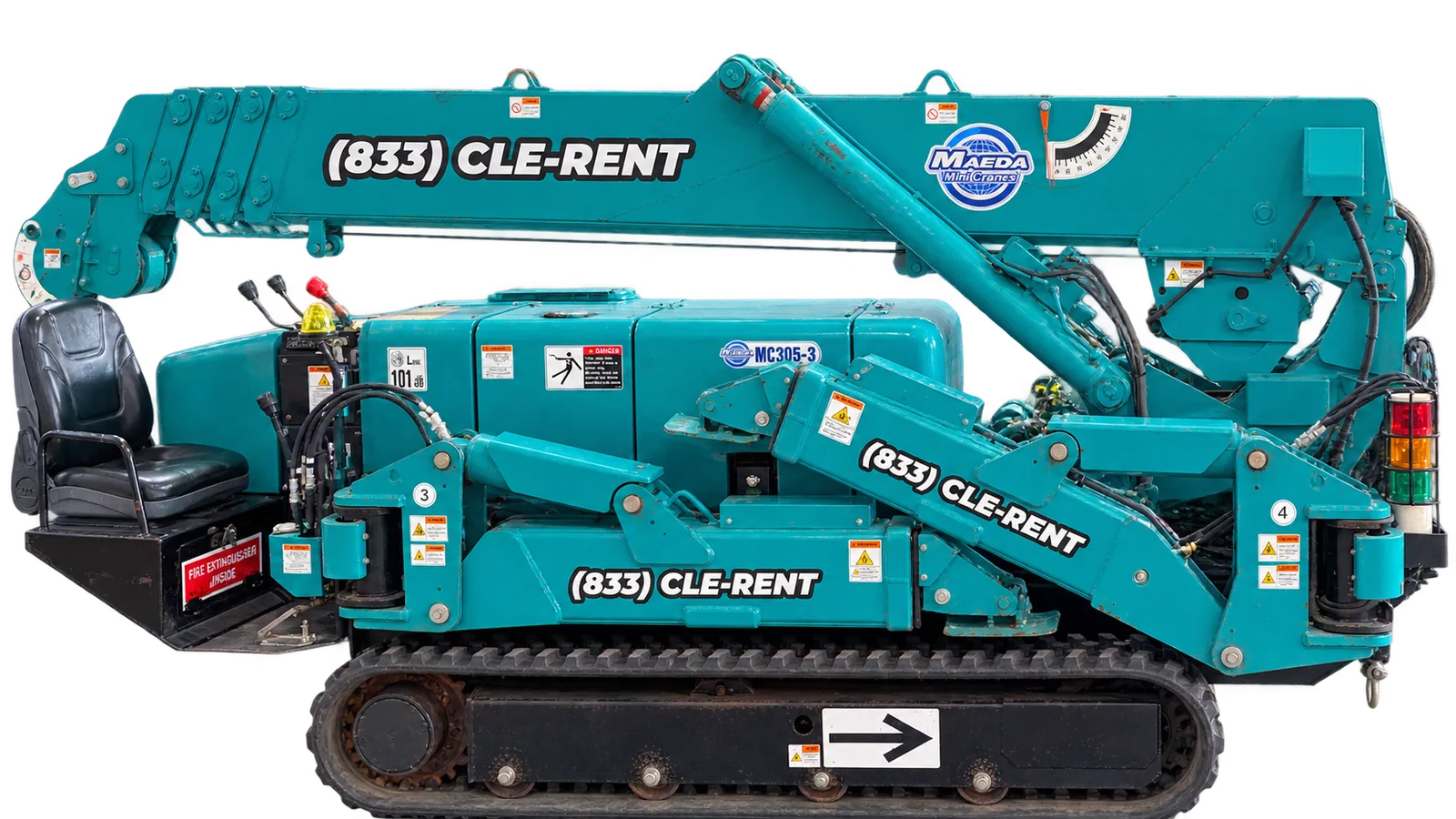

Roughly 6,210 lbs (MC285), 6,560 lbs (MC305), and 8,480 lbs (MC405): maximum ratings at short radii. Actual capacity always comes from the load chart.
Yes. CLE's MC285C-2, MC305C-2, and MC405C-2 units are dual-power: diesel operation plus electric-motor operation when appropriate electrical service is available.
AUTHORIZED HYRAX DEALER
